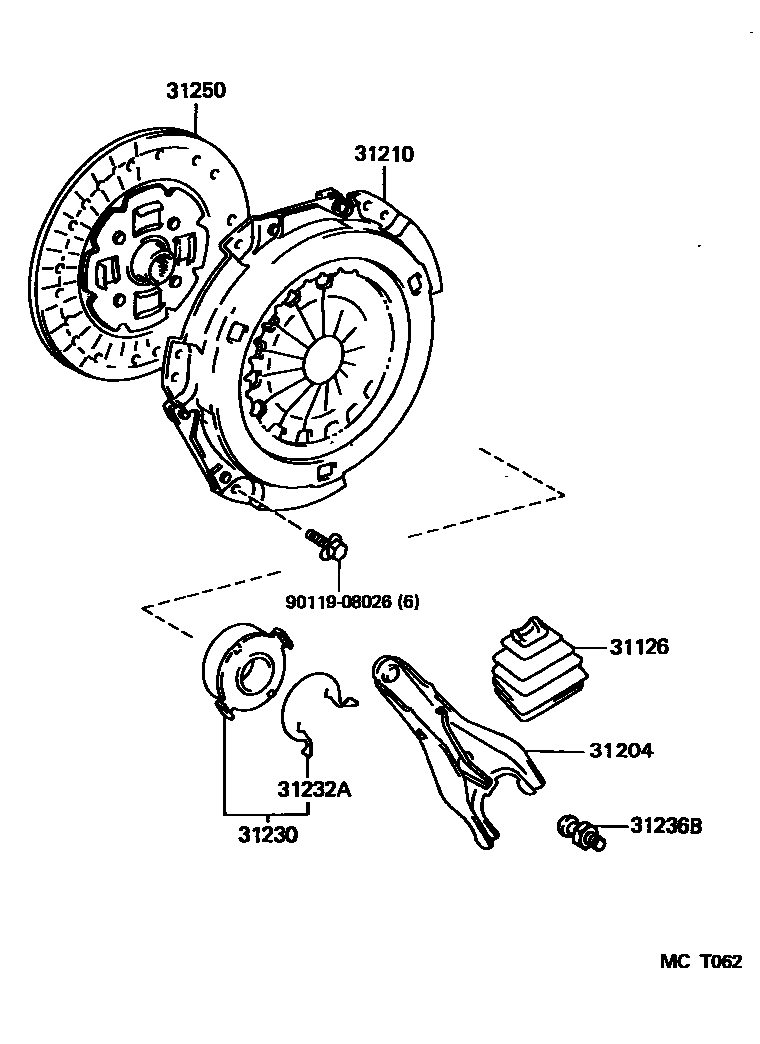

Toyota COROLLA SPRINTER — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAE102..5F199402-199605

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iAE102..5F199402-199605

31210COVER ASSY, CLUTCH

main31210-12151iAE102..5F199402-199503

main31210-12152iAE102..5F199503-199605

31230BEARING ASSY, CLUTCH RELEASE

main31230-12170iAE102..5F199402-199605

sub31230-12171

31232ACLIP, RELEASE BEARING HUB

main31232-12050iAE102..5F199402-199605

TYPE A:REFER TO ILLUSTRATION

main31232-12060iAE102..5F199402-199605

TYPE B:REFER TO ILLUSTRATION

main31232-12070iAE102..5F199402-199605

TYPE C:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-12020iAE102..5F199402-199605

31250DISC ASSY, CLUTCH

main31250-12320iAE102..5F199402-199505

main31250-12360iAE102..5F199505-199605

sub31250-12361

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section
