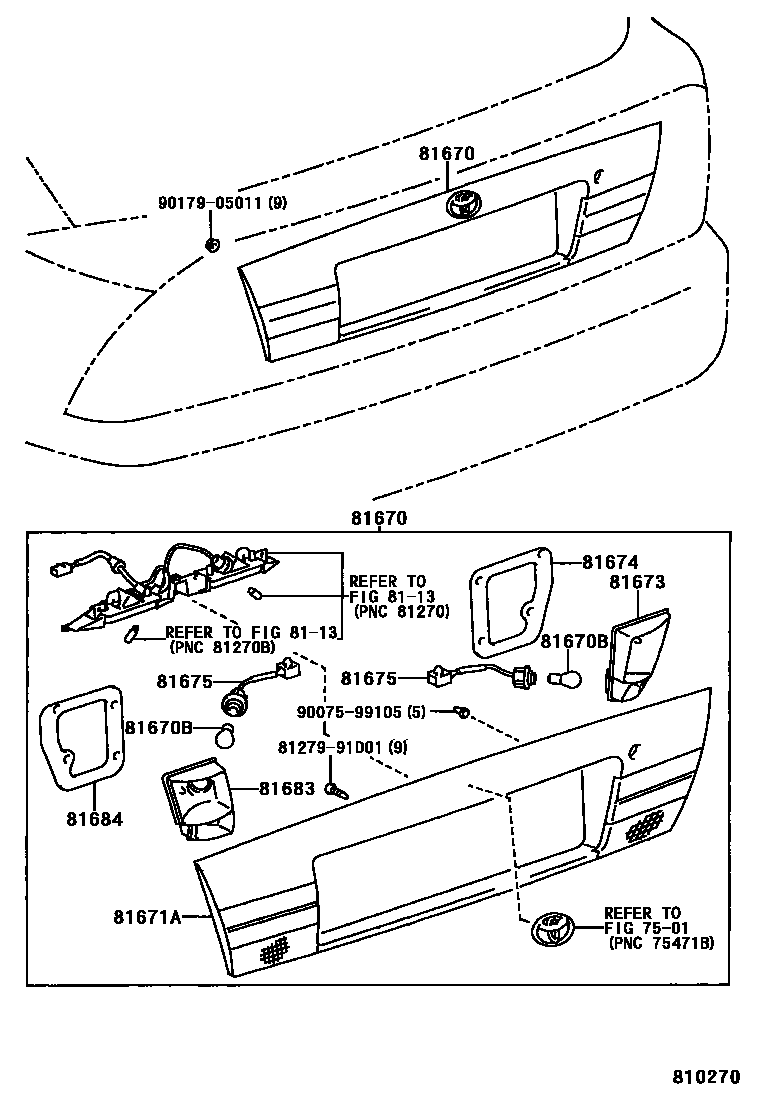

Toyota COROLLA SPRINTER — BACK UP LAMP

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

81670LAMP ASSY, BACK-UP, RH

main81670-12080i199402-199605

81670BBULB(FOR BACK-UP LAMP)

main99132-11210×2i199402-199605

12V 21W

81671ALENS & BODY, BACK-UP LAMP

main81671-12080i199402-199605

81673BODY, BACK-UP LAMP, RH

main81673-12060i199402-199605

81674GASKET, BACK-UP LAMP BODY, RH

main81672-12060i199402-199605

81675SOCKET & WIRE, BACK-UP LAMP

main81678-12060×2i199402-199605

81683BODY, BACK UP LAMP, LH

main81676-12070i199402-199605

81684GASKET, BACK UP LAMP BODY, LH

main81674-12060i199402-199605

8127991D01WASHER, SIDE TURN SIGNAL LAMP

main81279-91D01

9007599105

main90075-99105

9017905011

main90179-05011

13 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota COROLLA SPRINTER

This section contains 13 genuine Toyota parts for the BACK UP LAMP system of the Toyota COROLLA SPRINTER. Key components include: EMBLEM & NAME PLATE (EXTERIOR & INTERIOR), REAR LICENSE PLATE LAMP, LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS & BODY, BACK-UP LAMP.
