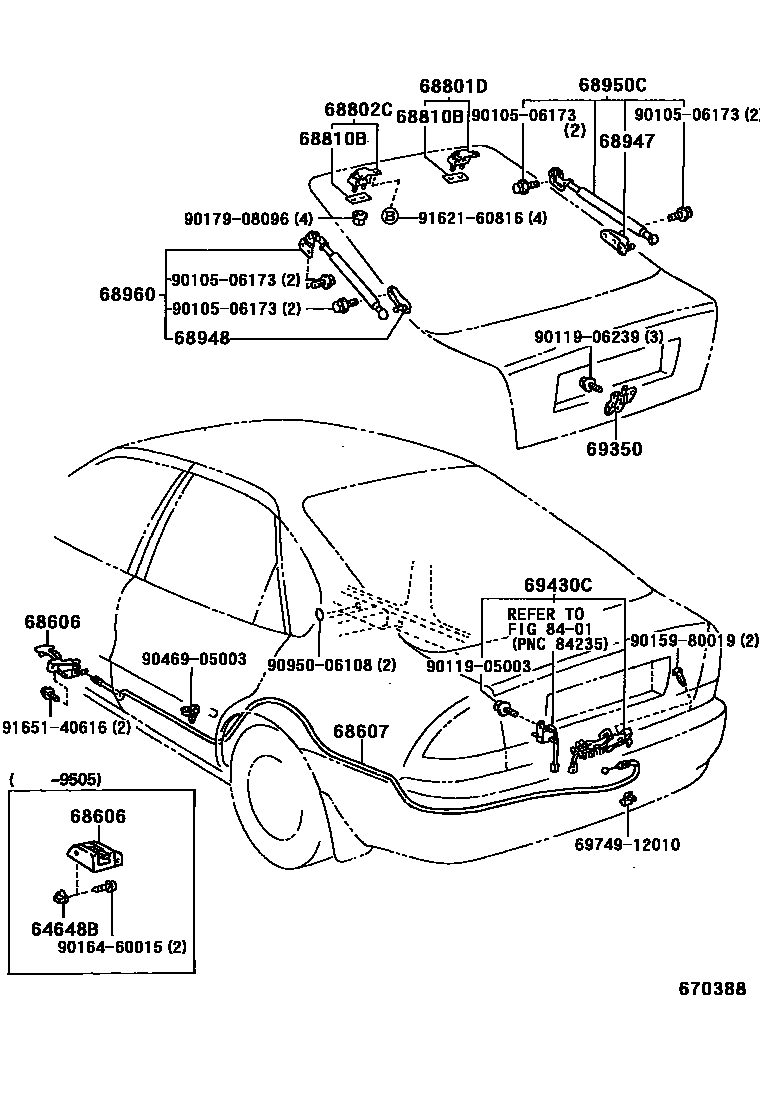

Toyota COROLLA SPRINTER — BACK DOOR LOCK & HANDLE

64648BGROMMET, BACK DOOR LOCK OPENER

main64648-12010×2iAE102199402-199505

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-20160iAE102199505-199508

main64606-20161iAE102199508-199605

main64640-12090-03iAE102199402-199505

SHADOW GRAY,TRIM1#

sub64640-12091

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-12680iAE102199402-199505

main64607-12681iAE102199505-199605

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-12080iAE102199402-199605

68802CHINGE SUB-ASSY, BACK DOOR, LH

main68801-12080iAE102199402-199605

68810BPAD, BACK DOOR HINGE

main68838-12020×2iAE102199402-199605

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-12040iAE102199402-199605

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-12040iAE102199402-199605

68950CSTAY ASSY, BACK DOOR, RH

main68950-19875iAE102199402-199605

68960STAY ASSY, BACK DOOR, LH

main68960-19565iAE102199402-199605

69350LOCK ASSY, BACK DOOR

main69350-12190iAE102199402-199605

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-12301iAE102199402-199605

sub69430-12311

8401

6974912010CLAMP, FRONT DOOR LOCK LINK

main69749-12010

9010506173

main90105-06173

9011905003

main90119-05003

9011906239

main90119-06239

9015980019

main90159-80019

9016460015

main90164-60015

9017908096

main90179-08096

9046905003

main90469-05003

9095006108

main90950-06108

9162160816

main91621-60816

9165140616

main91651-40616

24 parts on this diagram · 1 diagram in section
