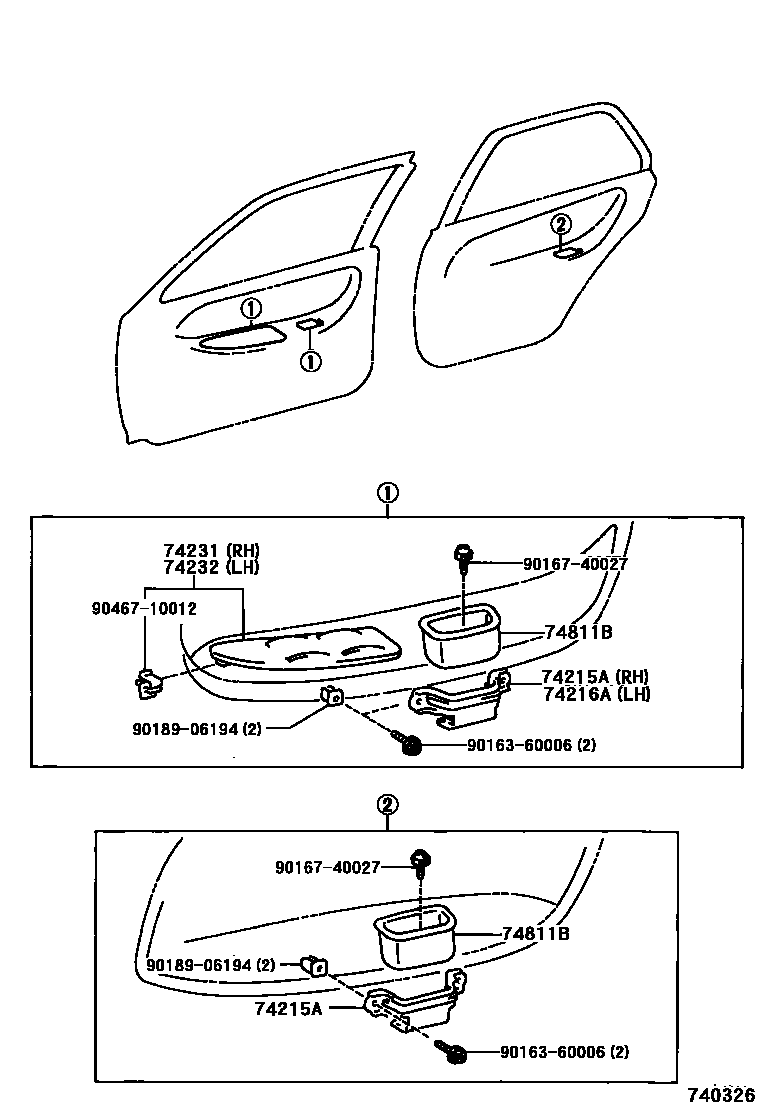

Toyota COROLLA SPRINTER — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR

74215ABASE, DOOR ARMREST RH

main74215-12050×2iAE102199402-199605

74216ABASE, DOOR ARMREST, LH

main74215-12050×2iAE102199402-199605

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12130-P0iAE102199402-199505

SHADOW GRAY,TRIM1#

main74231-12131-P0iAE102199505-199605

SHADOW GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12110-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

74811BHANDLE, DOOR PULL

main74811-12060-P0×4iAE102199402-199605

SHADOW GRAY,TRIM1#

9016360006

main90163-60006

9016740027

main90167-40027

9018906194

main90189-06194

9046710012

main90467-10012

9 parts on this diagram · 2 diagrams in section
