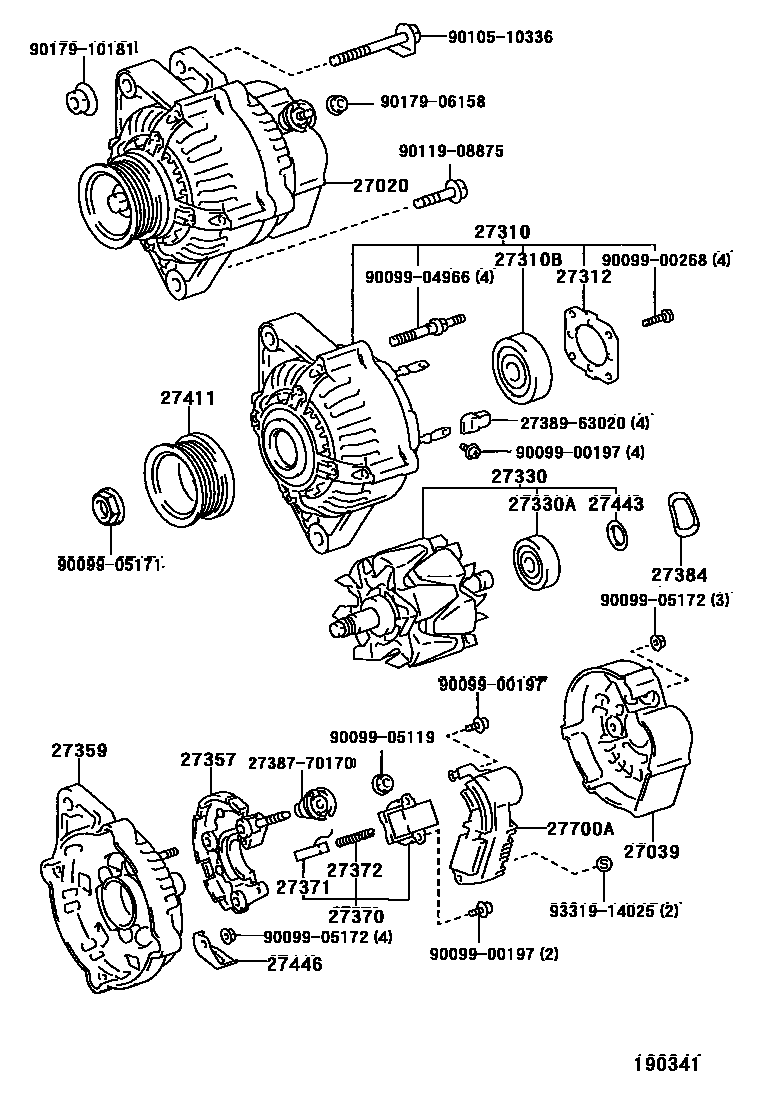

Toyota COROLLA SPRINTER — ALTERNATOR

27020ALTERNATOR ASSY

main27060-15080i7AFE..AE102199402-199505

12V 70A

main27060-15130i7AFE..AE102199505-199605

12V 70A

27039COVER, ALTERNATOR REAR END

main27039-73020i7AFE..AE102199402-199605

sub27039-16380

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15170i7AFE..AE102199402-199605

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i7AFE..AE102199402-199605

27312PLATE, RETAINER

main27312-70200i7AFE..AE102199402-199605

27330ROTOR ASSY, ALTERNATOR

main27330-72101i7AFE..AE102199402-199508

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i7AFE..AE102199402-199605

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i7AFE..AE102199402-199605

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15170i7AFE..AE102199402-199601

main27359-15171i7AFE..AE102199601-199605

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i7AFE..AE102199402-199605

27371BRUSH, ALTERNATOR

main27371-70300×2i7AFE..AE102199402-199605

27372SPRING, ALTERNATOR BRUSH

main27372-63020×2i7AFE..AE102199402-199605

sub27372-87501

27384WASHER

main27384-16380i7AFE..AE102199601-199605

27411PULLEY, ALTERNATOR

main27411-16180i7AFE..AE102199402-199605

27443COVER, ALTERNATOR BEARING

main27443-63020i7AFE..AE102199402-199605

27446CLIP, ALTERNATOR CORD

main27446-15170i7AFE..AE102199402-199605

27700AREGULATOR ASSY, GENERATOR

main27700-74030i7AFE..AE102199402-199505

main27700-74040i7AFE..AE102199505-199605

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900197

main90099-00197

9009900268

main90099-00268

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510336

main90105-10336

9011908875

main90119-08875

9017906158

main90179-06158

9017910181

main90179-10181

9331914025

main93319-14025

30 parts on this diagram · 1 diagram in section
