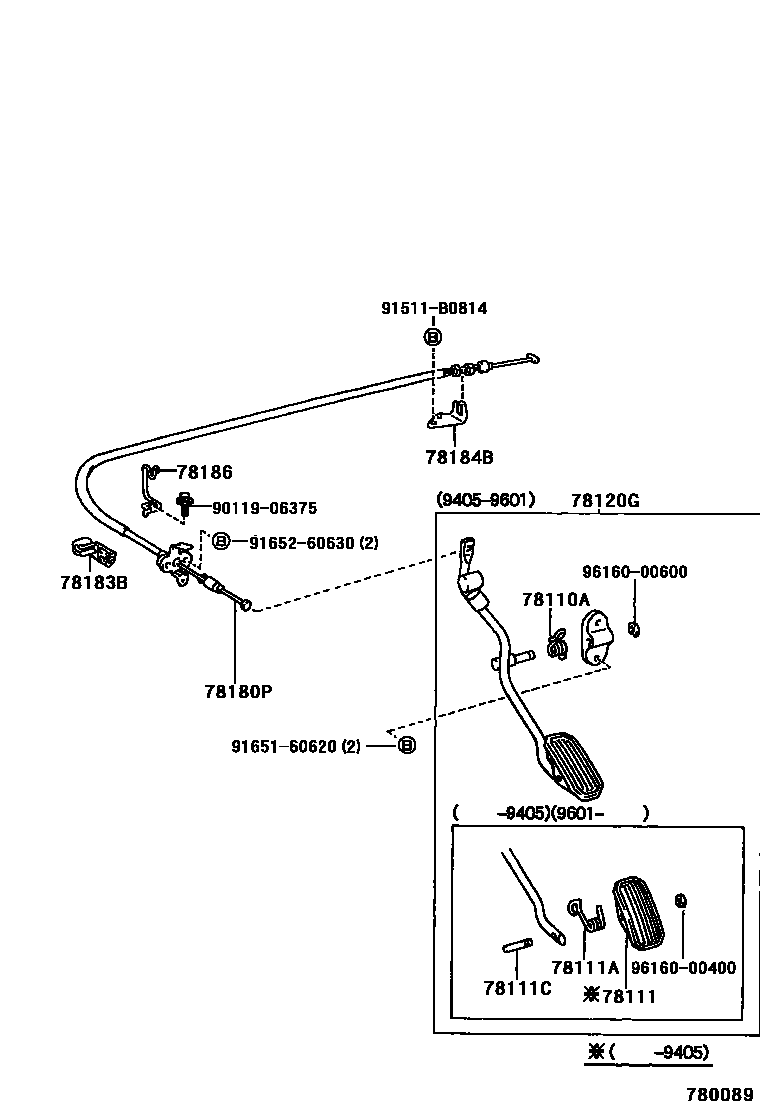

Toyota COROLLA SPRINTER — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iAE102199402-199605

78111PEDAL, ACCELERATOR

main78111-32010iAE102199402-199405

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iAE102199402-199405

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE102199402-199405

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12160iAE102199402-199405

main78120-12161iAE102199405-199601

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1A420iAE102199402-199605

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12160iAE102199402-199605

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12280iAE102199402-199605

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12290iAE102199402-199605

9011906375

main90119-06375

91511B0814

main91511-B0814

9165160620

main91651-60620

9165260630

main91652-60630

9616000400

main96160-00400

9616000600

main96160-00600

15 parts on this diagram · 1 diagram in section
