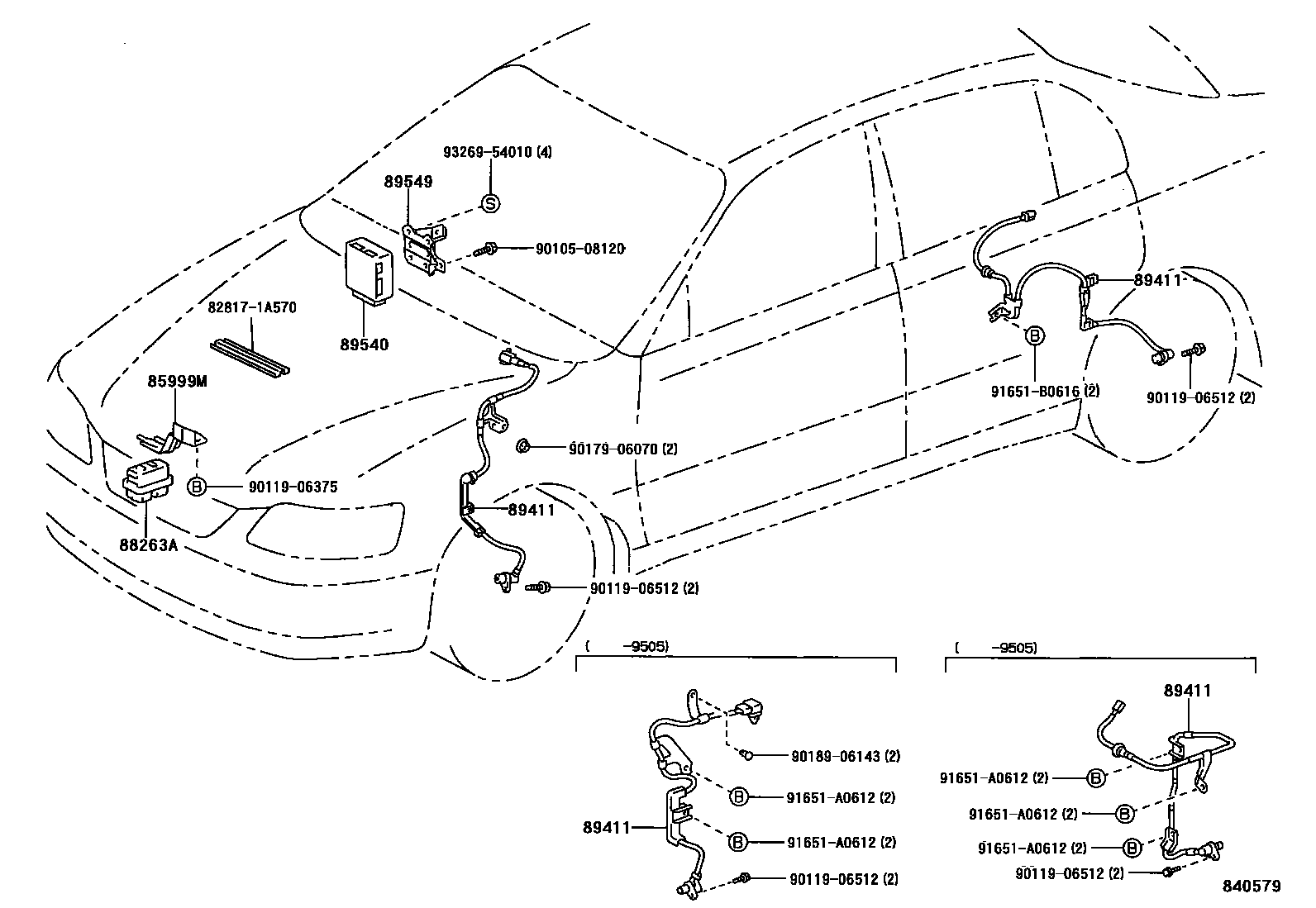

Toyota COROLLA SPRINTER — ABS & VSC

85999MBRACKET, RELAY

main85999-12320iAE102199402-199605

88263ARELAY, SKID CONTROL

main88263-12070iAE102199402-199604

sub88263-12080

main88263-32060iAE102199604-199605

89411SENSOR, SPEED

main89542-12020iAE102199402-199505

FRONT RH

main89542-12040iAE102199505-199605

FRONT RH

main89543-12020iAE102199402-199505

FRONT LH

main89543-12040iAE102199505-199605

FRONT LH

main89545-12020iAE102199402-199505

REAR RH

main89545-12040iAE102199505-199605

REAR RH

main89546-12020iAE102199402-199505

REAR LH

main89546-12040iAE102199505-199605

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89541-12070iAE102199402-199605

89549BRACKET, SKID CONTROL COMPUTER

main89549-12040iAE102199402-199605

828171A570PROTECTOR, WIRING HARNESS, NO.1

main82817-1A570

9010508120

main90105-08120

9011906375

main90119-06375

9011906512

main90119-06512

9017906070

main90179-06070

9018906143

main90189-06143

91651A0612

main91651-A0612

91651B0616

main91651-B0616

9326954010

main93269-54010

14 parts on this diagram · 1 diagram in section
