Toyota COROLLA SPORT — PRE-COLLISION SYSTEM

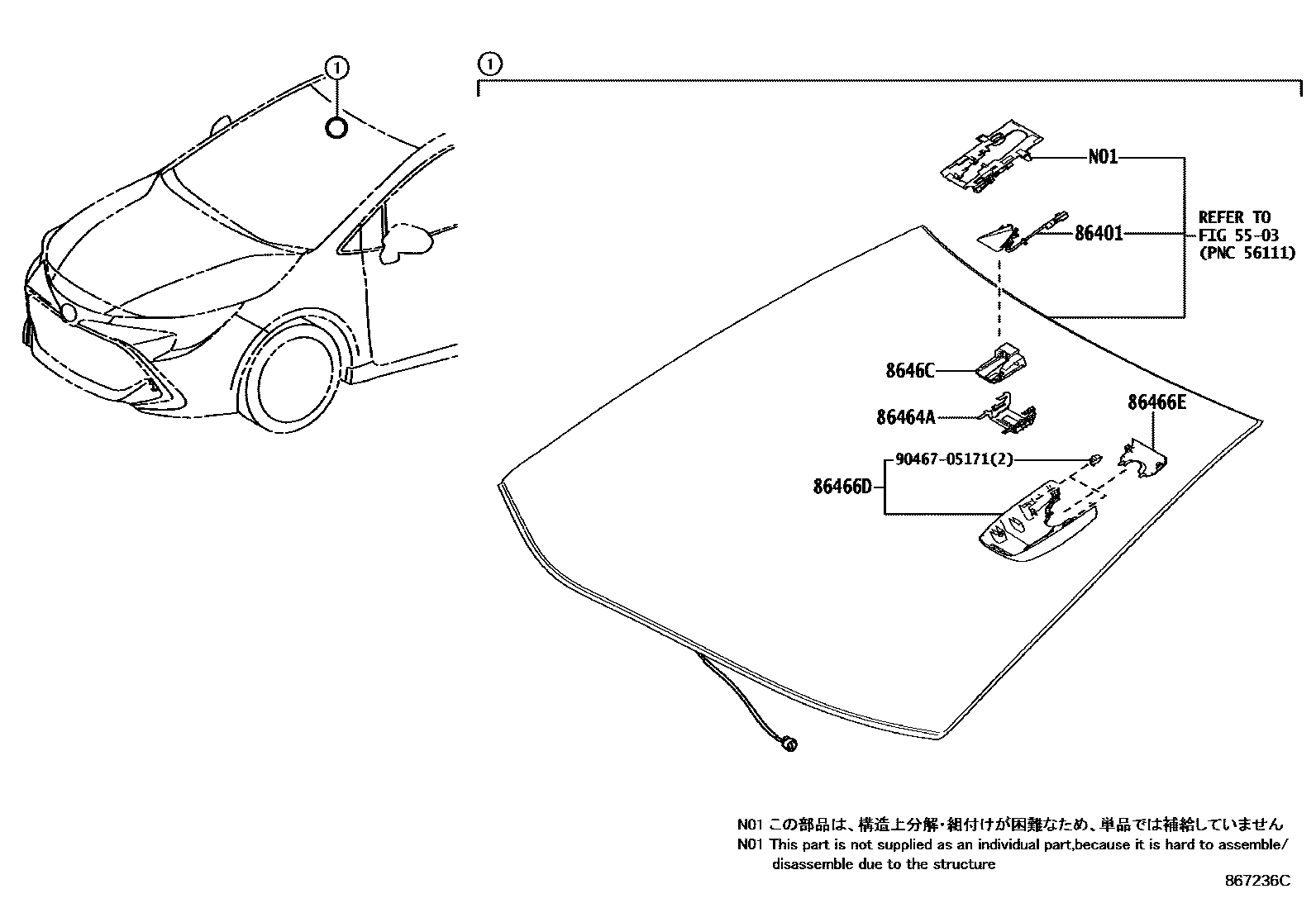

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-12010i201806-202010

main86401-12011i202011

86464ALATCH, FORWARD RECOGNITION

main86464-26010i201806-202005

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-12030i201806

main86466-12050i202210-202505

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-12040i201806

main86467-12010i202210

8646CCAMERA, FORWARD RECOGNITION

main8646C-12010i201806-201909

main8646C-12030i201909-202010

main8646C-12031i202010

main8646C-12110supersedes 8646C-12120i202210-202211

main8646C-12111supersedes 8646C-12121i202212-202404

main8646C-12180supersedes 8646C-12240i202404-202505

9046705171

main90467-05171

7 parts on this diagram · 2 diagrams in section

PRE-COLLISION SYSTEM for Toyota COROLLA SPORT

This section contains 9 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota COROLLA SPORT. Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, HOOD, FORWARD RECOGNITION, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1.
