Toyota COROLLA SPORT — METER

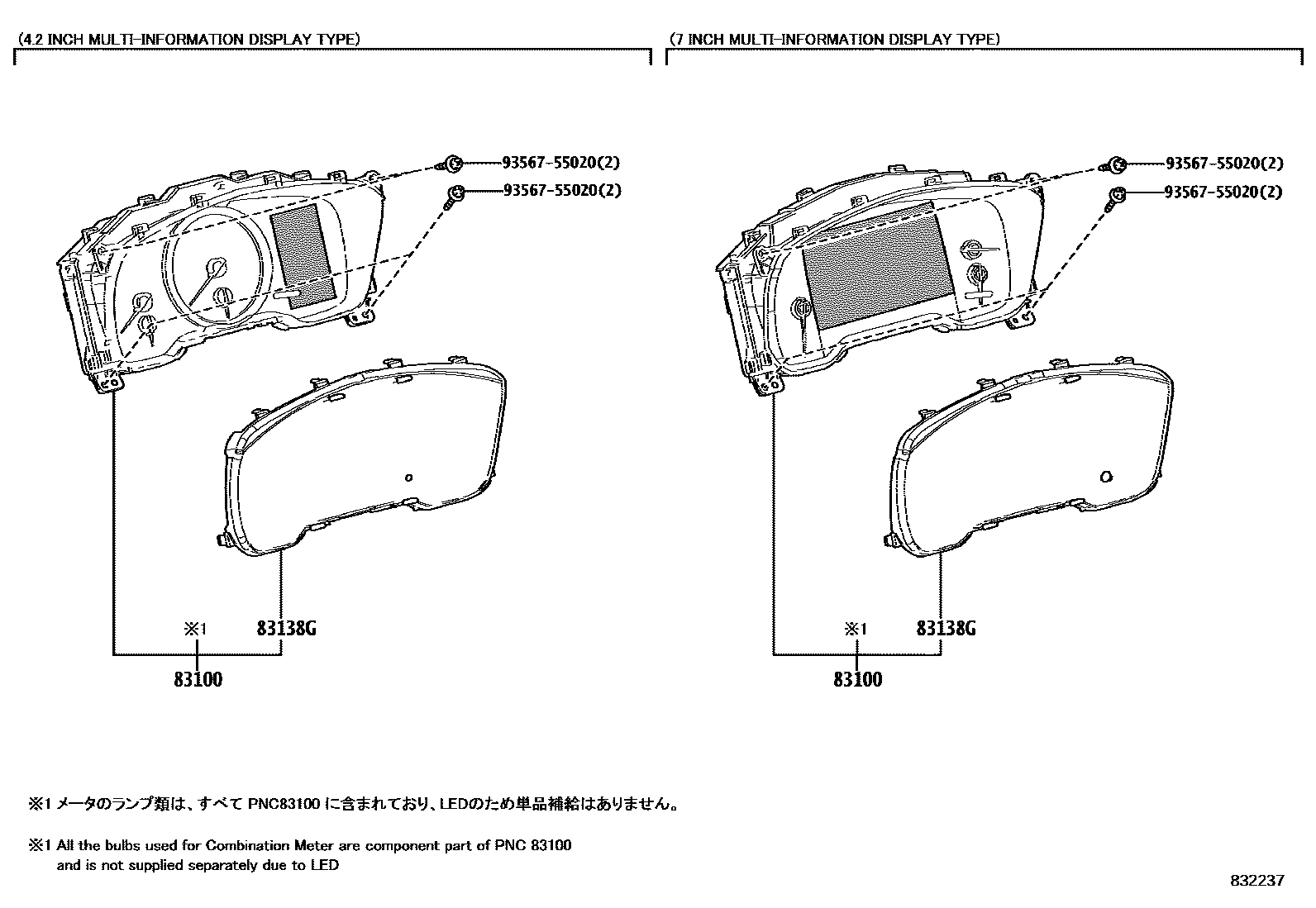

83100METER ASSY, COMBINATION

main83800-1AC60supersedes 83800-1AM20i201806-201810

main83800-1AC61supersedes 83800-1AM21i201811-202006

main83800-1AD70supersedes 83800-1AC71i201806-201810

main83800-1AD71supersedes 83800-1AC71i201811-202005

main83800-1AF40supersedes 83800-1AF50i202006-202107

main83800-1AF60supersedes 83800-1AF70i202006-202107

main83800-1AG20supersedes 83800-1AG30i202006-202107

main83800-1AG70supersedes 83800-1AF50i202006-202107

main83800-1AG80supersedes 83800-1AF70i202006-202107

main83800-1AJ10supersedes 83800-1AG30i202006-202107

main83800-1AM00supersedes 83800-1AL90i201806-201810

main83800-1AM01supersedes 83800-1AL91i201811-202006

main83800-1AM30supersedes 83800-1AM20i201806-201810

main83800-1AM31supersedes 83800-1AM21i201811-202006

main83800-1AP90supersedes 83800-1AL90i201806-201810

main83800-1AP91supersedes 83800-1AL91i201811-202006

main83800-1AQ00supersedes 83800-1AC71i201806-201810

main83800-1AQ01supersedes 83800-1AC71i201811-202005

main83800-1AZ60supersedes 83800-1AZ70i202107

main83800-1AZ80supersedes 83800-1AZ90i202107

main83800-1EA40supersedes 83800-1EA50i202107

main83800-1EA90supersedes 83800-1AZ70i202107-202111

main83800-1EB00supersedes 83800-1AZ90i202107-202111

main83800-1EB30i202111

main83800-1EK90supersedes 83800-1EL21i202210-202312

main83800-1EK91supersedes 83800-1EL22i202312-202404

main83800-1EL00supersedes 83800-1EL41i202210-202312

main83800-1EL01supersedes 83800-1EL42i202312-202404

main83800-1EL10supersedes 83800-1EL21i202210-202308

main83800-1EL11supersedes 83800-1EL21i202309-202312

main83800-1EL12supersedes 83800-1EL22i202312-202404

main83800-1EL30supersedes 83800-1EL41i202210-202308

main83800-1EL31supersedes 83800-1EL41i202309-202312

main83800-1EL32supersedes 83800-1EL42i202312-202404

main83800-1EL90supersedes 83800-1EL21i202210-202305

main83800-1EL91supersedes 83800-1EL21i202306-202309

main83800-1EL92supersedes 83800-1EL21i202309-202311

main83800-1EL93supersedes 83800-1EL22i202311-202404

main83800-1EM00supersedes 83800-1EL21i202210-202305

main83800-1EM01supersedes 83800-1EL21i202306-202309

main83800-1EM02supersedes 83800-1EL21i202309-202311

main83800-1EM03supersedes 83800-1EL22i202311-202404

main83800-1EM10supersedes 83800-1EL41i202210-202305

main83800-1EM11supersedes 83800-1EL41i202306-202309

main83800-1EM12supersedes 83800-1EL41i202309-202311

main83800-1EM13supersedes 83800-1EL42i202311-202404

main83800-1EM20supersedes 83800-1EL41i202210-202305

main83800-1EM21supersedes 83800-1EL41i202306-202309

main83800-1EM22supersedes 83800-1EL41i202309-202311

main83800-1EM23supersedes 83800-1EL42i202311-202404

main83800-1ET70supersedes 83800-1EU20i202404

main83800-1ET80supersedes 83800-1EU40i202404-202505

main83800-1EV30supersedes 83800-1EU20i202404-202409

main83800-1EV31supersedes 83800-1EL21i202410

main83800-1EV40supersedes 83800-1EU20i202404-202409

main83800-1EV41supersedes 83800-1EL21i202410

main83800-1EV50supersedes 83800-1EU40i202404-202409

main83800-1EV51supersedes 83800-1EL41i202410-202505

main83800-1EV60supersedes 83800-1EU40i202404-202409

main83800-1EV61supersedes 83800-1EL41i202410-202505

83138GGLASS, COMBINATION METER

main83852-16760i202404-202410

main83852-1AK50supersedes 83852-12G10i201806-202005

main83852-1EF00supersedes 83852-1AK50i202210

9356755020

main93567-55020

3 parts on this diagram · 3 diagrams in section

METER for Toyota COROLLA SPORT

This section contains 9 genuine Toyota parts for the METER system of the Toyota COROLLA SPORT. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, WIRE, METER, GLASS, COMBINATION METER, PLATE, COMBINATION METER MIRROR, NO.1.
