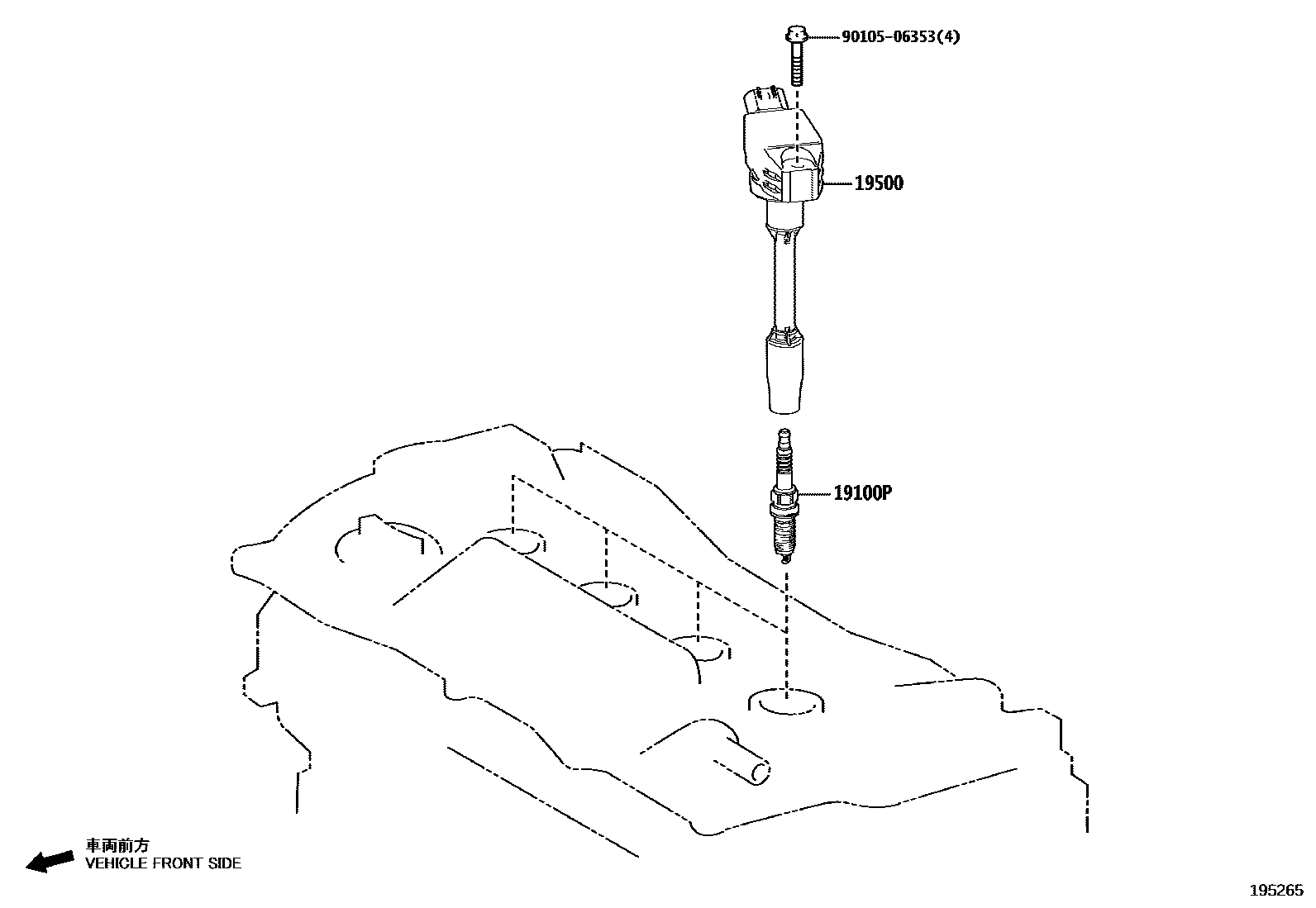

Toyota COROLLA SPORT — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01285×4i201806

main90919-01297×4i202210-202505

main90919-01298×4i201806-202005

19500COIL ASSY, IGNITION

main90919-02272×4i201806-202005

main90919-02276×4i202210-202505

main90919-02277×4i202210

9010506353

main90105-06353

3 parts on this diagram · 3 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota COROLLA SPORT

This section contains 6 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota COROLLA SPORT. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, COIL, IGNITION, NO.1.
