Toyota COROLLA SPACIO — WIRELESS DOOR LOCK

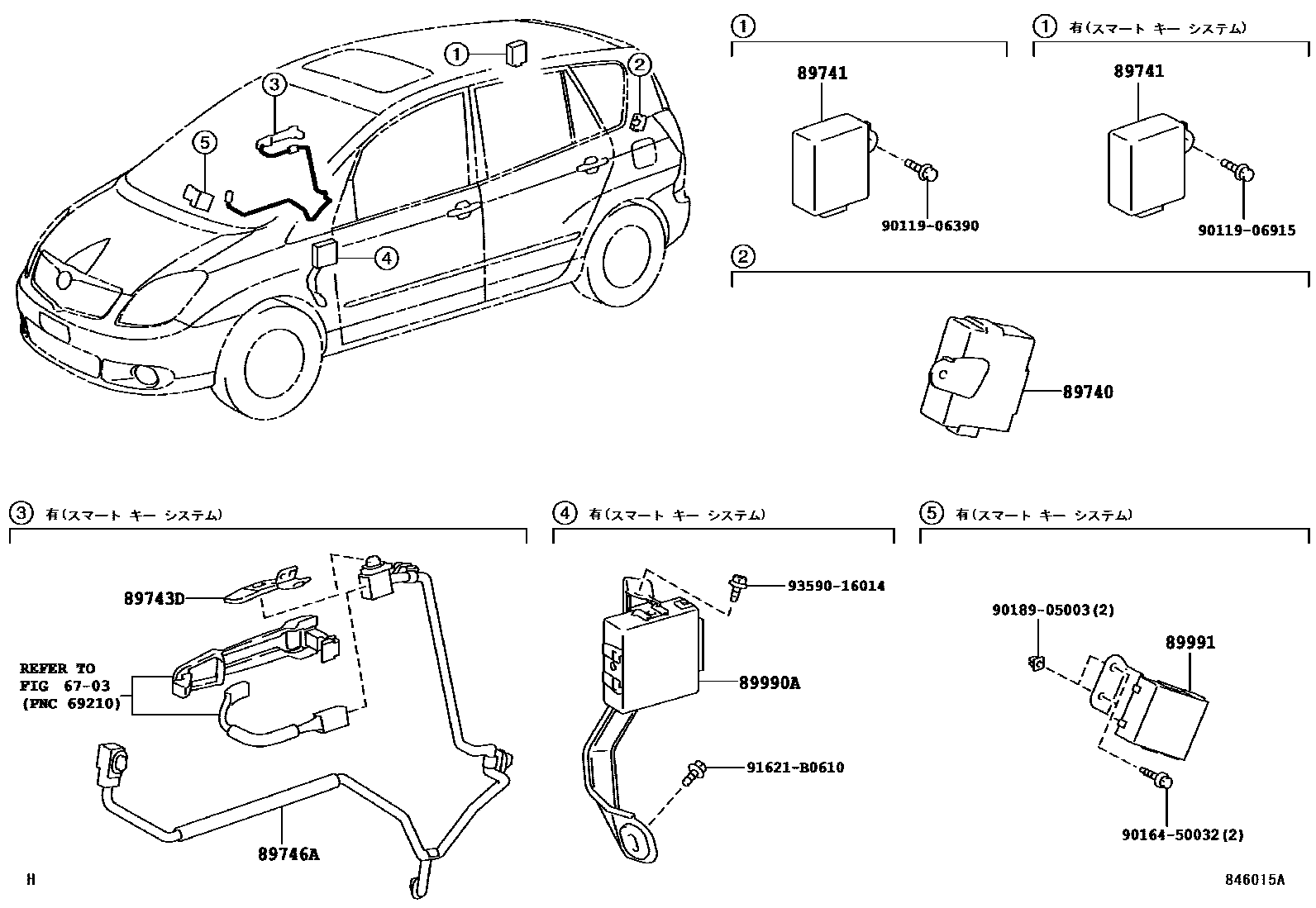

Parts diagram

6703FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-03

89740COMPUTER ASSY, DOOR CONTROL W/RECEIVER

main89740-13020i200304

89741RECEIVER, DOOR CONTROL

main89740-13020i200304

main89741-13050i200105-200304

89743DBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-13010i200304-200706

89746AHARNESS, ELECTRICAL KEY WIRE

main89746-12010i200404

main89746-13010i200304-200404

89990ACOMPUTER ASSY, SMART KEY

main89990-13010i200304-200404

main89990-13020i200404

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-12010i200404

main89991-13010i200304-200404

9011906390

main90119-06390

9011906915

main90119-06915

9016450032

main90164-50032

9018905003

main90189-05003

91621B0610

main91621-B0610

9359016014

main93590-16014

13 parts on this diagram · 1 diagram in section

WIRELESS DOOR LOCK for Toyota COROLLA SPACIO

This section contains 13 genuine Toyota parts for the WIRELESS DOOR LOCK system of the Toyota COROLLA SPACIO. Key components include: FRONT DOOR LOCK & HANDLE, COMPUTER ASSY, DOOR CONTROL W/RECEIVER, RECEIVER, DOOR CONTROL, BRACKET, ELECTRICAL KEY WIRE HARNESS, HARNESS, ELECTRICAL KEY WIRE.
