Toyota COROLLA SPACIO — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-13060i199701

main85110-13070i199701

85160LINK ASSY, WINDSHIELD WIPER

main85150-13060i199701

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2i199701

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2i199701

85211BARM, FRONT WIPER, RH

main85211-13010i199701

85212ABLADE, FR WIPER, RH

main85212-13010i199809

main85212-44010i199701-199809

85214ARUBBER, WIPER, RH

main85214-44010i199701

85214BRUBBER, WIPER, LH

main85214-20350i199701

85221BARM, FRONT WIPER, LH

main85221-13020i199701

85222ABLADE, FR WIPER, LH

main85222-20390i199701

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-44010i199701

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-44010i199701

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20310i199701

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20310i199701

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-13030i199701

main85291-13040i199701

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-30030i199701

9011906540

main90119-06540

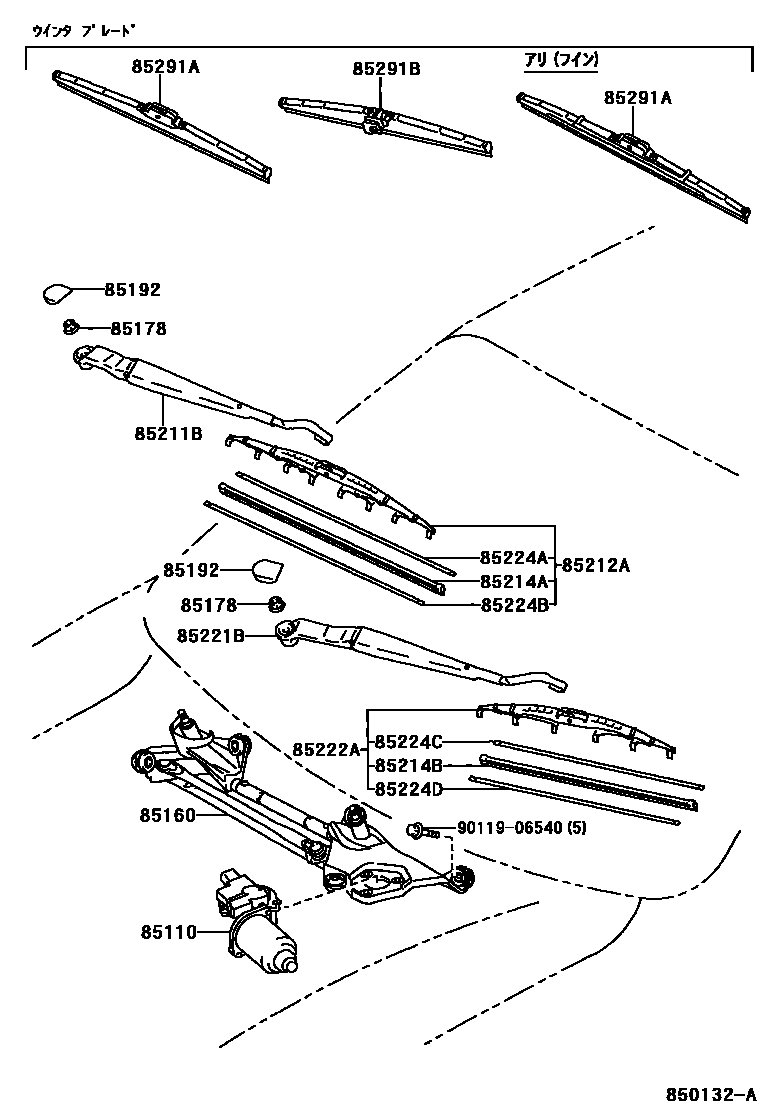

17 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota COROLLA SPACIO

This section contains 17 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA SPACIO. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
