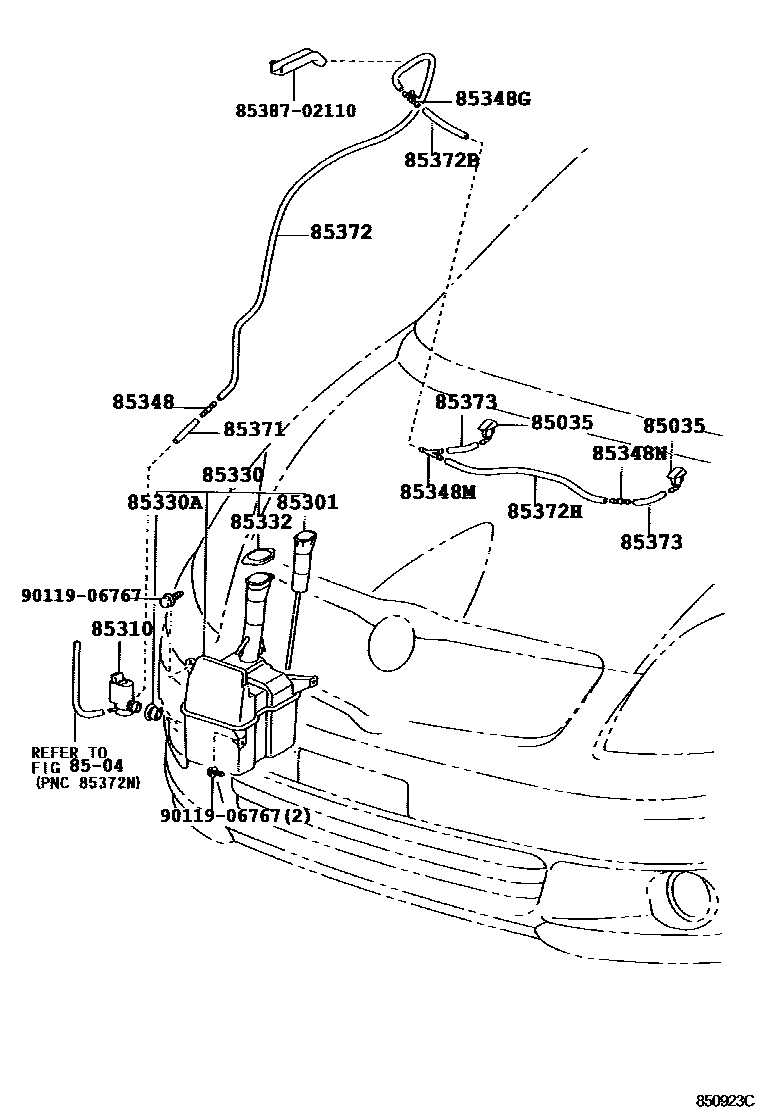

Toyota COROLLA SPACIO — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-13050×2i200105-200304

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85318-12450i200105-200304

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10290i200105-200304

85330JAR ASSY, WINDSHIELD WASHER

main85315-12450i200105-200304

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i200105-200304

85332CAP, WINDSHIELD WASHER JAR

main85316-26030i200105-200304

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i200105-200304

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-20800i200105-200304

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-14390i200105-200304

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-10260i200105-200304

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200105-200304

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001i200105-200304

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200105-200304

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i200105-200304

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200105-200304

8538702110CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-02110

9011906767

main90119-06767

18 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COROLLA SPACIO

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA SPACIO. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
