Toyota COROLLA SPACIO — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

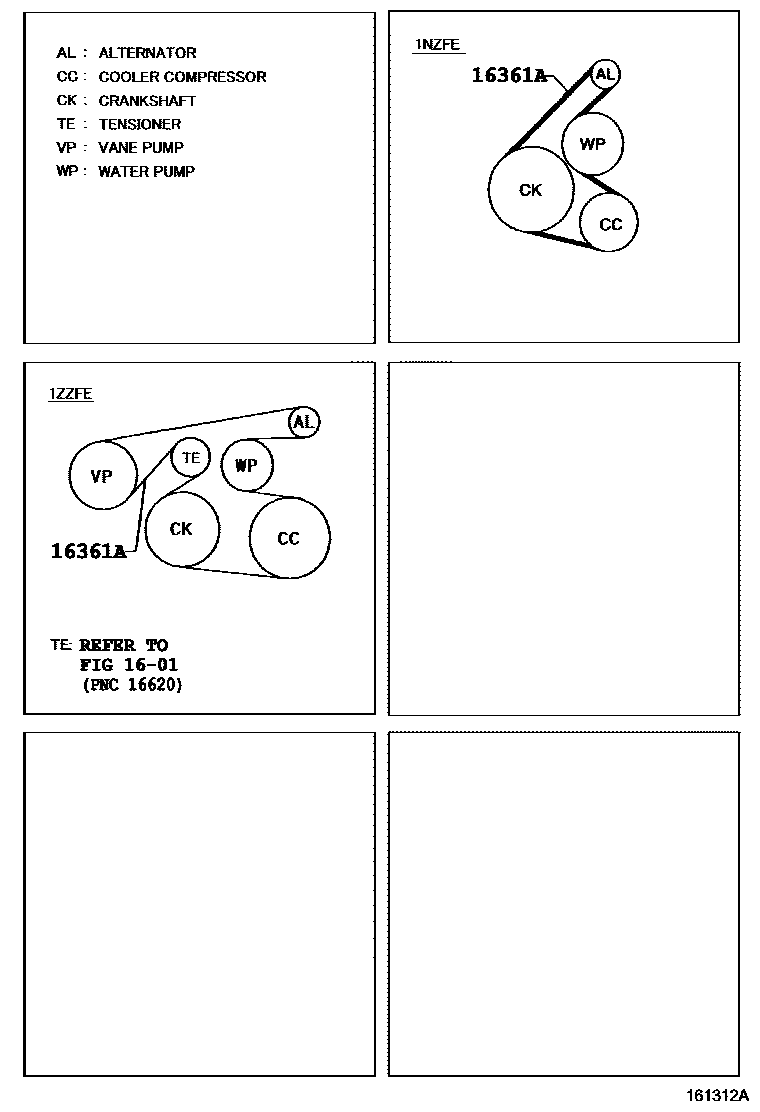

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02500i200105-200304

main90916-02506i200105-200203

main90916-02551i200203-200304

main90916-02569i200306

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA SPACIO

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota COROLLA SPACIO. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
