Toyota COROLLA SPACIO — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1����� ��� 0005 1��� 0006 1�������� & ��������� ���� 0007 1������������ 0008 1������������ 0009 1���,���,���,��� & �������

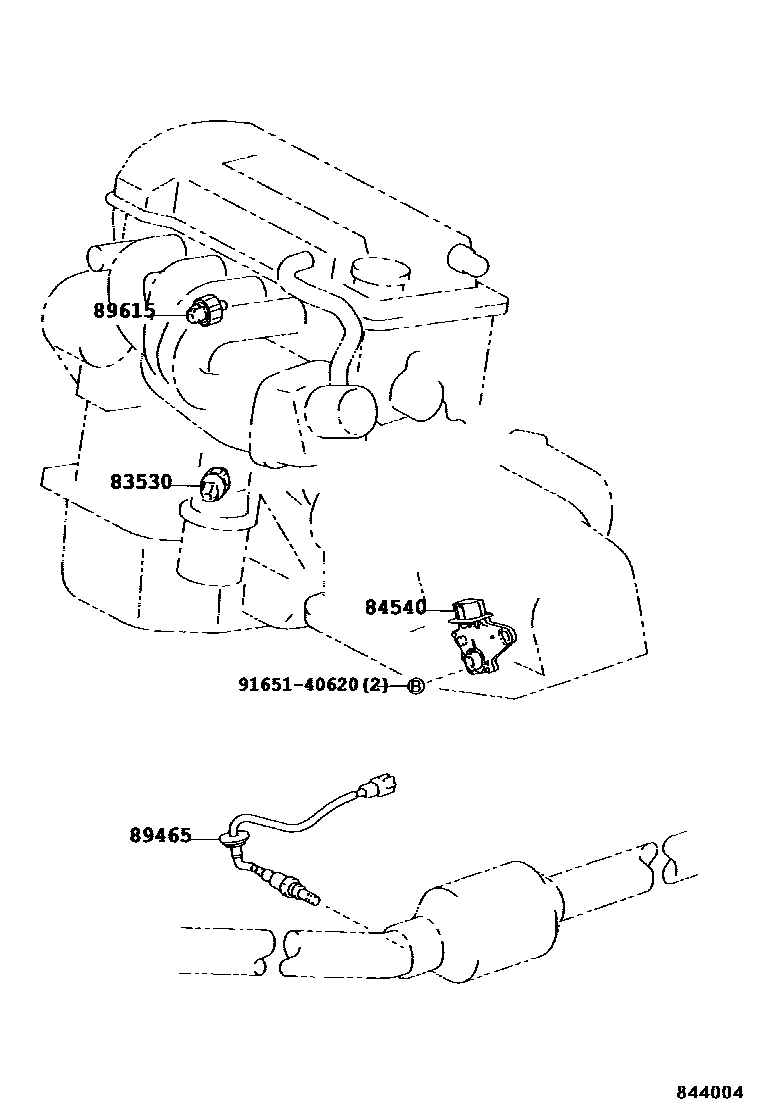

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNZE121,ZZE12#200304

main83530-60020iNZE121,ZZE12#200105-200304

84540SWITCH ASSY, NEUTRAL START

main84540-52010iZZE124200203-200304

main84540-52050iNZE121,ZZE12#200308-200706

89465SENSOR, OXYGEN

main89465-12600iNZE121,ZZE122200105-200304

main89465-12610iZZE124200108-200304

main89465-12710iZZE124200304

main89465-13030iZZE122200304

main89465-20810iNZE121200304

89615SENSOR, KNOCK CONTROL

main89615-12120iZZE12#200105-200304

main89615-20090iZZE12#200304

main89615-52030iNZE121200105-200304

main89615-52040iNZE121200105-200304

9165140620

main91651-40620

5 parts on this diagram · 9 diagrams in section
