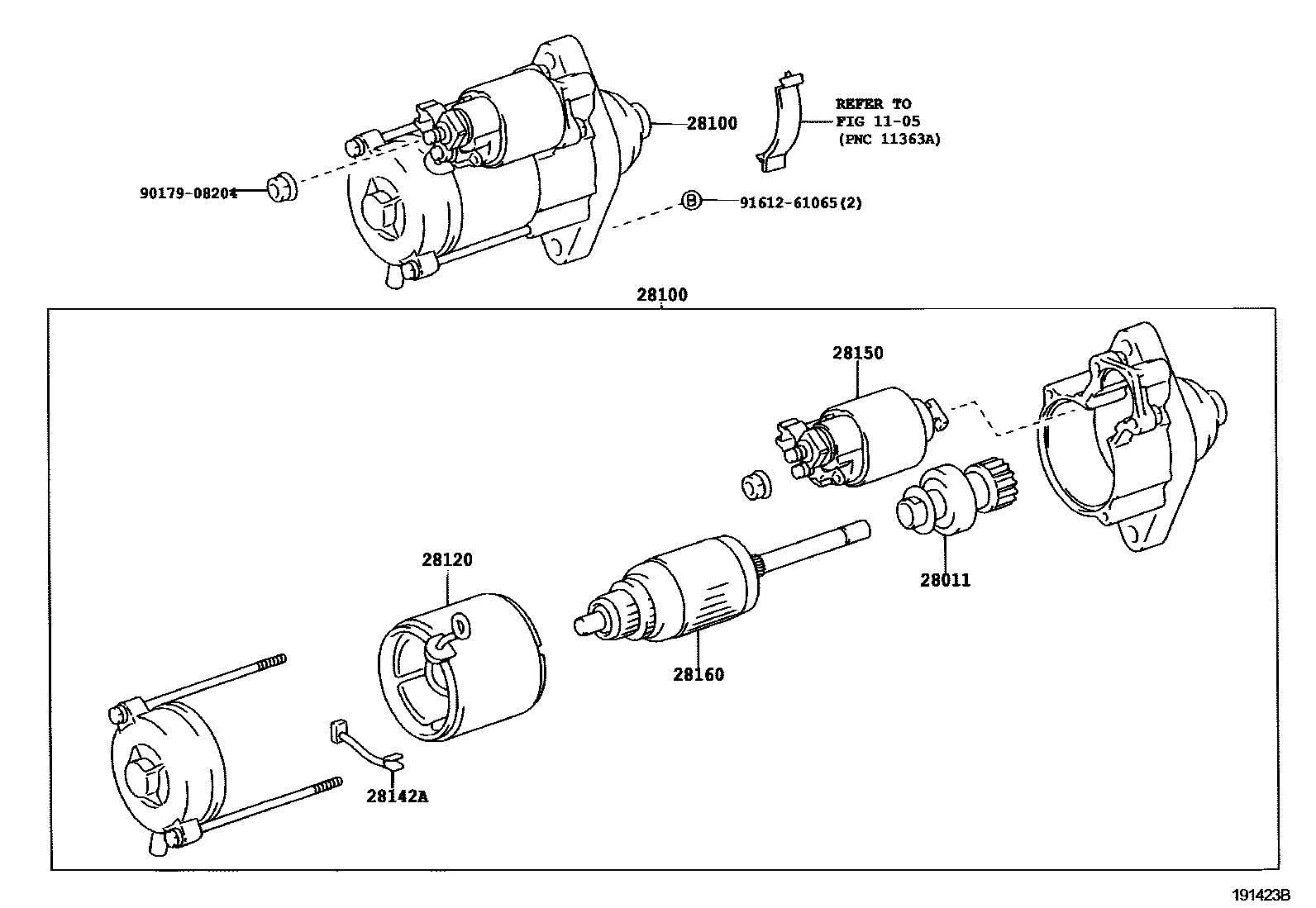

Toyota COROLLA SPACIO — STARTER

1105CYLINDER BLOCK

→ Go to FIG 11-05

28011CLUTCH SUB-ASSY, STARTER

main28011-21050i200105-200208

12V 0.8KW

main28011-70020i200105-200304

12V 0.8KW,1.0KW

28100STARTER ASSY

main28100-21020i200208-200304

main28100-21030i200105-200304

main28100-21050i200105-200208

main28100-22030i200105-200304

main28100-22040i200105-200304

28120YOKE ASSY, STARTER

main28120-23020i200105-200208

12V 0.8KW

main28120-70020i200105-200304

12V 0.8KW

main28120-70050i200105-200304

12V 1.0KW

28142ASTARTER KIT

main28142-10020i200105-200208

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i200105-200705

main28150-70030i200105-200706

28160ARMATURE ASSY, STARTER

main28160-21050i200105-200208

12V 0.8KW

main28160-70021i200105-200304

12V 0.8KW

main28160-70050i200105-200304

12V 1.0KW

9017908204

main90179-08204

9161261065

main91612-61065

9 parts on this diagram · 4 diagrams in section

STARTER for Toyota COROLLA SPACIO

This section contains 10 genuine Toyota parts for the STARTER system of the Toyota COROLLA SPACIO. Key components include: CYLINDER BLOCK, CLUTCH SUB-ASSY, STARTER, STARTER ASSY, YOKE ASSY, STARTER, HOLDER ASSY, STARTER BRUSH.
