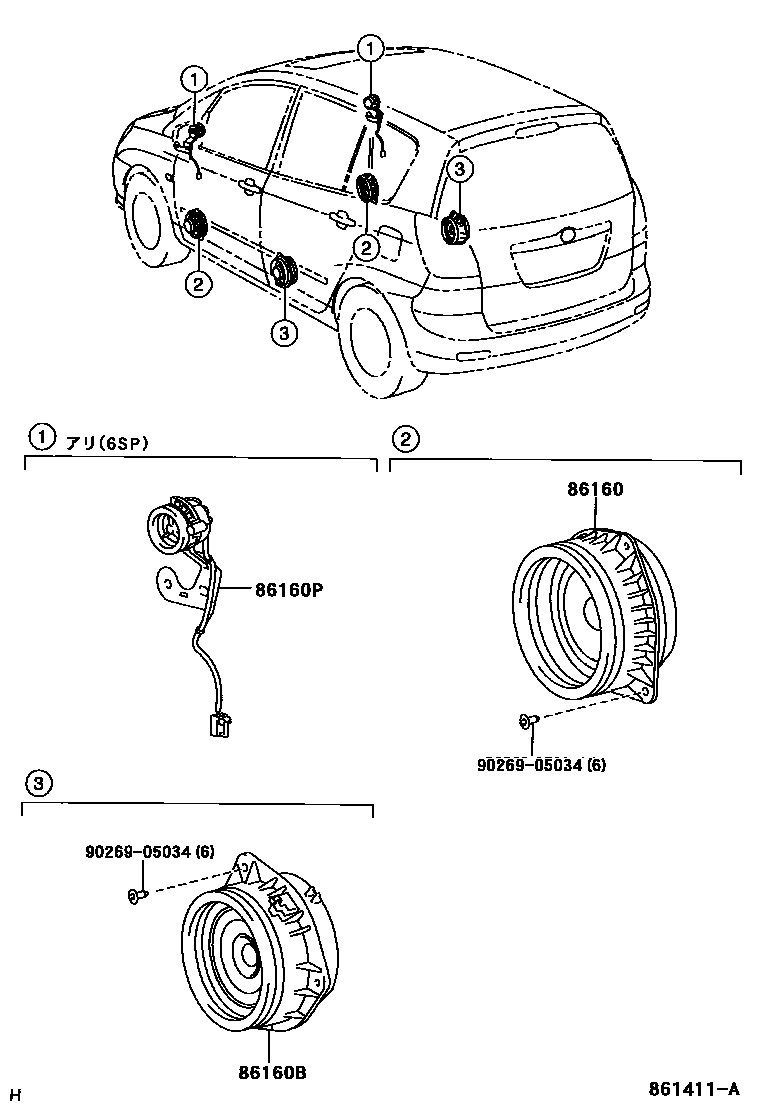

Toyota COROLLA SPACIO — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-44120×2i200105-200304

main86160-68090×2i200304

86160BSPEAKER ASSY, REAR

main86160-13080×2i200304

main86160-44130×2i200206-200304

86160PSPEAKER ASSY, FRONT NO.2

main86160-13060i200304

main86160-13070i200304

9026905034

main90269-05034

4 parts on this diagram · 1 diagram in section

SPEAKER for Toyota COROLLA SPACIO

This section contains 4 genuine Toyota parts for the SPEAKER system of the Toyota COROLLA SPACIO. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
