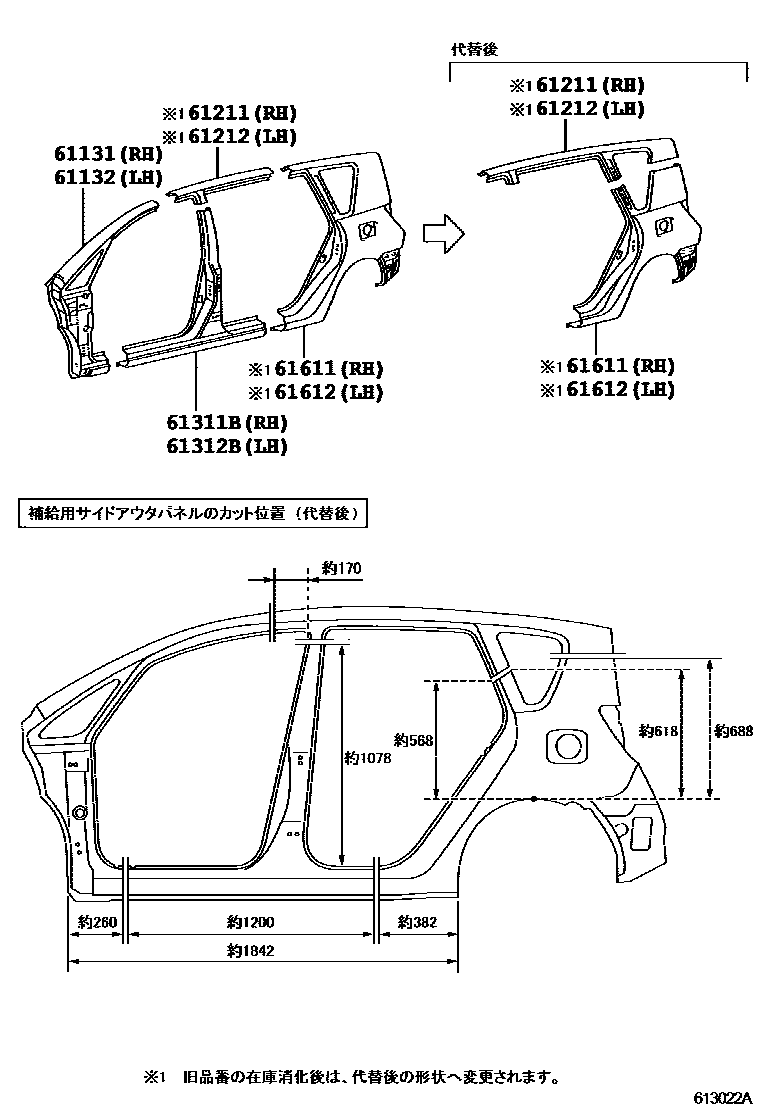

Toyota COROLLA SPACIO — SIDE MEMBER

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-13070i200304

main61131-13080i200304

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-13070i200105-200304

main61132-13080i200105-200304

61211RAIL, ROOF SIDE, OUTER RH

main61211-13100i200105-200304

61212RAIL, ROOF SIDE, OUTER LH

main61212-13100i200304-200706

61311BPILLAR, CENTER BODY, OUTER RH

main61311-13050i200105-200304

main61311-13060i200105-200304

61312BPILLAR, CENTER BODY, OUTER LH

main61312-13050i200105-200304

main61312-13060i200105-200304

61611PANEL, QUARTER, RH

main61611-13390i200105-200304

main61611-13400i200304-200706

61612PANEL, QUARTER, LH

main61602-13630i200105-200304

main61602-13640i200105-200304

8 parts on this diagram · 2 diagrams in section

SIDE MEMBER for Toyota COROLLA SPACIO

This section contains 72 genuine Toyota parts for the SIDE MEMBER system of the Toyota COROLLA SPACIO. Key components include: BRACKET, FRONT FENDER, REAR RH, BRACKET, FRONT FENDER, REAR LH, PROTECTOR, FRONT FENDER SIDE PANEL, PROTECTOR, FRONT FENDER SIDE PANEL, NO.1, COWL PANEL & WINDSHIELD GLASS.
