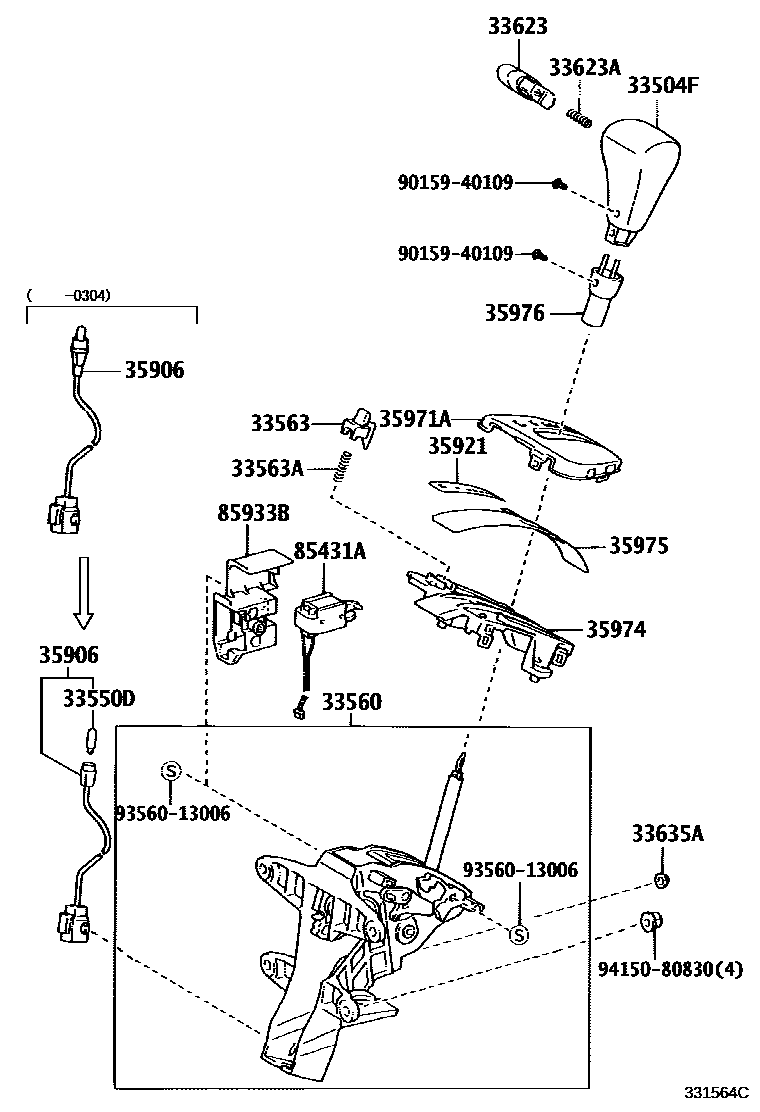

Toyota COROLLA SPACIO — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-13050-B0i200304-200706

DK.GRAY,TRIM0#,1#

main33542-13060-B0i200105-200304

33550DBULB, POSITION INDICATOR LAMP

main90981-11014i200304-200706

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-13010i200105-200304

33563BUTTON, SHIFT LOCK RELEASE

main33563-13010i200105-200304

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-06118i200304

33623BUTTON, SHIFT LEVER KNOB

main33623-13010-B0i200304-200706

DK.GRAY,TRIM0#,1#

main33623-13020i200206-200304

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-05063i200304

33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)

main33635-13010i200105-200304

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-13020i200105-200304

35921PLATE, CONTROL POSITION INDICATOR

main35921-13010i200105-200304

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-13010-A0i200304-200706

IVORY,TRIM0#

main35971-13010-B0i200304-200706

DK.GRAY,TRIM1#

main35971-13020i200206-200304

main35971-13060i200210-200304

35974HOUSING, POSITION INDICATOR, LOWER

main35974-13010i200105-200108

main35974-13011i200304

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-13010i200105-200304

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-13020-B0i200105-200304

DK.GRAY,TRIM0#

main35976-13030i200304-200706

85431ASOLENOID, SHIFT LOCK

main85431-13010i200105-200304

85933BCOMPUTER, SHIFT LOCK CONTROL

main85933-13040i200105-200304

9015940109

main90159-40109

9356013006

main93560-13006

9415080830

main94150-80830

19 parts on this diagram · 2 diagrams in section

SHIFT LEVER & RETAINER for Toyota COROLLA SPACIO

This section contains 31 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota COROLLA SPACIO. Key components include: KNOB SUB-ASSY, SHIFT LEVER, BULB, POSITION INDICATOR LAMP, UNIT ASSY, SHIFT LOCK CONTROL, BUTTON, SHIFT LOCK RELEASE, SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON).
