Toyota COROLLA SPACIO — QUARTER WINDOW

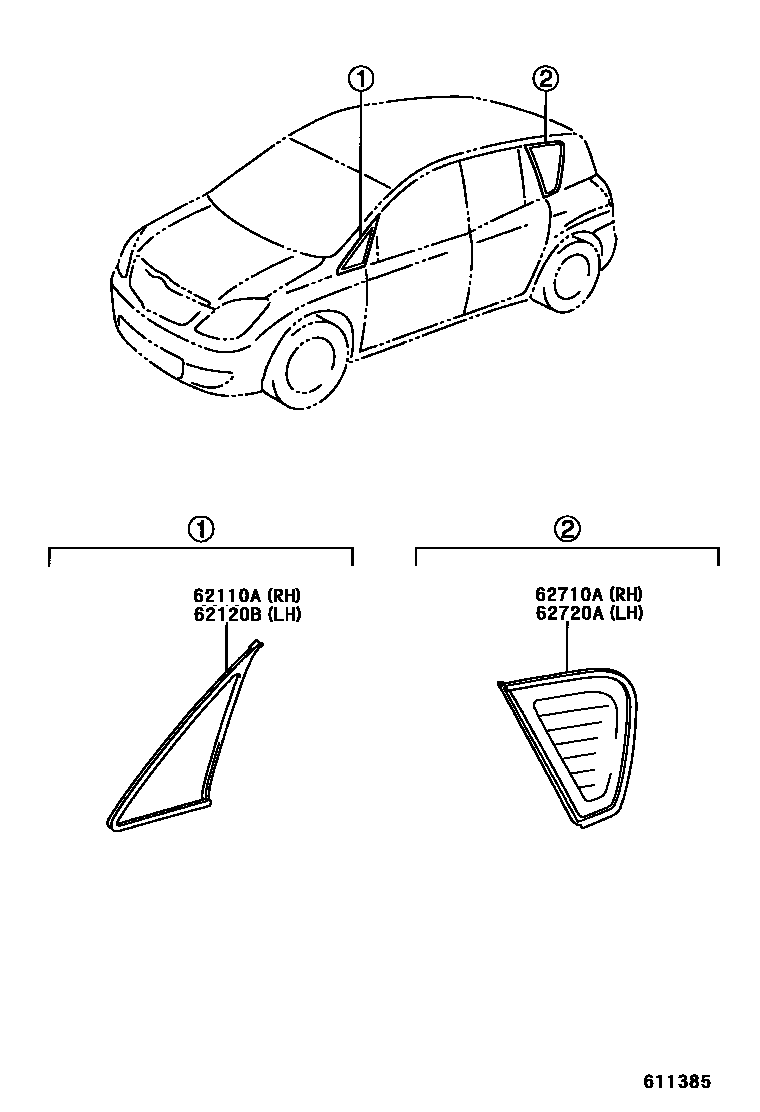

Parts diagram

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-13040i200105-200304

main62110-13050i200105-200304

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-13040i200105-200304

main62120-13050i200304

62710AWINDOW ASSY, QUARTER, RH

main62710-13120i200105-200304

main62710-13130i200304

main62710-13140i200204-200304

main62710-13150i200105-200301

main62710-13151i200301-200304

main62710-13160i200105-200301

main62710-13161i200304

main62710-13170i200206-200304

main62710-13171i200301-200304

62720AWINDOW ASSY, QUARTER, LH

main62720-13120i200105-200304

main62720-13130i200304

main62720-13140i200204-200304

main62720-13150i200105-200301

main62720-13151i200301-200304

main62720-13160i200105-200301

main62720-13161i200301-200304

main62720-13170i200206-200304

main62720-13171i200301-200304

4 parts on this diagram · 1 diagram in section

QUARTER WINDOW for Toyota COROLLA SPACIO

This section contains 4 genuine Toyota parts for the QUARTER WINDOW system of the Toyota COROLLA SPACIO. Key components include: WINDOW ASSY, FRONT SIDE FIX, RH, WINDOW ASSY, FRONT SIDE FIX, LH, WINDOW ASSY, QUARTER, RH, WINDOW ASSY, QUARTER, LH.
