Toyota COROLLA SPACIO — PARTIAL ENGINE ASSEMBLY

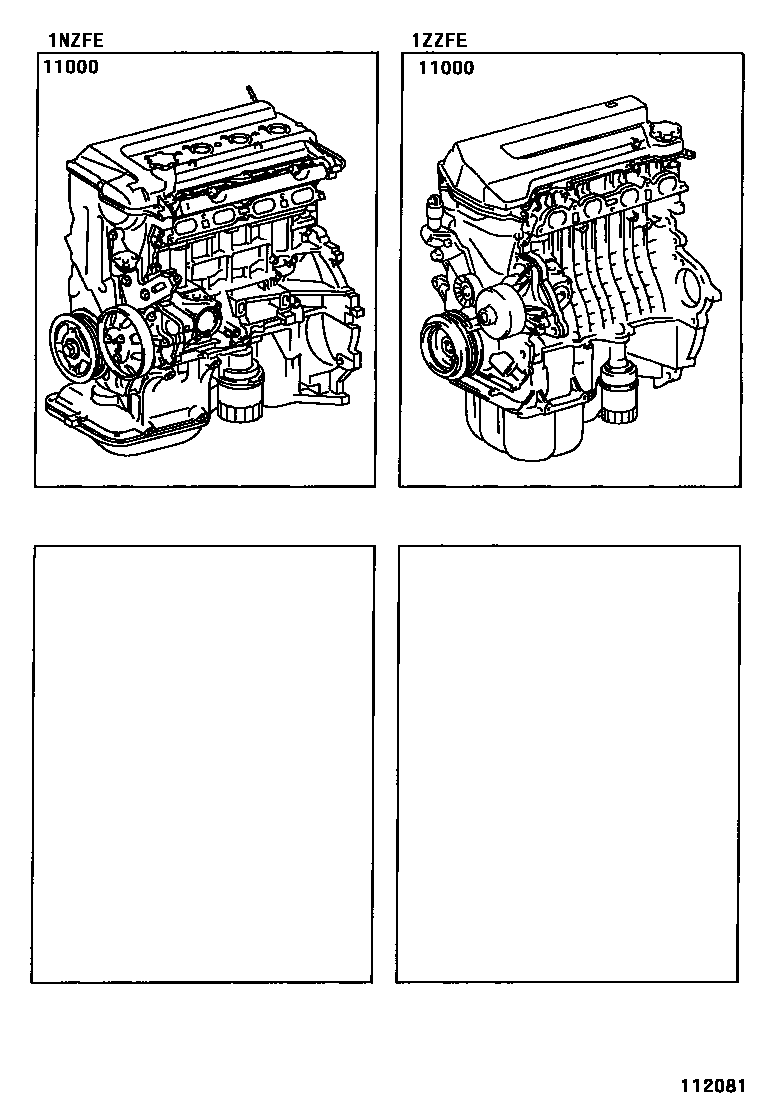

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-21121i200311-200706
sub19000-21122
sub12204-21011
main19000-22190i200111-200202
main19000-22191i200202-200304
sub19000-22192
sub16258-28030
sub16268-22101
main19000-22200i200105-200202
main19000-22201i200202-200209
main19000-22240i200108-200111
main19000-22310i200304-200706
sub19000-22311
sub16258-28030
sub16268-22101
main19000-22330i200209-200304
sub19000-22331
sub16258-28030
sub16268-22101
sub16268-22161
main19000-22340i200311-200706
sub19000-22342
sub16258-28030
sub16268-22101
sub16268-22161
main19000-22341i200304-200311

1 parts on this diagram · 1 diagram in section
