Toyota COROLLA SPACIO — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
IVORY,TRIM0#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,TRIM0#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87911GASKET, OUTER REAR VIEW MIRROR, RH
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,073
SILVER ME.GR.,1D9
SILVER M.M.,1E7
BLACK ME,205
BLACK MC.,209
RED M.M.,3N8
BORDEAUX MC.,3P2
ROSE ME.OP.,3P3
GOLD ME.,585
LT.AQUA ME.OP.,761
DK.BLUE M.M.,8P4
87940MIRROR ASSY, OUTER REAR VIEW, LH
87941GASKET, OUTER REAR VIEW MIRROR, LH
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,073
SILVER M.M.,1E7
BLACK MC.,209
RED M.M.,3N8
BORDEAUX MC.,3P2
ROSE ME.OP.,3P3
GOLD ME.,585
LT.AQUA ME.OP.,761
DK.BLUE M.M.,8P4
9015460034
main90154-60034
9017906159
main90179-06159

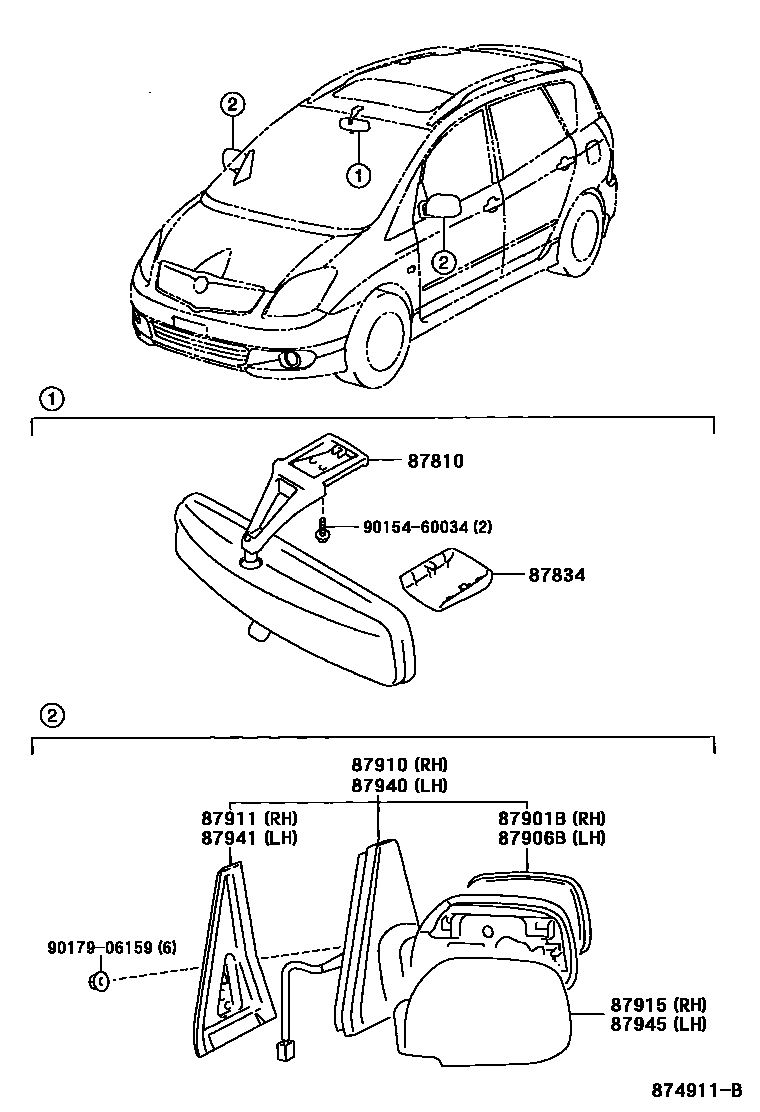

12 parts on this diagram · 1 diagram in section
MIRROR for Toyota COROLLA SPACIO
This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota COROLLA SPACIO. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
