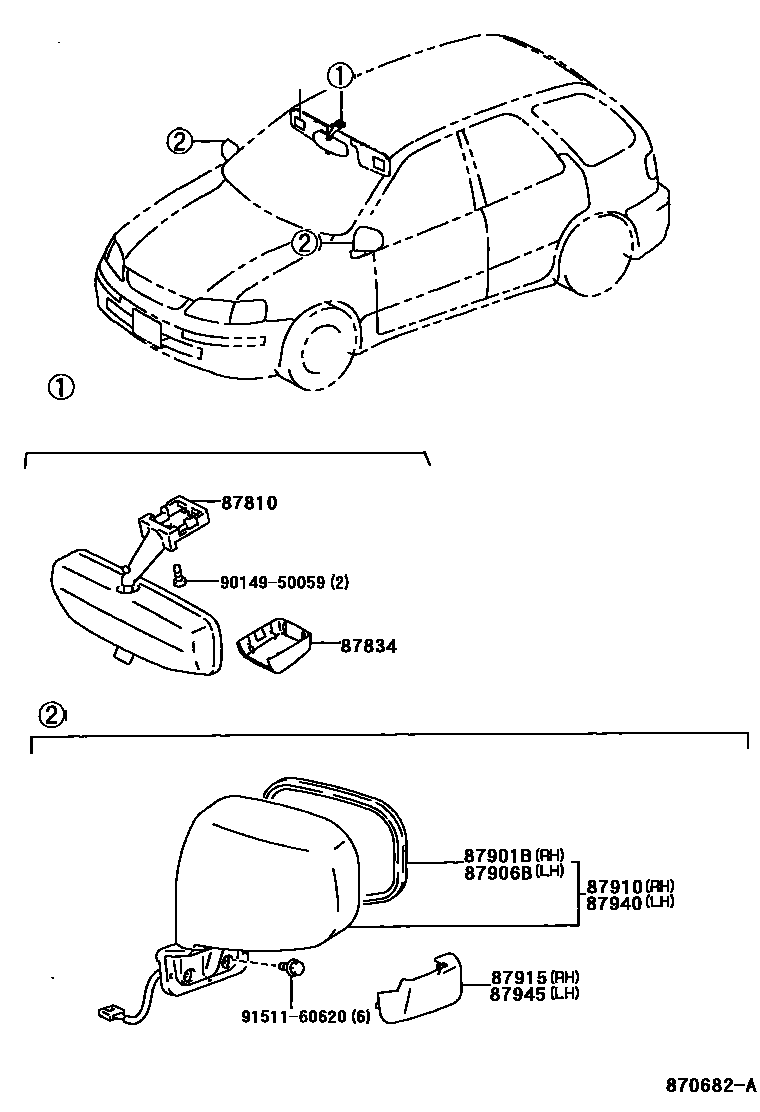

Toyota COROLLA SPACIO — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
CONCEPT BY MIKIHOUSE *(M),IVORY,TRIM00
MD.CHARCOAL,TRIM1#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
MD.CHARCOAL,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK ME,205
CONCEPT BY MIKIHOUSE *(M),SUPER RED 2,3E5
YELLOW GREEN ME.OP.,6Q9
GREEN M.M.,6R9
BLUE MC.,8M6
87915COVER, OUTER MIRROR, RH
CONCEPT BY MIKIHOUSE *(M),SUPER WHITE 2,040
SILVER ME.,1C0
BLACK ME,205
CONCEPT BY MIKIHOUSE *(M),SUPER RED 2,3E5
YELLOW GREEN ME.OP.,6Q9
GREEN M.M.,6R9
BLUE MC.,8M6
87940MIRROR ASSY, OUTER REAR VIEW, LH
CONCEPT BY MIKIHOUSE *(M),SUPER WHITE 2,040
SILVER ME.,1C0
BLACK ME,205
SUPER RED 2,3E5
YELLOW GREEN ME.OP.,6Q9
GREEN M.M.,6R9
CONCEPT BY MIKIHOUSE *(M),DARK BLUE MC.,8K8
BLUE MC.,8M6
87945COVER, OUTER MIRROR, LH
CONCEPT BY MIKIHOUSE *(M),SUPER WHITE 2,040
SILVER ME.,1C0
BLACK ME,205
CONCEPT BY MIKIHOUSE *(M),SUPER RED 2,3E5
YELLOW GREEN ME.OP.,6Q9
GREEN M.M.,6R9
CONCEPT BY MIKIHOUSE *(M),DARK BLUE MC.,8K8
BLUE MC.,8M6
9014950059
main90149-50059
9151160620
main91511-60620
10 parts on this diagram · 1 diagram in section
MIRROR for Toyota COROLLA SPACIO
This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota COROLLA SPACIO. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
