Toyota COROLLA SPACIO — METER

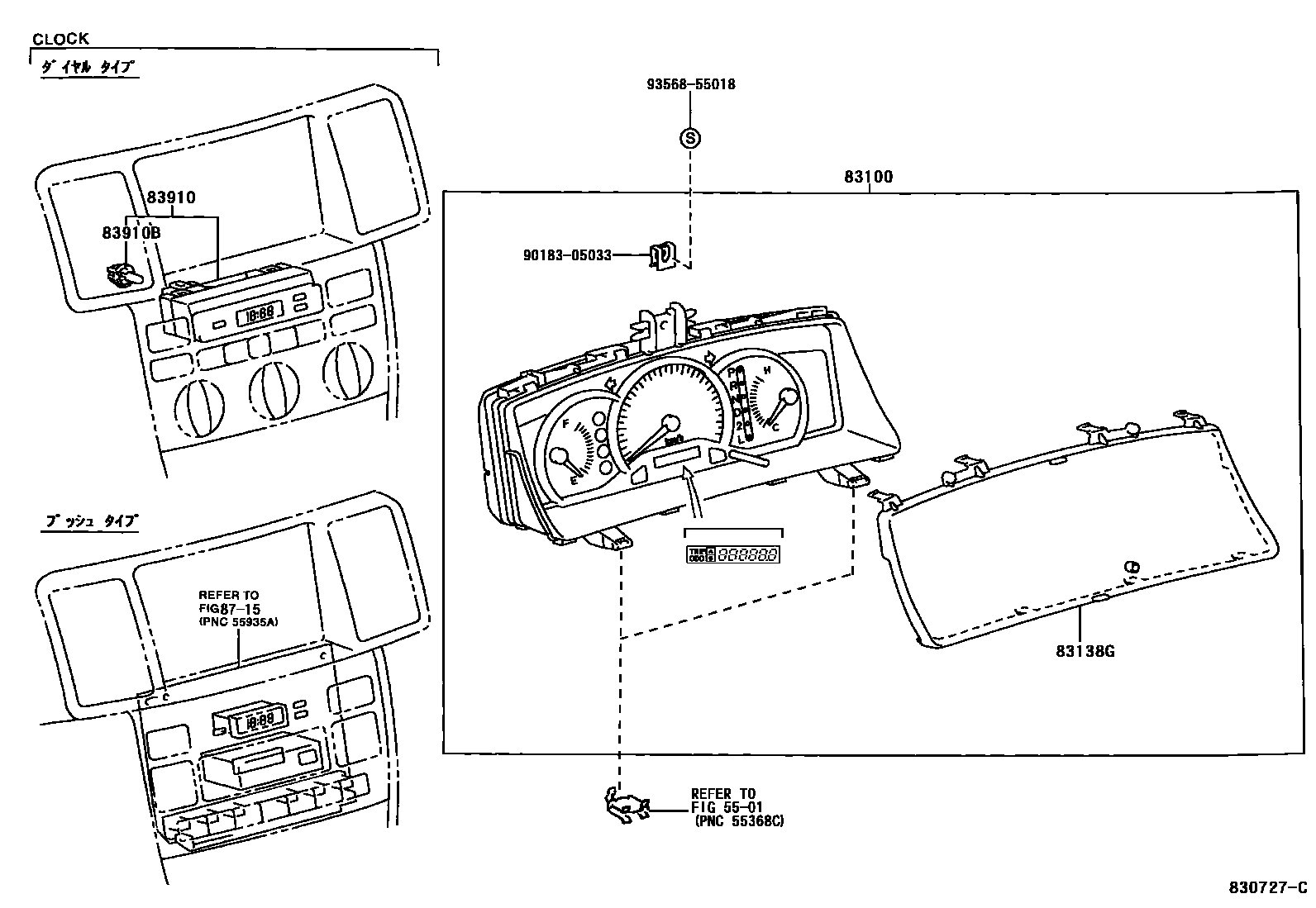

Parts diagram

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

83100METER ASSY, COMBINATION

main83800-13090i200105-200304

main83800-13160i200105-200304

main83800-13170i200105-200304

main83800-13180i200105-200304

main83800-13220i200304-200509

main83800-13230i200304-200509

main83800-13240i200304-200509

main83800-13250i200304-200509

main83800-13260i200509-200608

main83800-13261i200609

main83800-13270i200509-200608

main83800-13271i200609

main83800-13280i200509-200608

main83800-13281i200609

main83800-1E760i200105-200304

main83800-1H030i200105-200304

main83800-1H570i200304-200509

main83800-1H760i200304-200509

83138GGLASS, COMBINATION METER

main83852-1E730i200304-200506

main83852-1E760i200105-200304

83910CLOCK ASSY

main83910-12580i200105-200304

83910BBULB, CLOCK INDICATOR

main90010-07018i200105-200304

main90010-07020i200304

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9018305033

main90183-05033

9356855018

main93568-55018

8 parts on this diagram · 2 diagrams in section

METER for Toyota COROLLA SPACIO

This section contains 8 genuine Toyota parts for the METER system of the Toyota COROLLA SPACIO. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, METER ASSY, COMBINATION, GLASS, COMBINATION METER, CLOCK ASSY, BULB, CLOCK INDICATOR.
