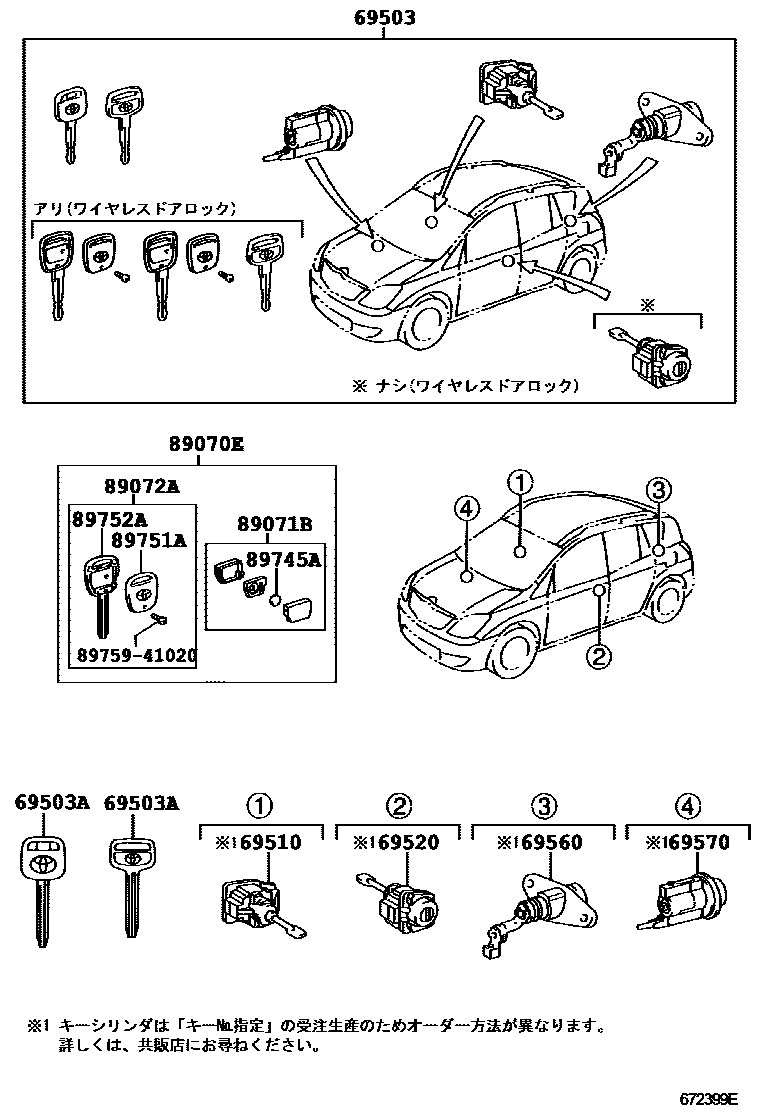

Toyota COROLLA SPACIO — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-13620i200105-200304

main69005-13790i200304

main69005-13860i200304

main69005-13870i200304

main89073-13030i200204-200304

69503AKEY, BLANK

main90999-00186×2i200105-200304

main90999-00199×2i200105-200304

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-12310i200105-200304

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-12300i200105-200304

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-13130i200105-200304

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-13120i200105-200304

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-44070i200105-200304

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-12021i200105-200304

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-47020i200105-200304

89745ABATTERY, TRANSMITTER

main89745-26010i200105-200304

89751ACOVER, TRANSMITTER HOUSING

main89751-44010i200105-200304

89752ACASE, TRANSMITTER HOUSING

main89752-46020i200105-200304

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

13 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota COROLLA SPACIO

This section contains 19 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA SPACIO. Key components include: CYLINDER SET, LOCK, KEY, BLANK, CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, FRONT DOOR LOCK, LH, CYLINDER ASSY, BACK DOOR LOCK.
