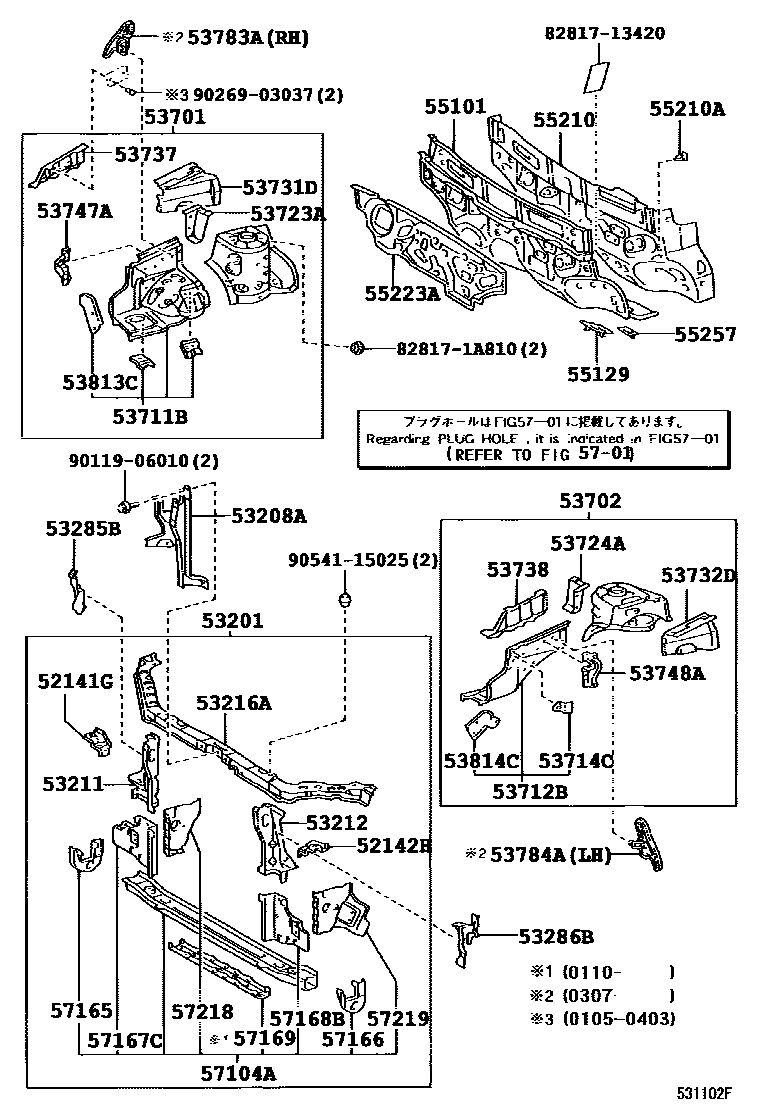

Toyota COROLLA SPACIO — FRONT FENDER APRON & DASH PANEL

52141GSTAY, FRONT BUMPER, RH

main52141-13040i200105-200304

52142HSTAY, FRONT BUMPER, LH

main52142-13040i200105-200304

53201SUPPORT SUB-ASSY, RADIATOR

main53201-13040i200105-200304

main53201-13080i200304-200706

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-13050i200105-200706

53211SUPPORT, RADIATOR, RH

main53211-12410i200105-200304

53212SUPPORT, RADIATOR, LH

main53212-12350i200105-200304

53216ASUPPORT, RADIATOR, UPPER

main53205-13030i200304

main53216-13900i200105-200304

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-13010i200105-200304

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-13010i200105-200304

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-13040i200105-200706

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-13030i200105-200706

53711BAPRON, FRONT FENDER, FRONT RH

main53711-13900i200105-200205

main53711-13902i200205-200304

53712BAPRON, FRONT FENDER, FRONT LH

main53712-13900i200105-200205

main53712-13902i200205-200304

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-12150i200105-200205

main53714-13020i200205-200304

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-12080i200105-200304

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53724-12070i200105-200304

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12160i200105-200304

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12140i200105-200304

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-13020i200105-200304

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-13020i200105-200304

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-13010i200105-200304

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-13010i200105-200304

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-13020i200307

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-13010i200307

53813CEXTENSION, FRONT FENDER, RH

main53813-13010i200105-200304

53814CEXTENSION, FRONT FENDER, LH

main53814-13010i200105-200304

55101PANEL SUB-ASSY, DASH

main55101-13120i200105-200706

main55101-13210i200108-200706

55129COVER, DASH PANEL HOLE

main55129-32030i200105-200304

main55139-32010i200105-200304

55210INSULATOR ASSY, DASH PANEL

main55210-13020i200105-200304

main55210-13040i200108-200304

55210ACLIP

main90467-10005-B0i200105-200111

MD.CHARCOAL,TRIM0#

main90467-10005-B0i200111-200305

main90467-10005-B0i200105-200111

MD.CHARCOAL,TRIM1#

main90467-10005-C0i200111-200706

BLACK,TRIM1#

main90467-10005-C0i200304-200706

BLACK,TRIM0#,1#

main90467-10005-C0i200111-200304

BLACK,TRIM0#

55223AINSULATOR, DASH PANEL, OUTER

main55223-12090i200105-200304

55257COVER, DASH PANEL OPENING

main55257-32010i200105-200304

5701HOLE PLUG

→ Go to FIG 57-01

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-12110i200105-200110

main57104-12170i200110-200111

main57104-12250i200111-200304

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57165-12070i200105-200304

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57166-12020i200105-200304

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-12110i200105-200304

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-12110i200105-200304

57169MEMBER, FRONT FLOOR, FRONT RH

main57169-12020i200110-200304

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-12010i200105-200110

main57218-12020i200110-200208

main57218-12030i200208-200304

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-12010i200105-200208

main57219-12030i200208-200304

8281713420PROTECTOR, WIRING HARNESS, NO.1

main82817-13420

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9011906010

main90119-06010

9026903037

main90269-03037

9054115025

main90541-15025

46 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota COROLLA SPACIO

This section contains 46 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota COROLLA SPACIO. Key components include: STAY, FRONT BUMPER, RH, STAY, FRONT BUMPER, LH, SUPPORT SUB-ASSY, RADIATOR, SUPPORT SUB-ASSY, HOOD LOCK, SUPPORT, RADIATOR, RH.
