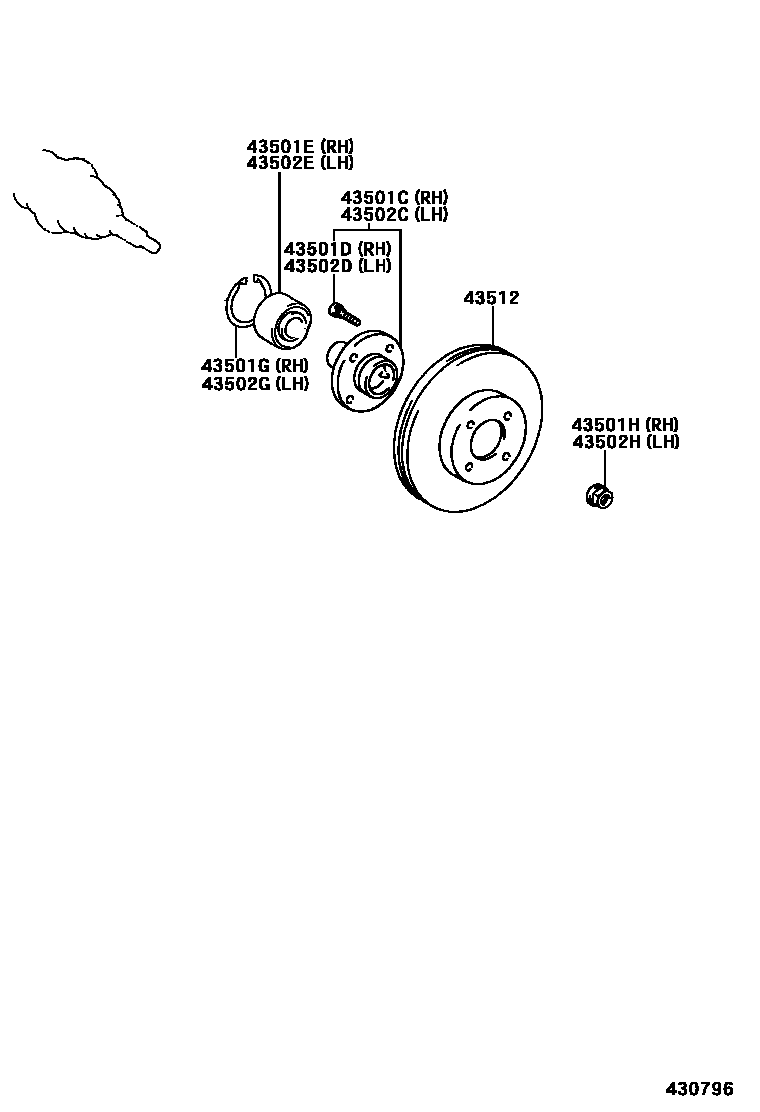

Toyota COROLLA SPACIO — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-12140i200105-200304

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4i200105-200304

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066i200105-200304

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002i200105-200304

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200105-200304

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-12140i200105-200304

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4i200105-200304

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066i200105-200304

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002i200105-200304

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200105-200304

43512DISC, FRONT

main43512-12610×2i200105-200304

main43512-12620×2i200105-200304

main43512-12621×2i200406-200706

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA SPACIO

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA SPACIO. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH), NUT (FOR FRONT AXLE SHAFT RH).
