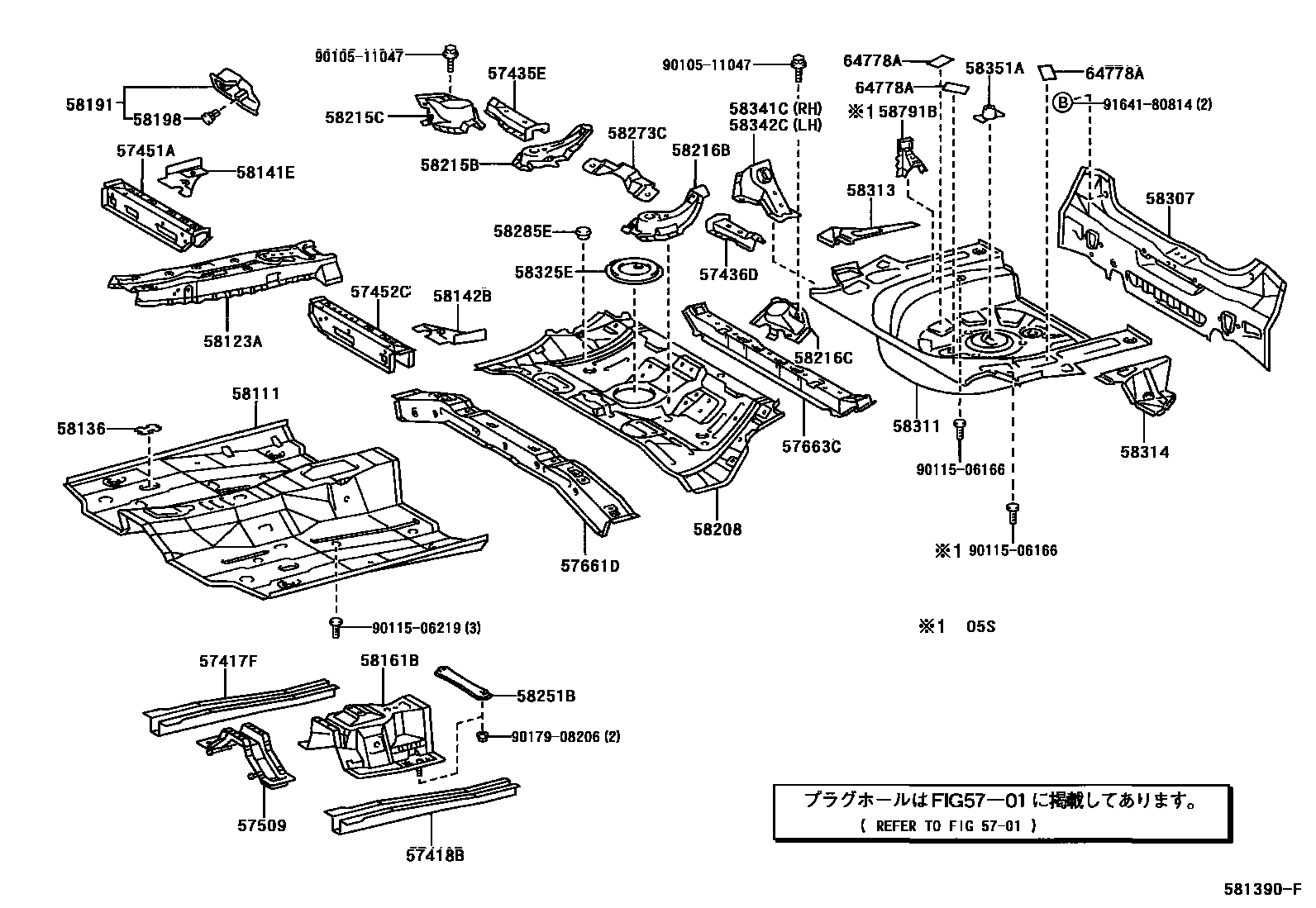

Toyota COROLLA SPACIO — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5701

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-13020iNZE121,ZZE12#200304

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-13020iNZE121,ZZE12#200105-200304

57435EMEMBER, CENTER FLOOR SIDE, RH

main57435-13020iNZE121,ZZE12#200105-200304

57436DMEMBER, CENTER FLOOR SIDE, LH

main57436-13010iNZE121,ZZE12#200304

57451AMEMBER, FRONT FLOOR CROSS, RH

main57051-12020iNZE121,ZZE122200401

main57051-12040iZZE124200401

main57451-12191iNZE121,ZZE122200105-200211

main57451-12192iNZE121,ZZE122200211-200304

main57451-12201iZZE124200108-200211

main57451-12202iZZE124200304-200401

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-12021iNZE121,ZZE122200105-200304

main57452-12031iZZE124200108-200304

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-12040iNZE121,ZZE122200304

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-13120iNZE121,ZZE122200105-200304

main57407-13130iZZE124200108-200304

57663CMEMBER, REAR FLOOR CROSS, CENTER

main57663-13010iZZE124200108-200304

main57663-13020iNZE121,ZZE122200304

58111PAN, FRONT FLOOR

main58111-12902iNZE121,ZZE122200304

main58111-12903iZZE124200304

sub58111-12292

sub90950-01959

main58111-13900iNZE121,ZZE122200105-200304

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12040×2iNZE121,ZZE122200304

main58013-12050×2iZZE124200304

58136COVER, FRONT FLOOR HOLE

main58136-33010×4iNZE121,ZZE12#200105-200304

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-13040iNZE121,ZZE12#200105-200304

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-13020iNZE121,ZZE12#200105-200304

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main57805-12070iNZE121,ZZE122200105-200304

main57805-12091iZZE124200108-200304

main57805-12092iZZE124200404

main57805-12140iNZE121,ZZE122200404

58191FOOTREST, FRONT FLOOR

main58191-13020iNZE121,ZZE12#200105-200304

58198CLIP, FOOTREST

main58198-13020×2iNZE121,ZZE12#200105-200304

58208PAN, CENTER FLOOR

main58211-13270iNZE121,ZZE122200105-200304

sub58211-13300

main58211-13280iZZE124200108-200304

58215BBRACKET, REAR SEAT MOUNTING, RH

main57805-13040iNZE121,ZZE12#200105-200304

58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH

main57806-13040iNZE121,ZZE12#200304

58216BBRACKET, REAR SEAT MOUNTING, LH

main57807-13010iNZE121,ZZE12#200105-200304

58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH

main57808-13010iNZE121,ZZE12#200105-200304

58251BBRACE, FLOOR PANEL, FRONT

main58251-12030iNZE121,ZZE122200105-200304

58273CREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR

main58273-13020iNZE121,ZZE12#200105-200304

58285ECOVER, CENTER FLOOR HOLE

main58285-13040×2iNZE121,ZZE122200105-200304

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-13160iZZE124200108-200304

main58307-13170iNZE121,ZZE122200105-200304

58311PAN, REAR FLOOR

main58311-13271iZZE124200402

main58311-13902iNZE121,ZZE122200304-200402

sub90950-01958

main58311-13904iZZE124200304-200402

sub90950-01958

main58311-13905iZZE124..05S200108-200304

main58311-13909iNZE121,ZZE122..05S200105-200304

sub90950-01958

main58311-13910iZZE124..05S200108-200304

main58311-13915iNZE121,ZZE122200402

58313PANEL, REAR FLOOR SIDE, RH

main58313-13160iNZE121,ZZE12#200304

main58313-13170iNZE121,ZZE12#..05S200105-200304

main58313-13180iNZE121,ZZE12#..07S200105-200304

main58313-13190iNZE121,ZZE12#..05S200105-200304

58314PANEL, REAR FLOOR SIDE, LH

main58314-13150iNZE121,ZZE12#..07S200105-200304

main58314-13160iNZE121,ZZE12#..05S200105-200304

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12110iNZE121,ZZE122200304

main58325-32050iZZE124200304

58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH

main58341-13040iNZE121,ZZE122200105-200304

main58341-13050iZZE124200108-200304

58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH

main58342-13040iNZE121,ZZE122200105-200304

main58342-13050iZZE124200108-200304

58351ABRACKET, SPARE WHEEL CARRIER

main58351-13050iZZE124200108-200304

main58351-33010iNZE121,ZZE122200105-200304

58791BCARRIER, JACK

main58791-13090iNZE121,ZZE122..05S200105-200304

64778APROTECTOR, SPARE WHEEL

main64778-20080×3iNZE121,ZZE122200105-200304

sub64778-21010

9010511047

main90105-11047

9011506166

main90115-06166

9011506219

main90115-06219

9017908206

main90179-08206

9164180814

main91641-80814

41 parts on this diagram · 2 diagrams in section
