Toyota COROLLA SPACIO — DISTRIBUTOR

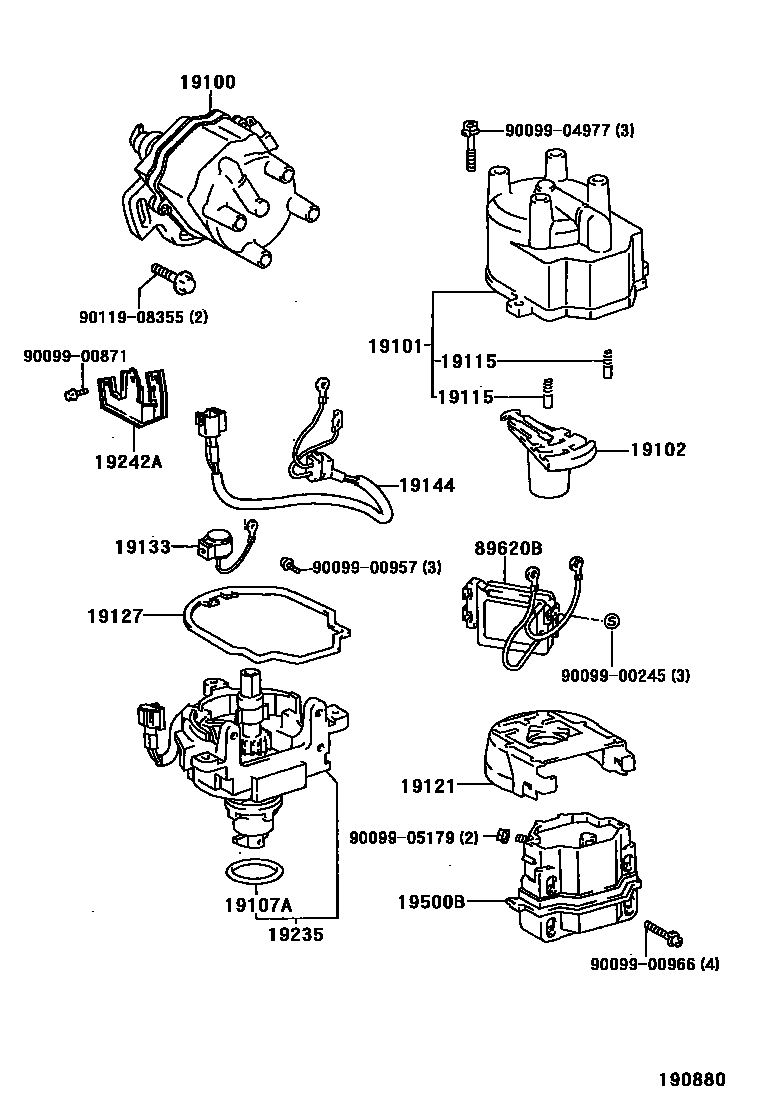

Parts diagram

19100DISTRIBUTOR ASSY

main19020-15180i199701

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11060i199701

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11370i199701

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14127i199701

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010i199701

19121COVER, DUST PROOF

main19121-11080i199701

19127PACKING, DUST PROOF

main19127-15120i199701

19133CONDENSER, DISTRIBUTOR

main19133-16240i199701

19144LEAD, DISTRIBUTOR BREAKER

main19144-16020i199701

19235HOUSING, DISTRIBUTOR

main19235-16120i199701

19242ACLAMP, CORD, NO.2

main19242-15180i199701

19500BCOIL ASSY, IGNITION

main90919-02164i199701

89620BIGNITER ASSY

main89620-16260i199701

9009900245

main90099-00245

9009900871

main90099-00871

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

9011908355

main90119-08355

20 parts on this diagram · 1 diagram in section

DISTRIBUTOR for Toyota COROLLA SPACIO

This section contains 20 genuine Toyota parts for the DISTRIBUTOR system of the Toyota COROLLA SPACIO. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING, PIECE, DISTRIBUTOR CAP, CENTER.
