Toyota COROLLA SPACIO — ASH RECEPTACLE

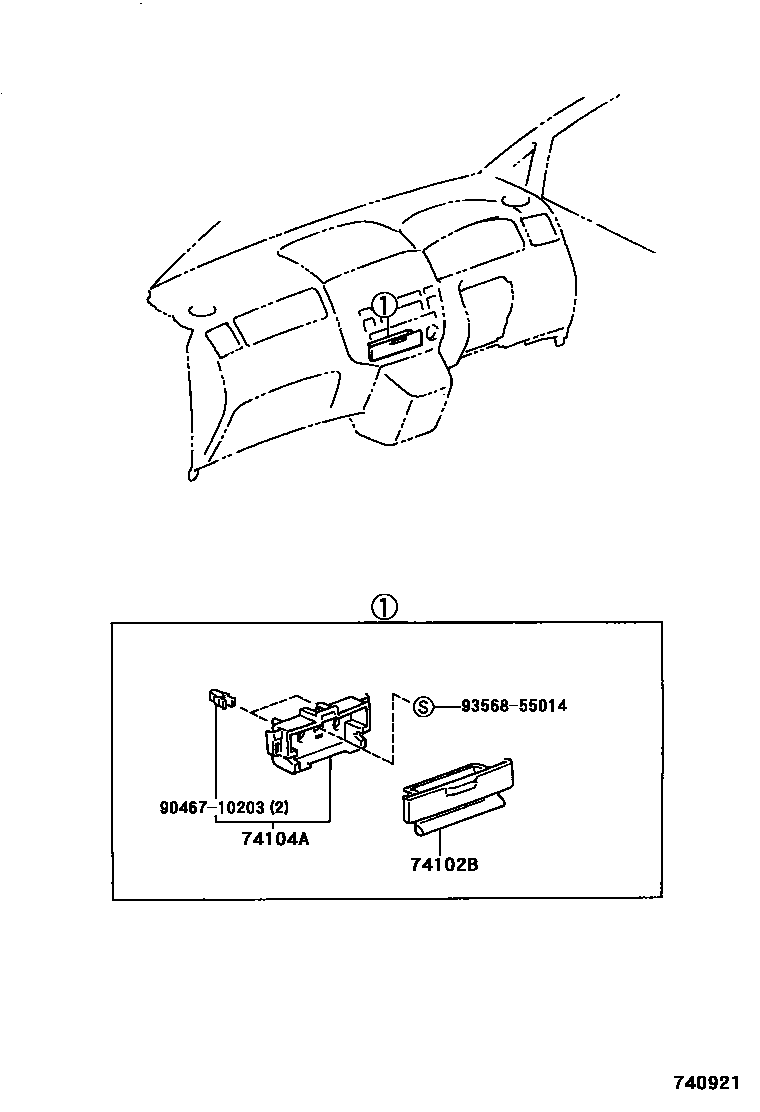

Parts diagram
74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE
main74102-13020-B0i200105-200304
DK.GRAY,TRIM0#
main74102-13030-B0i200204-200304
main74102-13040-B0i200304-200305
main74102-13060-B0i200304-200306
main74102-13070-B0i200306-200706
DK.GRAY,TRIM0#,1#
main74102-13110-B0i200306-200706
74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE
main74104-13020i200105-200304
9046710203
main90467-10203
9356855014
main93568-55014

4 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota COROLLA SPACIO

This section contains 4 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota COROLLA SPACIO. Key components include: BOX SUB-ASSY, FRONT ASH RECEPTACLE, RETAINER SUB-ASSY, FRONT ASH RECEPTACLE.
