Toyota COROLLA SPACIO — ARMREST & VISOR

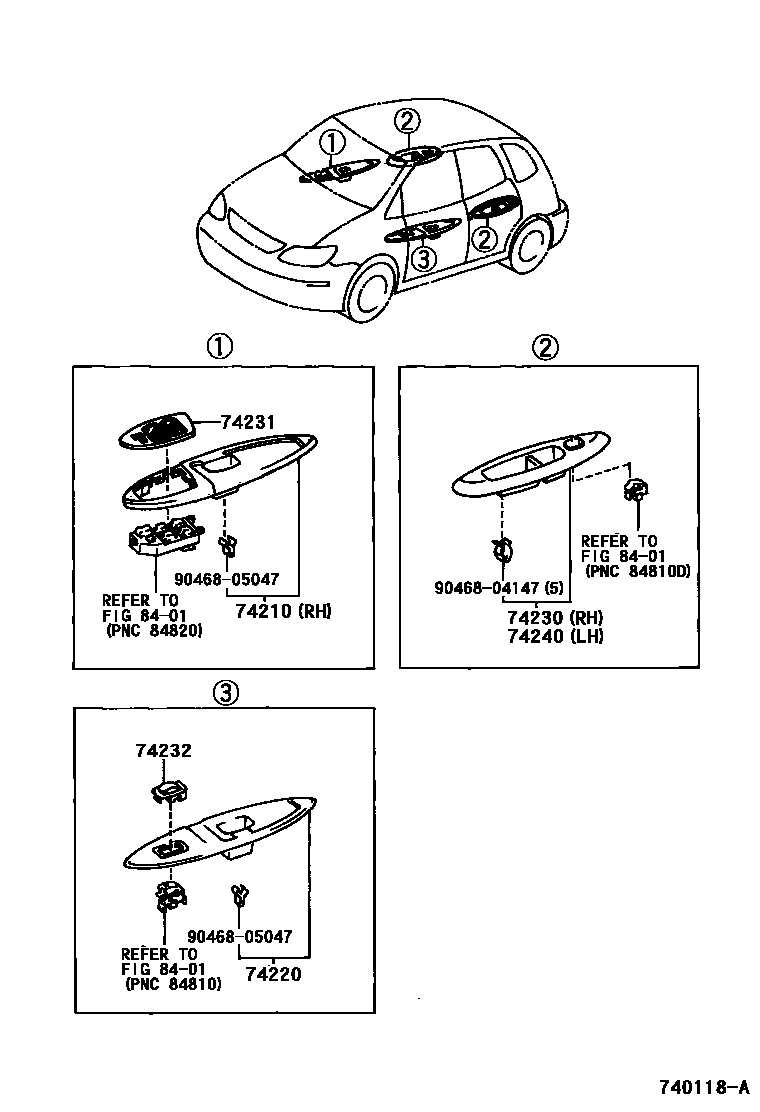

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-13010-A0i200004
main74210-13010-B0i199701
MD.CHARCOAL,TRIM1#
main74210-13020-A0i199809-199904
CONCEPT BY MIKIHOUSE *(M),IVORY,TRIM00
74220ARMREST ASSY, FRONT, LH
main74220-13010-A0i199804-199812
main74220-13010-B0i199701
MD.CHARCOAL,TRIM1#
main74220-13020-A0i199812
CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00
74230ARMREST ASSY, REAR, RH
main74250-13010-B0i199701
MD.CHARCOAL,TRIM1#
main74250-13020-A0i199804-199812
main74250-13020-B0i199707
MD.CHARCOAL,TRIM1#
main74250-13030-A0i199809-199904
CONCEPT BY MIKIHOUSE *(M),IVORY,TRIM00
main74250-13040-A0i199812
CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-13020-A0i200004
main74231-13020-B0i199701
MD.CHARCOAL,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main84656-32020-A0i199804-199812
main84656-32020-B2i199701
MD.CHARCOAL,TRIM1#
74240ARMREST ASSY, REAR, LH
main74260-13010-B0i199701
MD.CHARCOAL,TRIM1#
main74260-13020-A0i199804-199812
main74260-13020-B0i199707
MD.CHARCOAL,TRIM1#
main74260-13030-A0i199809-199904
CONCEPT BY MIKIHOUSE *(M),IVORY,TRIM00
main74260-13040-A0i199812
CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9046804147
main90468-04147
9046805047
main90468-05047

9 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota COROLLA SPACIO

This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA SPACIO. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
