Toyota COROLLA SPACIO — ALTERNATOR

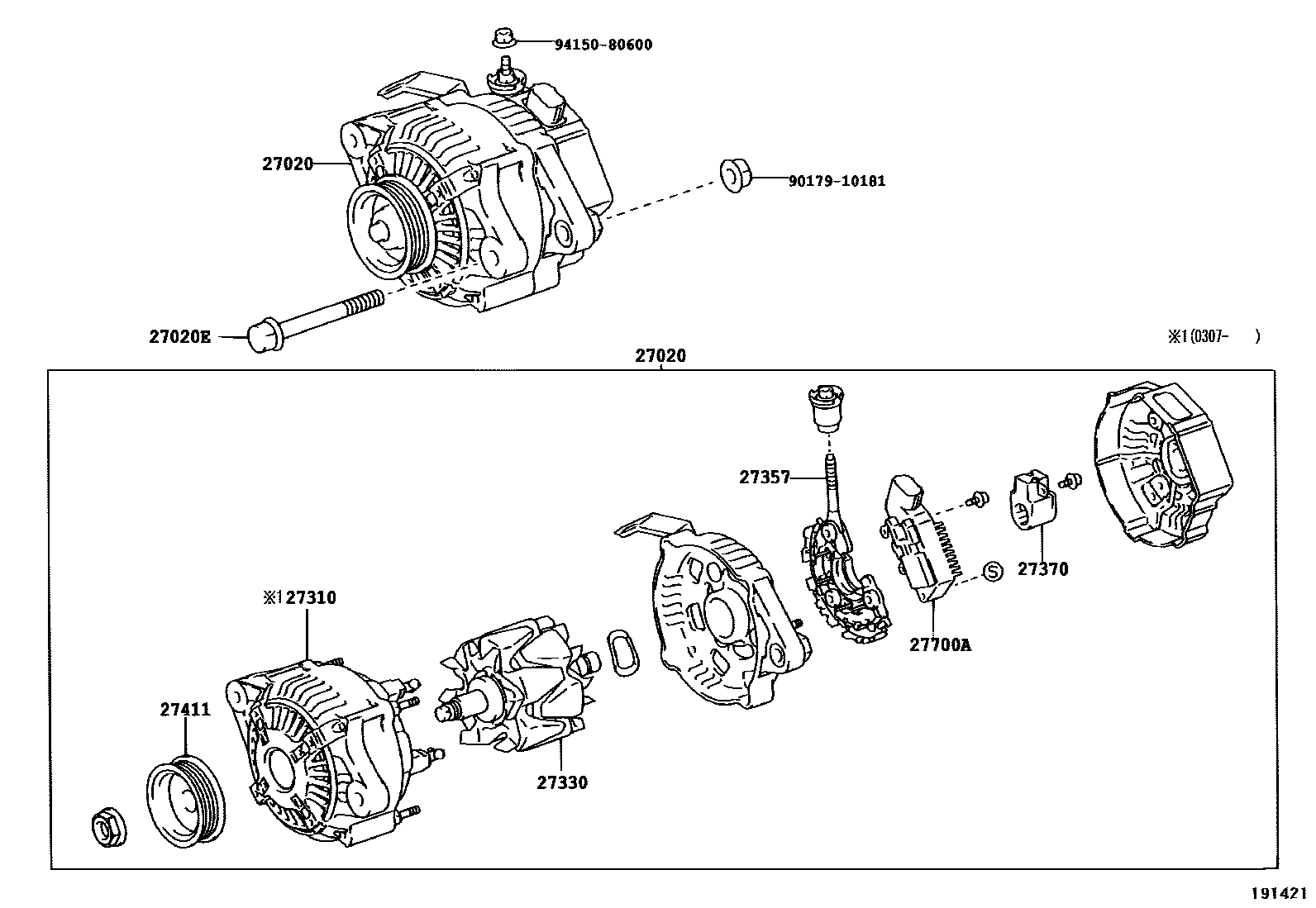

Parts diagram

27020ALTERNATOR ASSY

main27060-21090i200105-200304

main27060-22040i200304

27020EBOLT(FOR ALTERNATOR)

main90105-10038i200304

main90105-10075i200105-200304

main91511-80830i200304

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-21040i200307

27330ROTOR ASSY, ALTERNATOR

main27330-74550i200304

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22050i200304

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i200105-200304

27411PULLEY, ALTERNATOR

main27411-11060i200304

main27411-50050i200105-200304

27700AREGULATOR ASSY, GENERATOR

main27700-20050i200105-200304

main27700-21040i200105-200304

9017910181

main90179-10181

9415080600

main94150-80600

10 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota COROLLA SPACIO

This section contains 10 genuine Toyota parts for the ALTERNATOR system of the Toyota COROLLA SPACIO. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), FRAME ASSY, DRIVE END, ALTERNATOR, ROTOR ASSY, ALTERNATOR, HOLDER, ALTERNATOR, W/RECTIFIER.
