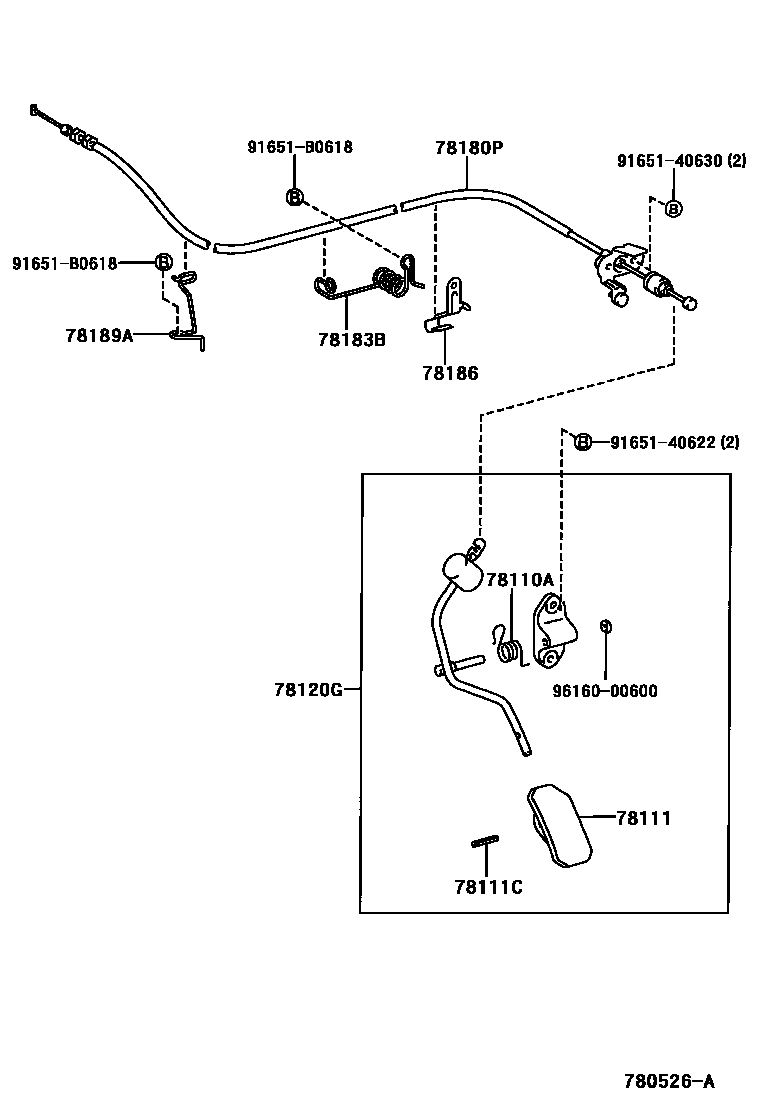

Toyota COROLLA SPACIO — ACCELERATOR LINK
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111CPIN (FOR ACCELERATOR PEDAL)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78183BCLAMP, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2
9165140622
main91651-40622
9165140630
main91651-40630
91651B0618
main91651-B0618
9616000600
main96160-00600
12 parts on this diagram · 2 diagrams in section
ACCELERATOR LINK for Toyota COROLLA SPACIO
This section contains 14 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota COROLLA SPACIO. Key components include: SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, PIN (FOR ACCELERATOR PEDAL), ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR CONTROL.
