Toyota COROLLA SPACIO — ABS & VSC

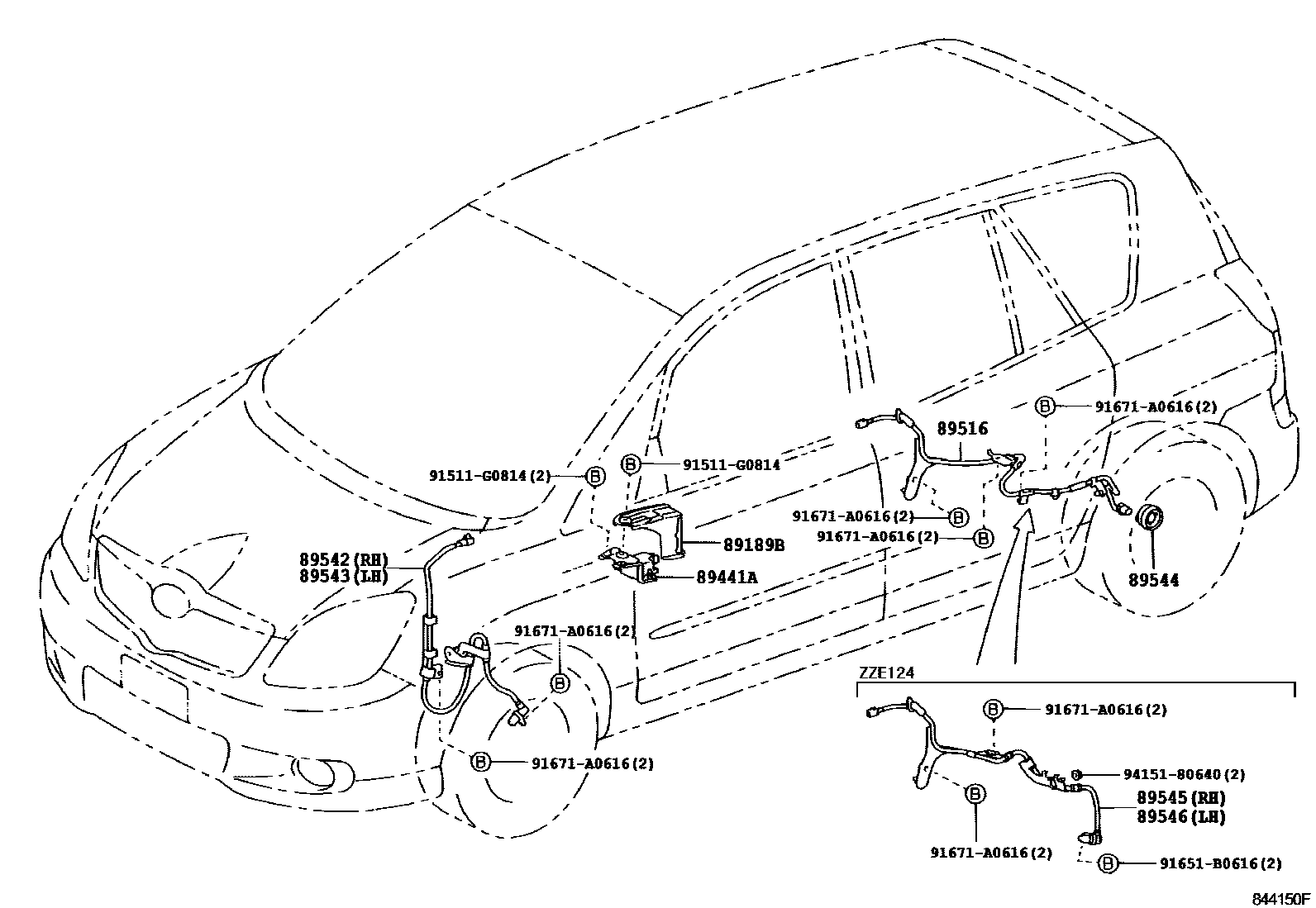

Parts diagram

89189BBRACKET, YAWRATE SENSOR

main89189-12020i200108-200304

89441ASENSOR, DECELERATION

main89440-12080i200108-200304

89516WIRE, SKID CONTROL SENSOR

main89516-12010i200304

main89516-12020i200105-200304

89542SENSOR, SPEED, FRONT RH

main89542-12070i200105-200304

89543SENSOR, SPEED, FRONT LH

main89543-12070i200304

89544SENSOR, SKID CONTROL

main89544-20010×2i200401-200706

main89544-32030×2i200105-200304

89545SENSOR, SPEED, REAR RH

main89545-12070i200108-200304

main89545-13030i200609

89546SENSOR, SPEED, REAR LH

main89546-12070i200108-200304

main89546-12080i200404-200608

main89546-13030i200609

91511G0814

main91511-G0814

91651B0616

main91651-B0616

91671A0616

main91671-A0616

9415180640

main94151-80640

12 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota COROLLA SPACIO

This section contains 12 genuine Toyota parts for the ABS & VSC system of the Toyota COROLLA SPACIO. Key components include: BRACKET, YAWRATE SENSOR, SENSOR, DECELERATION, WIRE, SKID CONTROL SENSOR, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH.
