Toyota COROLLA SPACIO — ABS & VSC

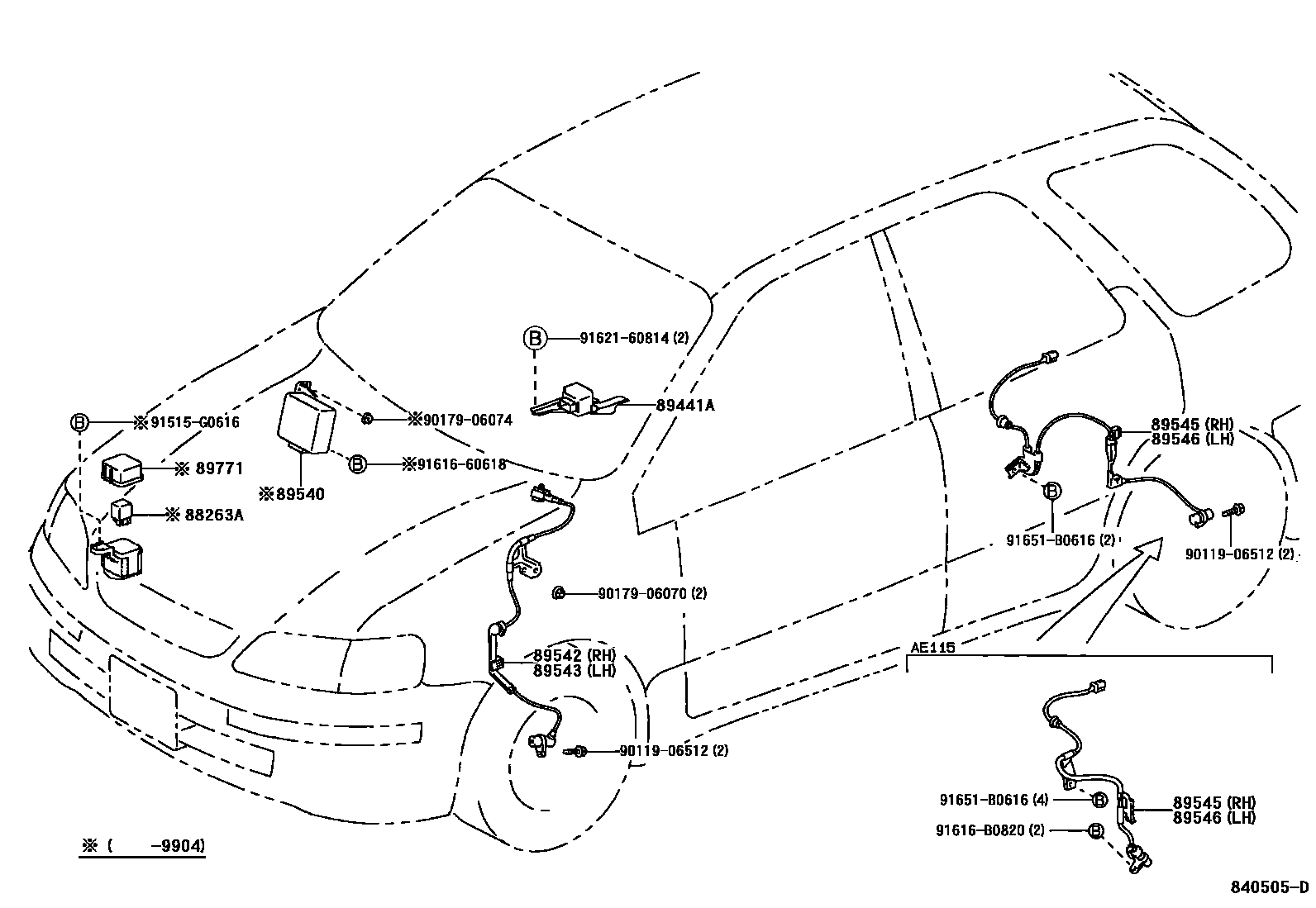

Parts diagram

88263ARELAY, SKID CONTROL

main88263-24030i199701-199904

89441ASENSOR, DECELERATION

main89440-13020i199707

89540COMPUTER ASSY, SKID CONTROL

main89540-13020i199701-199804

main89540-13030i199707-199804

main89540-13040i199804-199904

main89540-13050i199804-199904

89542SENSOR, SPEED, FRONT RH

main89542-12040i199701

89543SENSOR, SPEED, FRONT LH

main89543-12040i199701

89545SENSOR, SPEED, REAR RH

main89545-12030i199707

main89545-12040i199701

89546SENSOR, SPEED, REAR LH

main89546-12030i199707

main89546-12040i199701

89771COVER, ABS RELAY BLOCK, UPPER

main89771-13010i199701-199904

9011906512

main90119-06512

9017906070

main90179-06070

9017906074

main90179-06074

91515G0616

main91515-G0616

9161660618

main91616-60618

91616B0820

main91616-B0820

9162160814

main91621-60814

91651B0616

main91651-B0616

16 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota COROLLA SPACIO

This section contains 16 genuine Toyota parts for the ABS & VSC system of the Toyota COROLLA SPACIO. Key components include: RELAY, SKID CONTROL, SENSOR, DECELERATION, COMPUTER ASSY, SKID CONTROL, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH.
