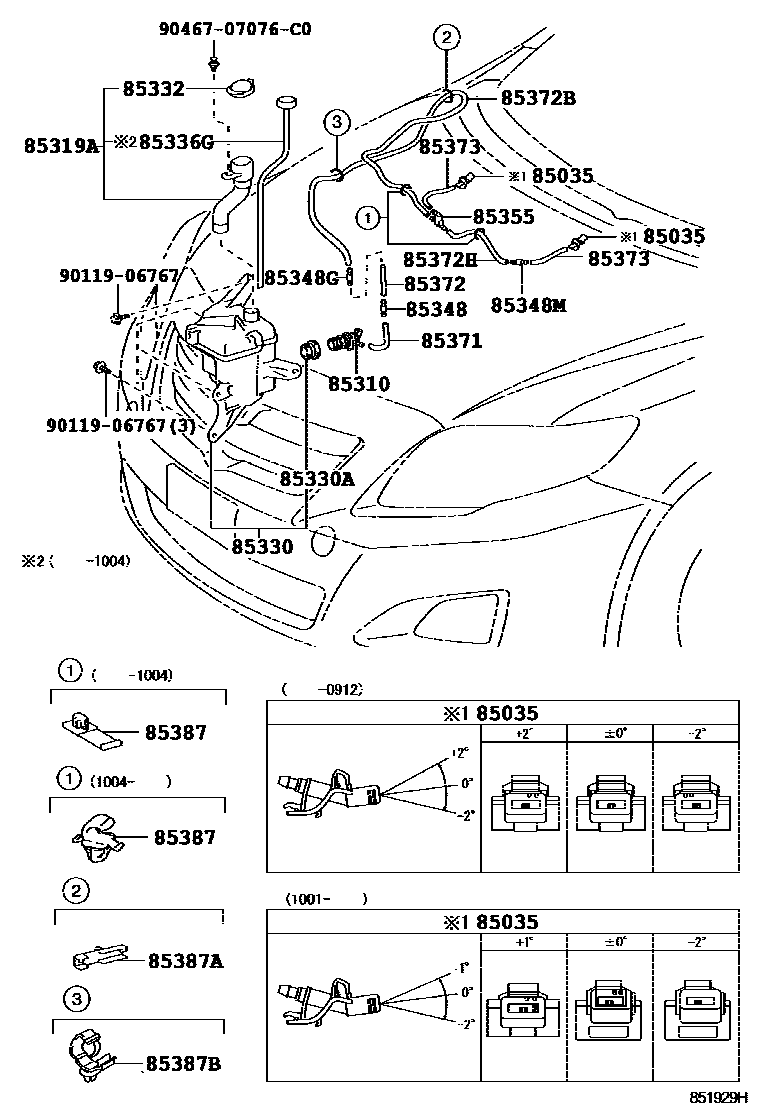

Toyota COROLLA SED — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2i200812-200912

ANGLE 0

main85381-12310×2i200703-200812

ANGLE -2

main85381-12320×2i200703-200812

ANGLE +2

main85381-12350×2i201004

ANGLE +1

main85381-30110×2i201001-201002

ANGLE -2

main85381-30150×2i201001-201002

ANGLE 0

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02030supersedes 85330-21010i201004

HEADLAMP CLEANER-WITH

main85330-21010i200703-200812

85319AHOSE, INLET

main85319-12570i200812-201004

85330JAR ASSY, WINDSHIELD WASHER

main85315-12570i200703-200812

main85396-02070supersedes 85315-12570i201004

HEADLAMP CLEANER-WITH

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201004

main90069-20005supersedes 85336-60300i201004

HEADLAMP CLEANER-WITH

85332CAP, WINDSHIELD WASHER JAR

main85316-52190i200812-201004

main85356-02070supersedes 85316-52190i201004

HEADLAMP CLEANER-WITH

85336GGAGE, WATER LEVEL

main85313-20130i200703-200812

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050supersedes 85375-10260i201004

HEADLAMP CLEANER-WITH

main85375-10260i200703-200812

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i200812-201004

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i200703-200812

85355VALVE, WINDSHIELD WASHER HOSE

main85321-12040i201207

HEADLAMP CLEANER-WITH

main85321-28020i200703-200812

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-16009supersedes 90099-33080i201004

HEADLAMP CLEANER-WITH

main90099-33080i200812-201004

L=1450(*H,L=80)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200703-200812

L=1450(*H,L=80)

main90099-33803i201004

L=1920; L=1920,HEADLAMP CLEANER-WITH

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201004

L=1450(*H,L=350); L=1450(*H,L=350),HEADLAMP CLEANER-WITH

main90099-33589i200703-200812

L=3300(*H,L=1830)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i201004

L=1800(*H,L=350)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200703-200812

L=1450(*H,L=165); L=1450(*H,L=165),HEADLAMP-DISCHARGE

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-3A540×2i200703-200812

main85371-12040×2i201004

85387ACLAMP, WASHER, NO.2

main85387-12840i200703-200812

85387BCLAMP, WASHER, NO.3

main82711-1E350i200703-200812

9011906767

main90119-06767

9046707076C0

main90467-07076C0

21 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota COROLLA SED

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA SED. Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET, JAR ASSY, WINDSHIELD WASHER.
