Toyota COROLLA SED — PARTIAL ENGINE ASSEMBLY

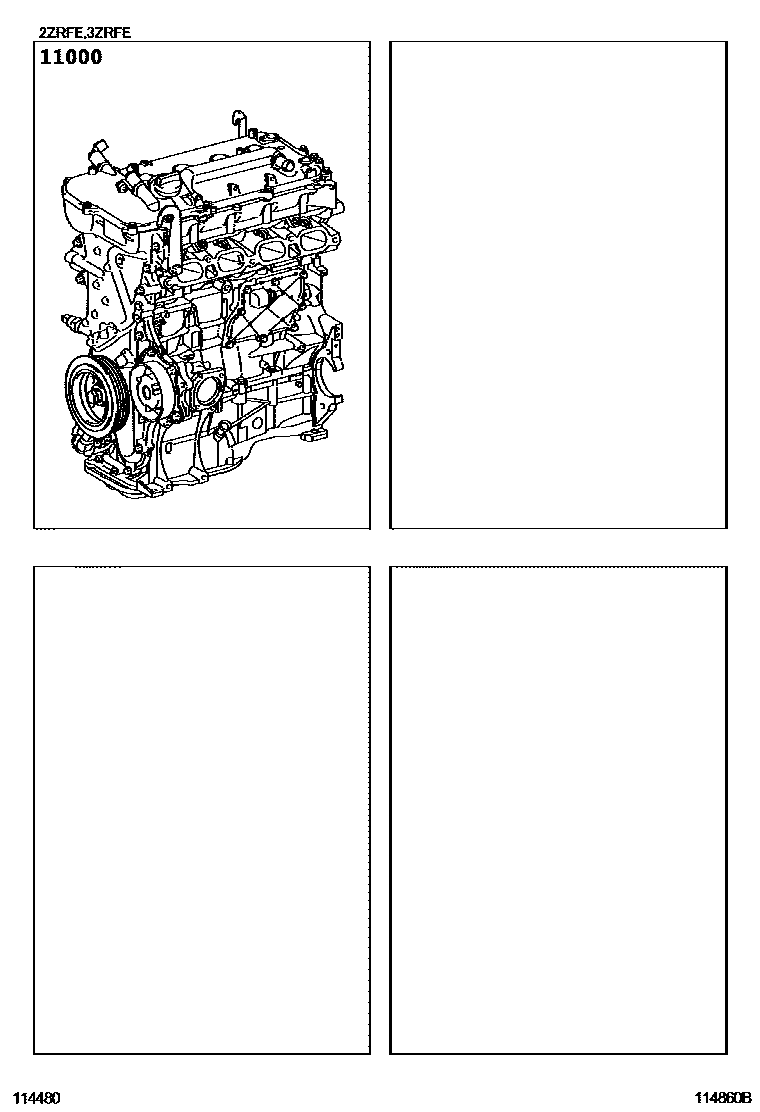

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0T310i201110-201308
*341
main19000-0T311i201308
(L)
main19000-37260i200703-200812
main19000-37291i201004-201104
sub19000-37293
main19000-37450i201004-201110
sub19000-37452

1 parts on this diagram · 1 diagram in section
