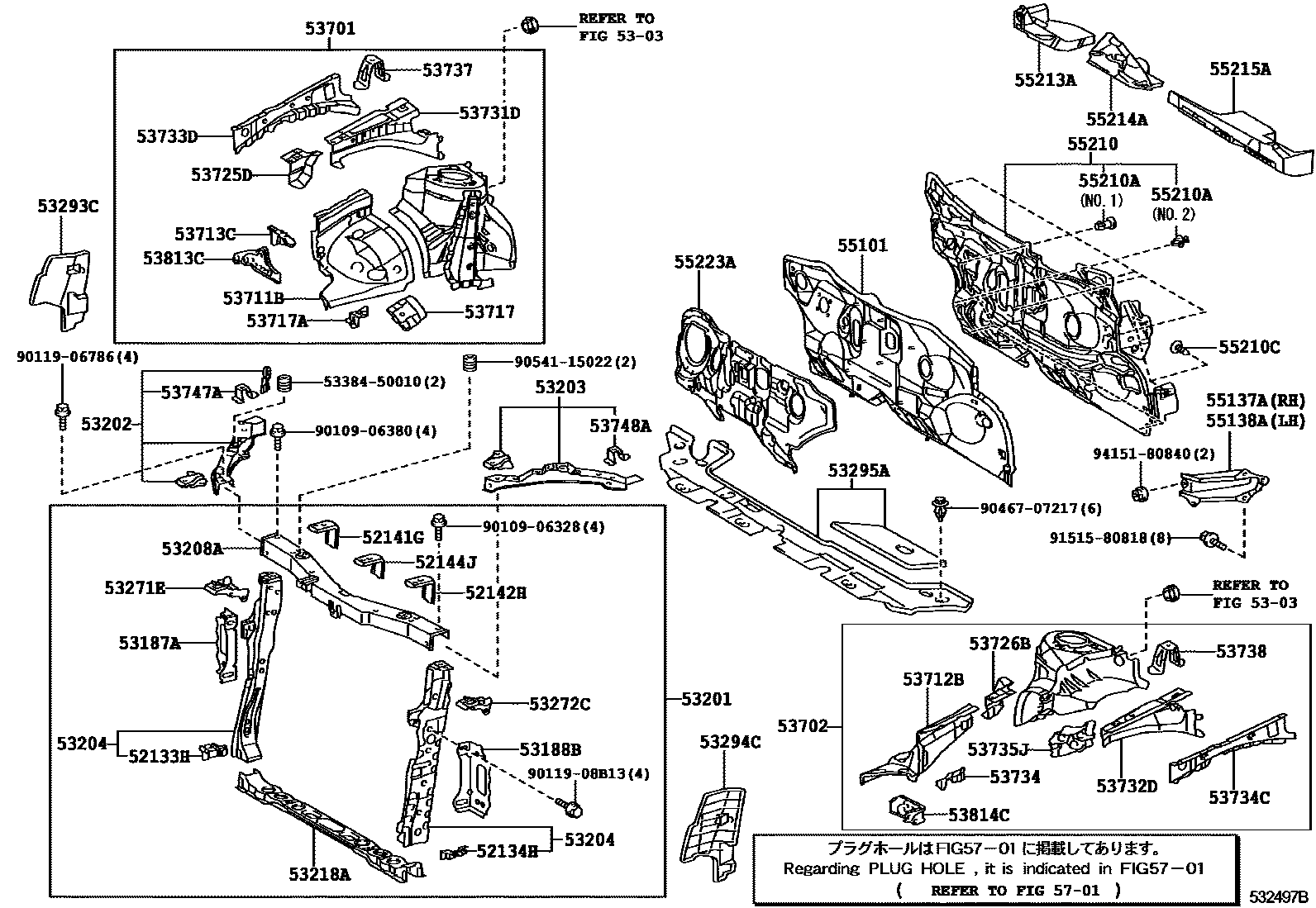

Toyota COROLLA SED — FRONT FENDER APRON & DASH PANEL

52133HBRACKET, FRONT BUMPER, RH

main52133-12150i200812-201004

52134HBRACKET, FRONT BUMPER, LH

main52134-12090i200703-200812

52141GSTAY, FRONT BUMPER, RH

main52081-12020i200703-200812

52142HSTAY, FRONT BUMPER, LH

main52082-12020i200703-200812

52144JSTAY, FRONT BUMPER, CENTER

main52085-12010i200703-200812

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

53187ASTAY, RADIATOR SUPPORT, RH

main53187-12030i200703-200812

53188BSTAY, RADIATOR SUPPORT, LH

main53188-12030i200703-200812

53201SUPPORT SUB-ASSY, RADIATOR

main53201-12903i200812-201002

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-12490i200703-200812

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-12440i200812-201004

53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER

main53204-12060i200703-200812

main53209-12140i201004

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-12560i200812-201002

53218ASUPPORT, RADIATOR, LOWER

main53218-12901i200703-200812

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-12070i200703-200812

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-12040i200703-200812

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-12040i200703-200812

main53293-12110i201004

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-12060i200703-200812

main53294-12130i201004

53295ADEFLECTOR, RADIATOR UPPER AIR

main53140-12020i200703-200812

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-1A210i200703-200812

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-12A00i200703-200812

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12270i200703-200812

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12220i200703-200812

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-12160i200703-200812

53717PLATE, FENDER APRON, RH

main53717-12070i200703-200812

53717APLATE, FENDER APRON

main53718-12060i201004

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-12040i200812-201002

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-12040i200703-200812

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12170i200703-200812

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12150i200703-200812

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-12070i200703-200812

53734PATCH, FRONT FENDER APRON, NO.4

main53736-12070i200703-200812

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-12070i200703-200812

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-12070i200703-200812

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-12080i200703-200812

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53737-12080i200703-200812

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-12030i200703-200812

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-12040i200703-200812

53813CEXTENSION, FRONT FENDER, RH

main53813-12110i200812-201004

53814CEXTENSION, FRONT FENDER, LH

main53814-12060i201004

55101PANEL SUB-ASSY, DASH

main55101-12C30i201004-201311

main55101-12C40i201004-201311

55137ABRACE, DASH TO FRAME, RH

main55137-12050i200812-201002

55138ABRACE, DASH TO FRAME, LH

main55138-12020i200703-200812

55210INSULATOR ASSY, DASH PANEL

main55210-12560i200703-200812

55210ACLIP

main90467-11122×6i200812-201002

NO.1:REFER ILLUST.

main90467-11127×3i200703-200812

NO.2:REFER ILLUST.

55210CCLIP

main90467-08186-C0×4i200703-200812

BLACK

55213APAD, DASH PANEL SILENCER

main55213-12660i200703-200812

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-12020i200703-200812

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-12110i200703-200812

55223AINSULATOR, DASH PANEL, OUTER

main55223-12170i200703-200812

5701HOLE PLUG

→ Go to FIG 57-01

5338450010BAR, HOOD SILENCER SUPPORT

main53384-50010

9010906328

main90109-06328

9010906380

main90109-06380

9011906786

main90119-06786

9011908B13

main90119-08B13

9046707217

main90467-07217

9054115022

main90541-15022

9151580818

main91515-80818

9415180840

main94151-80840

60 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota COROLLA SED

This section contains 60 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota COROLLA SED. Key components include: BRACKET, FRONT BUMPER, RH, BRACKET, FRONT BUMPER, LH, STAY, FRONT BUMPER, RH, STAY, FRONT BUMPER, LH, STAY, FRONT BUMPER, CENTER.
