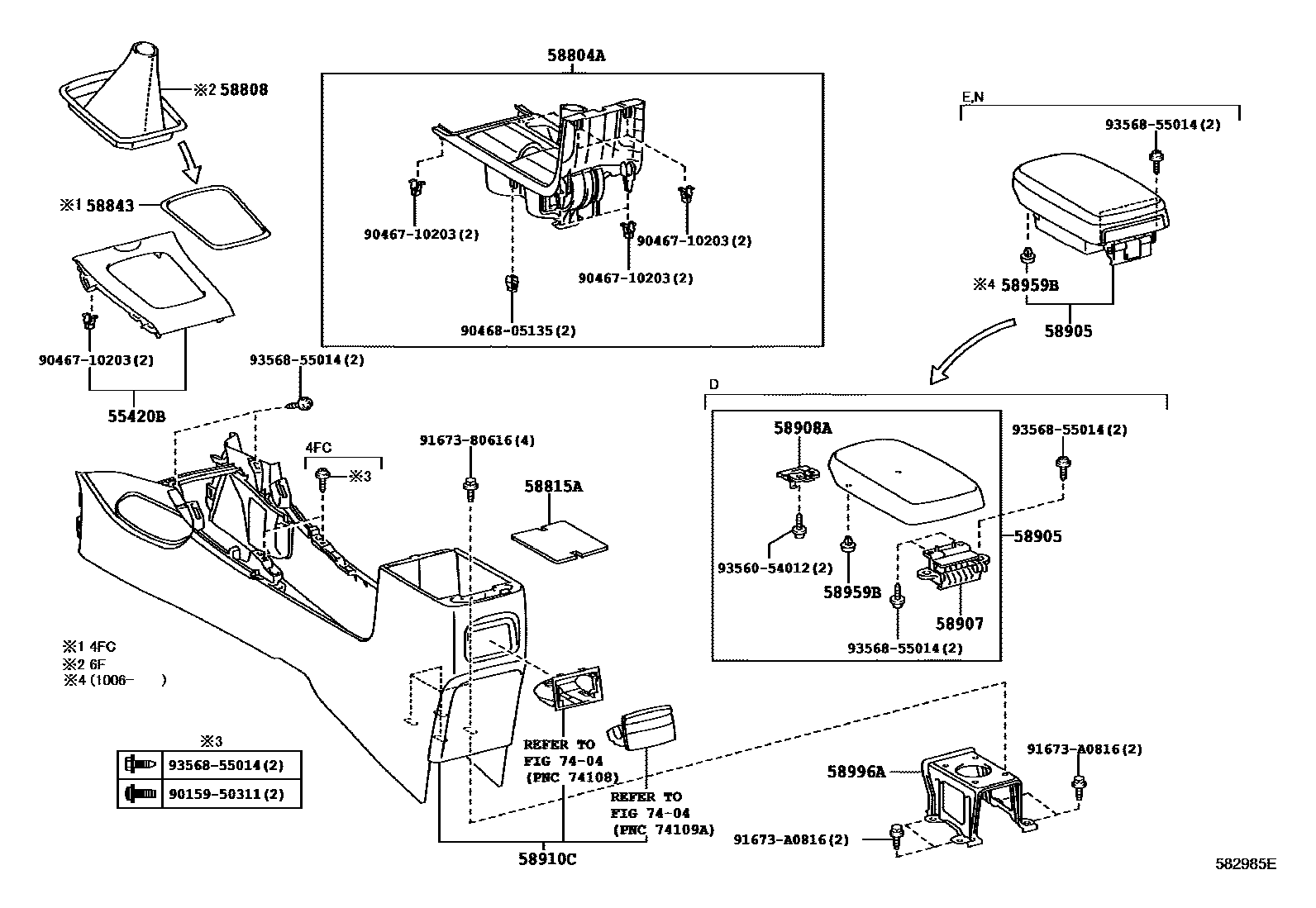

Toyota COROLLA SED — CONSOLE BOX & BRACKET

55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55420-12370iZRE152..N200703-200812

main55420-12400iZRE152..D200703-200812

main55420-12470iZRE15#..E,N201004-201311

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-12050-B1iZRE15#201004-201311

DK.GRAY,TRIM1#

main58804-12050-E1iZRE152..N200812-201004

GREGE,TRIM4#

main58804-12050-E2iZRE15#..E,N201004-201103

GREGE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12300-B0iZRE152..6F..D201004-201311

DK.GRAY,TRIM1#,4#

main58808-12300-E0iZRE152..6F..N200703-200812

ASH BROWN,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-12120iZRE152200703-200812

58843BEZEL, SHIFTING HOLE

main58843-12130iZRE152..4FC..N200703-200812

main58843-12140iZRE15#..4FC..(E,N)201004

main58843-12160iZRE152..4FC..D200703-200812

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12590-B0iZRE152..D201004-201311

DK.GRAY,TRIM1#

main58905-12600-E4iZRE15#..E,N201004-201005

GREGE,TRIM4#

main58905-12601-E4iZRE15#..E,N201006-201304

GREGE,TRIM4#

main58905-12610-B4supersedes 58905-12600-B7iZRE152..N200703-200812

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12100iZRE152..D200703-200812

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iZRE152..D200703-200812

58910CBOX ASSY, CONSOLE, REAR

main58910-12400-B0iZRE152200703-200707

DK.GRAY,TRIM1#

main58910-12400-E0iZRE152..N200703-200707

GREGE,TRIM4#

main58910-12401-B0iZRE152200708-200812

DK.GRAY,TRIM1#

main58910-12401-E0iZRE152..N200708-200812

GREGE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iZRE152..D200812-201004

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12160iZRE152200703-200812

7404

9015950311

main90159-50311

9046710203

main90467-10203

9046805135

main90468-05135

9167380616

main91673-80616

91673A0816

main91673-A0816

9356054012

main93560-54012

9356855014

main93568-55014

19 parts on this diagram · 1 diagram in section
