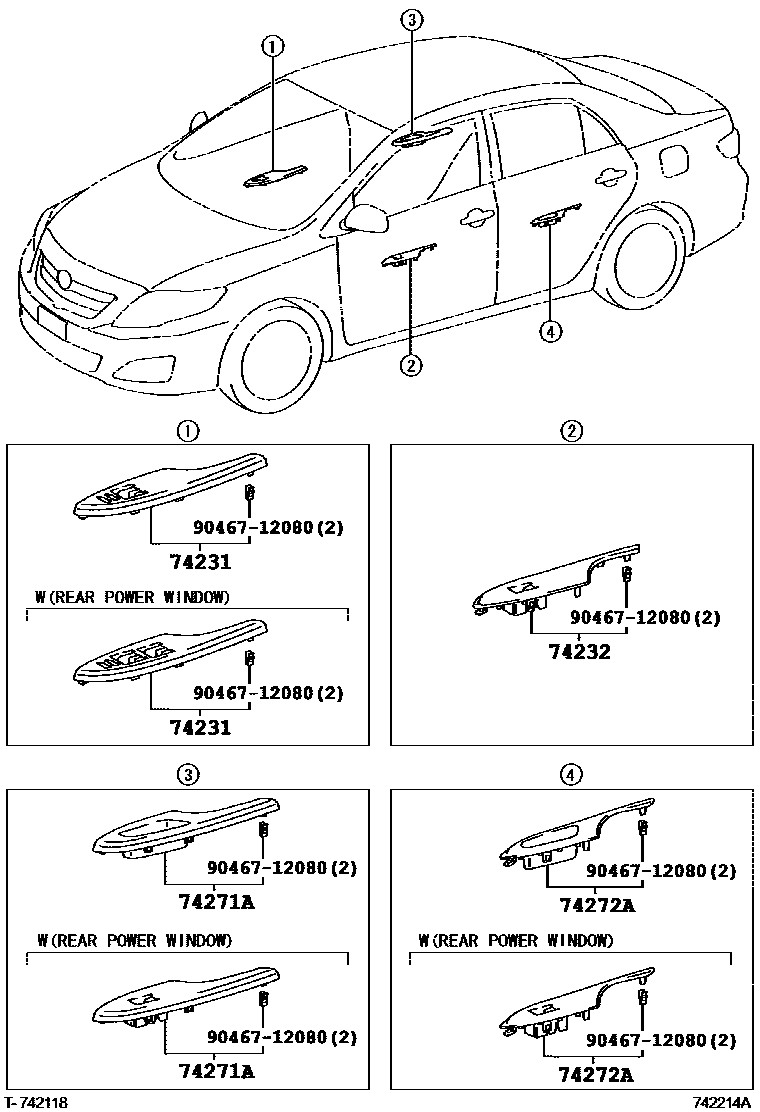

Toyota COROLLA SED — ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12830-B0i200812-201004

SILVER,TRIM1#,4#

main74231-12B80-B0i201004-201311

ORNAMENT SILVER,TRIM1#,4#

main74231-12A20-B0supersedes 74231-12A30-B0i200703-200812

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12640-B0i200812-201004

SILVER,TRIM1#,4#

main74232-12720-B0i200812-201004

DK.GRAY,TRIM1#

main74232-12860-B0i201004-201311

ORNAMENT SILVER,TRIM1#,4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12230-B0i200703-200812

SILVER,TRIM1#,4#

main74271-12390-B0i201004-201311

ORNAMENT SILVER,TRIM1#,4#

main74271-12290-B0supersedes 74271-12300-B0i200703-200812

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12230-B0i200703-200812

SILVER,TRIM1#,4#

main74272-12400-B0i201004-201311

ORNAMENT SILVER,TRIM1#,4#

main74272-12290-B0supersedes 74272-12300-B0i201004-201311

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#

9046712080

main90467-12080

5 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota COROLLA SED

This section contains 12 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA SED. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH, VISOR ASSY, RH.
