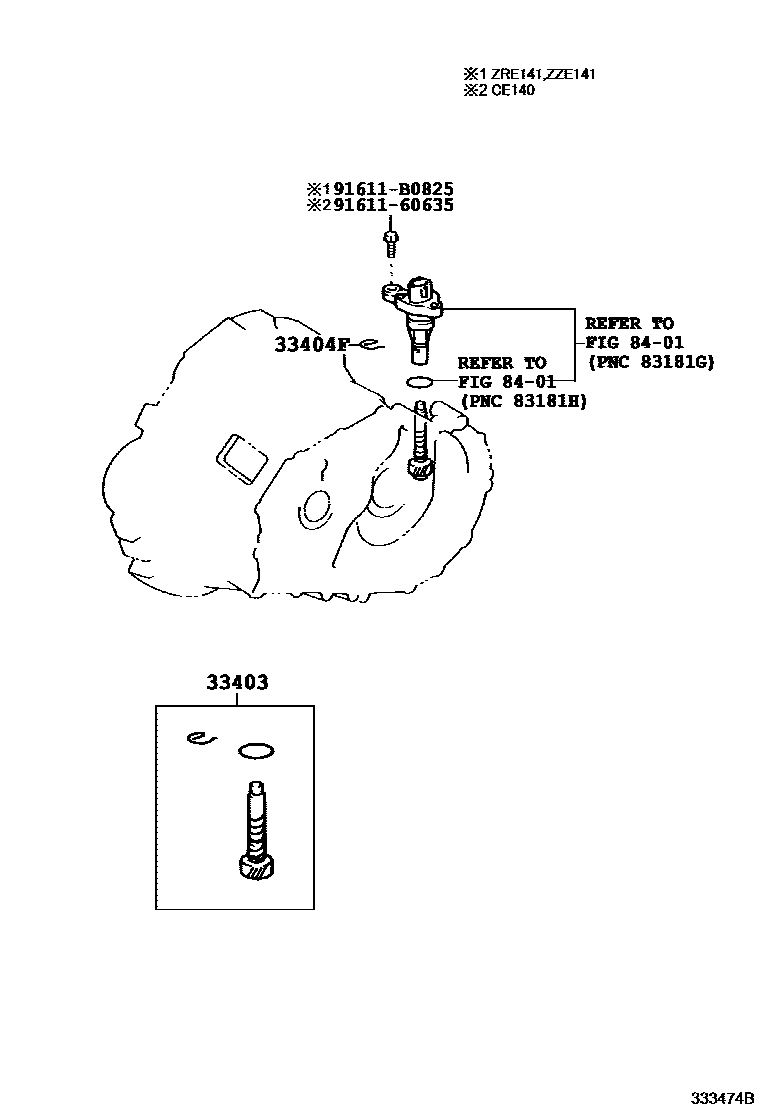

Toyota COROLLA SED/WG — SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29395i200708

N=29,MARK 29:35

main33403-29565i200708-201007

N=26,MARK 26:32

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i200708-201007

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9161160635

main91611-60635

91611B0825

main91611-B0825

5 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota COROLLA SED/WG

This section contains 5 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota COROLLA SED/WG. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM), CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE), SWITCH & RELAY & COMPUTER.
