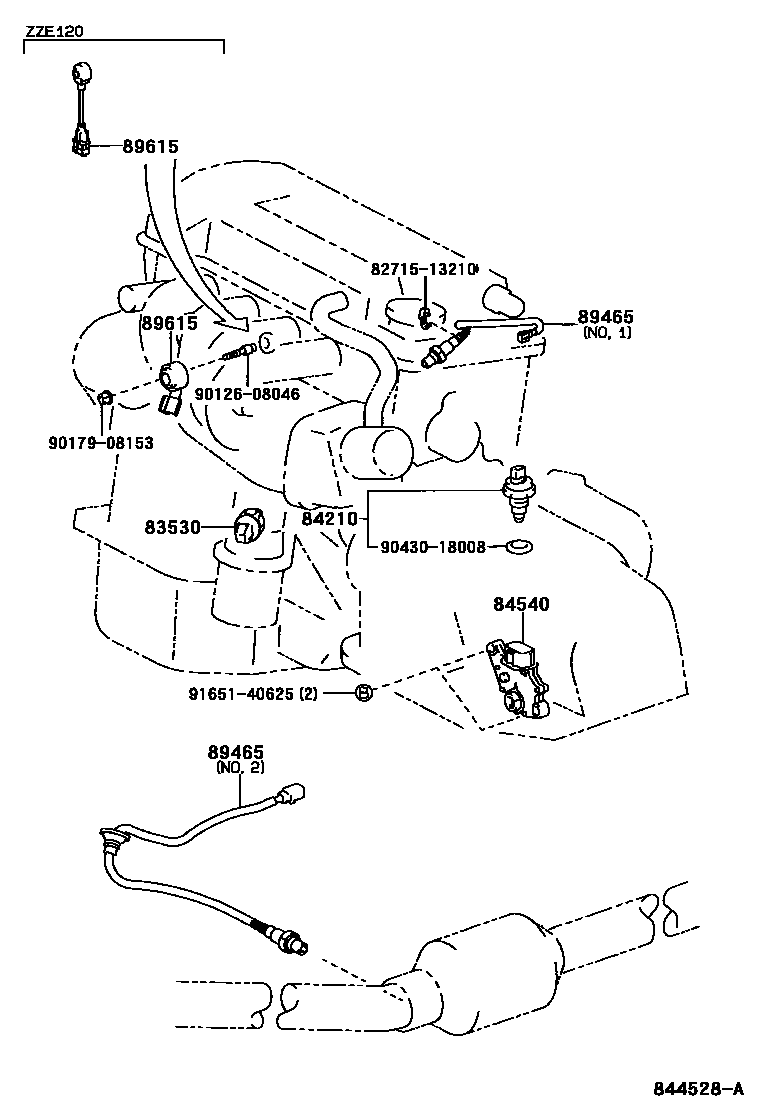

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZZE12#..JPP200110-200405

DENSO

main83530-60010iCDE120..JPP200110-200405

main83530-60010iNDE120..JPP200408

DENSO

main83530-60020iZZE12#..JPP200110-200405

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNDE120,ZZE12#..JPP..5F200110-200405

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12230iZZE121..JPP..4FC200110-200405

sub84540-32110

main84540-48010iZZE121..JPP..4FC200405

89465SENSOR, OXYGEN

main89465-02060iZZE120..JPP200110-200405

NO.1

main89465-02070iZZE120..JPP200110-200405

NO.2

main89465-02140iZZE120..JPP200405

NO.1

main89465-02180iZZE120..JPP200405

NO.2

main89465-12750iZZE121..JPP200405

NO.1

main89465-12760iZZE121..JPP200405

NO.2

main89465-13030iZZE121..JPP200110-200405

NO.1

main89465-13040iZZE121..JPP200110-200405

NO.2

89615SENSOR, KNOCK CONTROL

main89615-02010iZZE120..JPP200110-200405

main89615-20090iZZE121..JPP200110-200405

8271513210BRACKET,WIRING HARNESS CLAMP

main82715-13210

9012608046

main90126-08046

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

10 parts on this diagram · 17 diagrams in section
