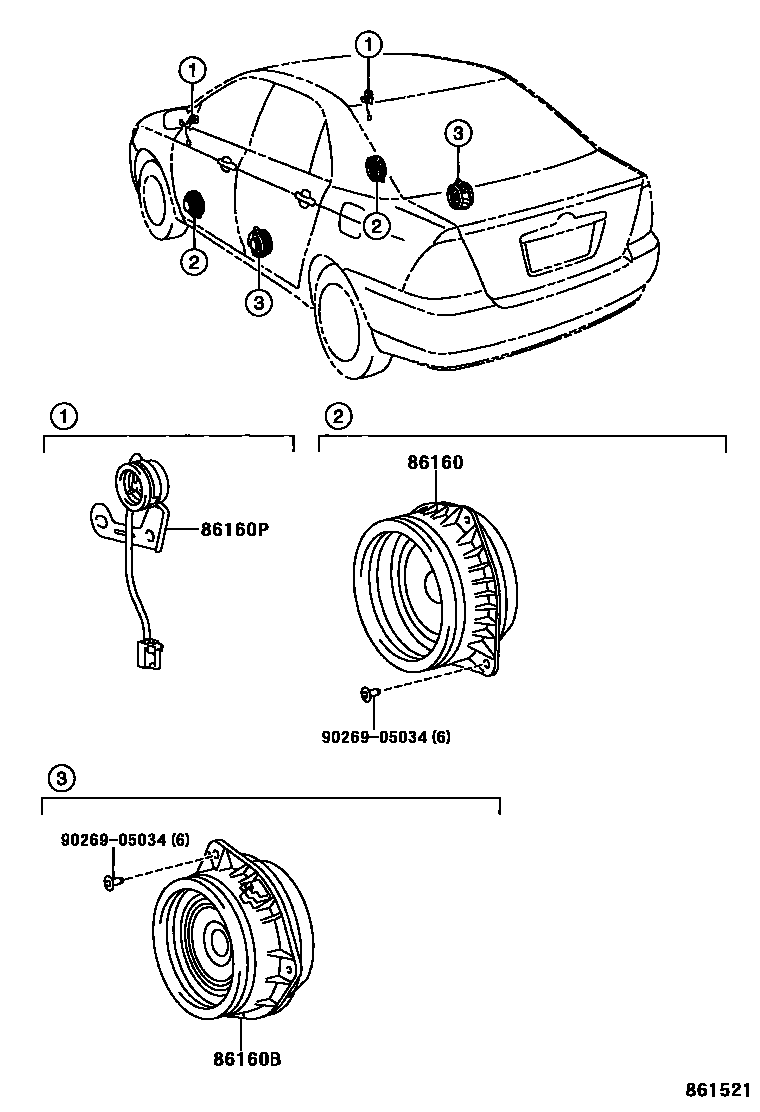

Toyota COROLLA SED/WG (JPP) — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-1A080iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200110-200209

sub86160-44120

main86160-44120iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200209-200303

sub86160-68090

main86160-68090iZZE12#..JPP..SED200303-200405

86160BSPEAKER ASSY, REAR

main86160-13080iNDE120,ZZE12#..JPP200303-200405

main86160-1A110iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200110-200209

sub86160-44130

main86160-44130iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200209-200303

86160PSPEAKER ASSY, FRONT NO.2

main86160-1A090iCDE120,ZZE12#..JPP..WG..SOL200110-200405

RH

main86160-1A100iZZE12#..JPP..SED..SOL200110-200405

LH

9026905034

main90269-05034

4 parts on this diagram · 1 diagram in section
