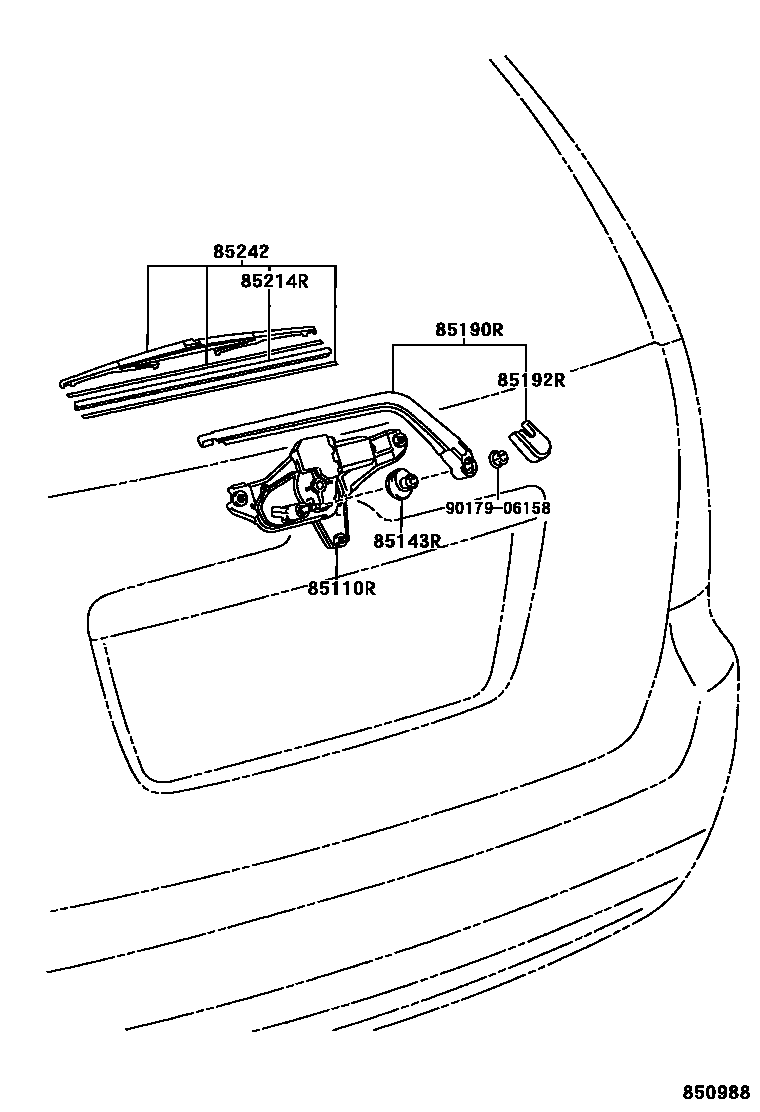

Toyota COROLLA SED/WG (JPP) — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-13120iCDE120,ZZE12#..JPP..WG200110-200405

85143RGROMMET, REAR WIPER MOTOR

main85143-13070iCDE120,ZZE12#..JPP..WG200110-200209

main85143-52030iCDE120,ZZE12#..JPP..WG200209-200405

85190RARM ASSY, REAR WIPER

main85241-28070iCDE120,ZZE12#..JPP..WG200110-200405

85192RCOVER, REAR WIPER ARM

main85292-28030iCDE120,ZZE12#..JPP..WG200110-200405

85214RRUBBER, REAR WIPER

main85214-30280iCDE120,ZZE12#..JPP..WG200110-200405

85242BLADE, RR WIPER

main85242-63010iCDE120,ZZE12#..JPP..WG200110-200405

9017906158

main90179-06158

7 parts on this diagram · 1 diagram in section
