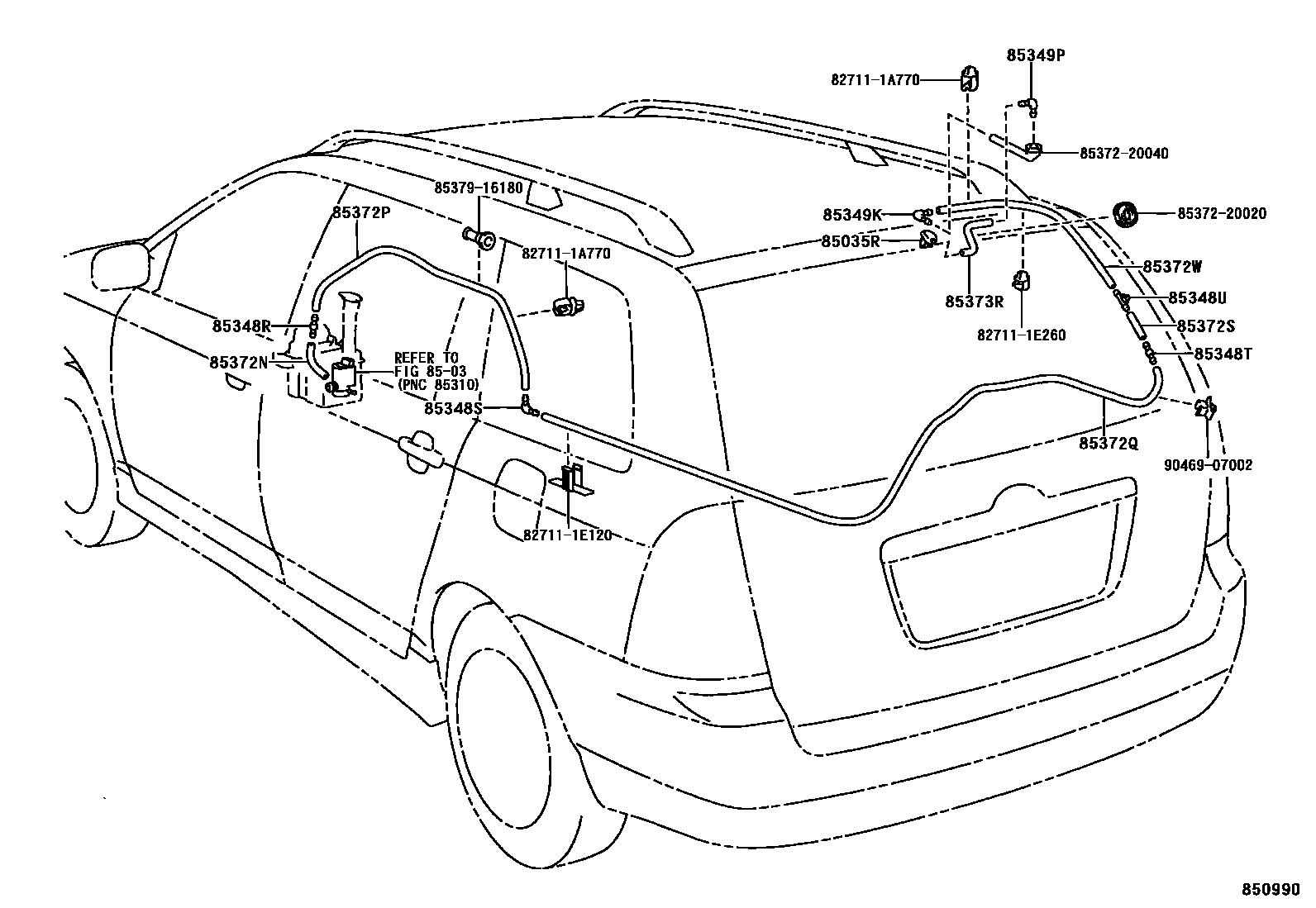

Toyota COROLLA SED/WG (JPP) — REAR WASHER

8503

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-13010iCDE120,ZZE12#..JPP..WG200110-200405

sub85391-44040

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-10260iCDE120,ZZE12#..JPP..WG200110-200405

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iCDE120,ZZE12#..JPP..WG200110-200405

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-10260iCDE120,ZZE12#..JPP..WG200110-200405

85348UJOINT, REAR WASHER HOSE, NO.3

main85375-20800iCDE120,ZZE12#..JPP..WG200110-200405

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iCDE120,ZZE12#..JPP..WG200110-200405

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-20200iCDE120,ZZE12#..JPP..WG200110-200405

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iCDE120,ZZE12#..JPP..WG200110-200405

L=1450(*H,L=70)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iCDE120,ZZE12#..JPP..WG200110-200405

L=1800(*H,L=1470)

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33589iCDE120,ZZE12#..JPP..WG200110-200405

L=3300(*H,L=3090)

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iCDE120,ZZE12#..JPP..WG200110-200405

L=1450(*H,L=40)

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90446-07001iCDE120,ZZE12#..JPP..WG200110-200405

L=1800(*H,L=640)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iCDE120,ZZE12#..JPP..WG200110-200405

L=1450(*H,L=230)

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

827111E120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E120

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8537916180JOINT

main85379-16180

9046907002

main90469-07002

21 parts on this diagram · 1 diagram in section
