Toyota COROLLA SED/WG (JPP) — INJECTION PUMP BODY

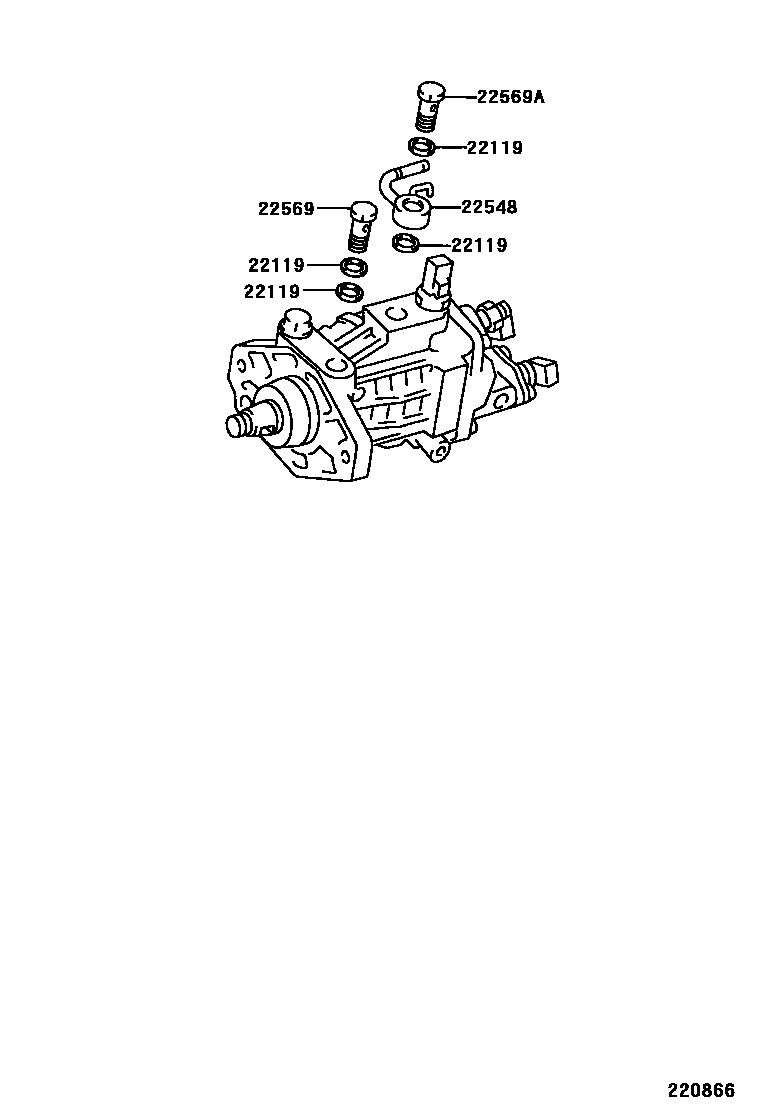

Parts diagram

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109i200110-200405

22548NIPPLE, SWIVEL

main22548-27010i200110-200405

22569SCREW, OVERFLOW

main22569-30010i200110-200405

22569ASCREW, INJECTION PUMP

main22569-1C400i200110-200405

4 parts on this diagram · 1 diagram in section
