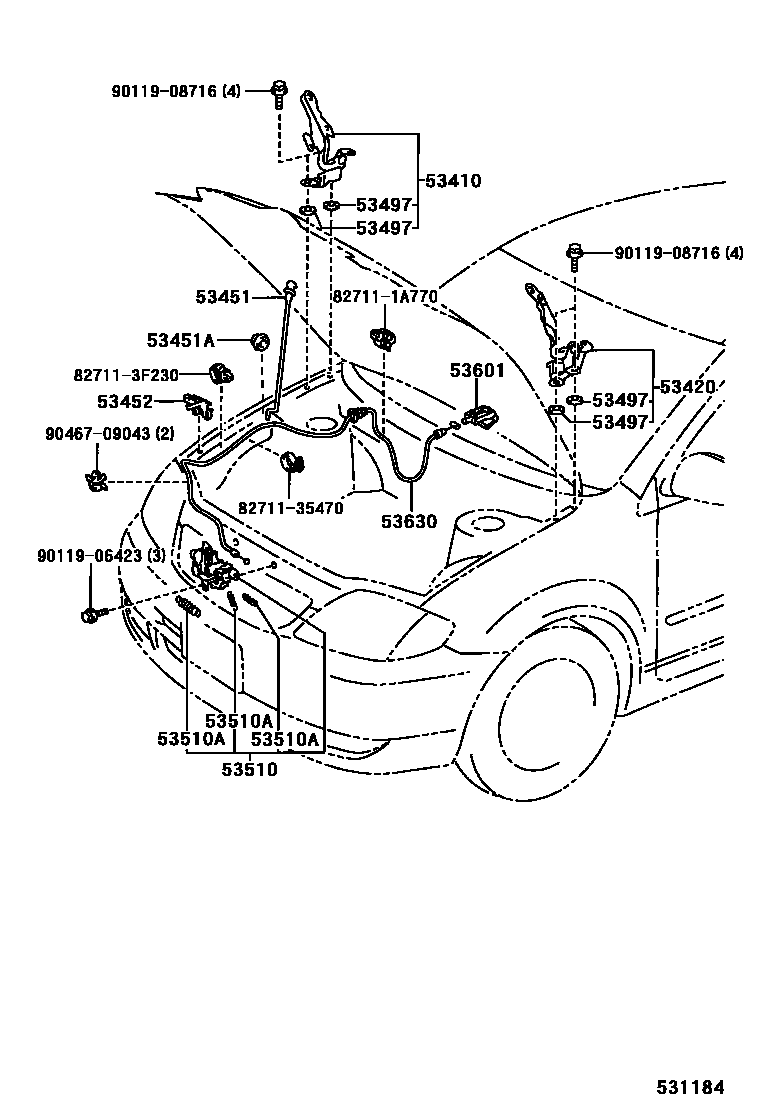

Toyota COROLLA SED/WG (JPP) — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-12410iNDE120,ZZE12#..JPP200110-200405

53420HINGE ASSY, HOOD, LH

main53420-12330iCDE120,ZZE12#..JPP200110-200405

53451ROD, HOOD SUPPORT

main53440-12010iZZE12#..JPP..SED200110-200301

sub53440-12040

main53440-12030iNDE120,ZZE12#..JPP200110-200405

main53440-12040iNDE120,ZZE12#..JPP200301-200508

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iCDE120,ZZE12#..JPP200110-200405

53452HOLDER, HOOD STAY

main53452-12040iCDE120,ZZE12#..JPP200110-200405

53497PAD, HOOD HINGE, NO.1

main53497-12050iCDE120,ZZE12#..JPP200110-200405

T=1.0

sub53497-42010

main53497-20070iCDE120,ZZE12#..JPP200110-200405

T=2.0

main53497-42010iNDE120,ZZE12#..JPP200405

T=0.5

53510LOCK ASSY, HOOD

main53510-12690iCDE120,ZZE121..JPP..RHD200110-200209

sub53510-12780

main53510-12700iCDE120,ZZE12#..JPP..LHD200110-200209

sub53510-12790

main53510-12780iZZE12#..JPP..RHD200209-200405

main53510-12790iNDE120,ZZE12#..JPP..LHD200209-200405

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052iCDE120,ZZE121..JPP..RHD200110-200209

WD=0.9,CW=20.75

main90506-09055iNDE120,ZZE12#..JPP200209-200405

WD=0.9,CW=21

main90506-12063iCDE120,ZZE12#..JPP200209-200405

WD=1.2,CW=8.5

main90506-18067iCDE120,ZZE12#..JPP200209-200405

WD=1.8,CW=13

main90905-06005iCDE120,ZZE12#..JPP..LHD200110-200209

WD=0.9,CW=21.25

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iCDE120,ZZE12#..JPP200110-200405

DK.GRAY,TRIM1#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12510iCDE120,ZZE12#..JPP200110-200405

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

8271135470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35470

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230

9011906423

main90119-06423

9011908716

main90119-08716

9046709043

main90467-09043

16 parts on this diagram · 2 diagrams in section
