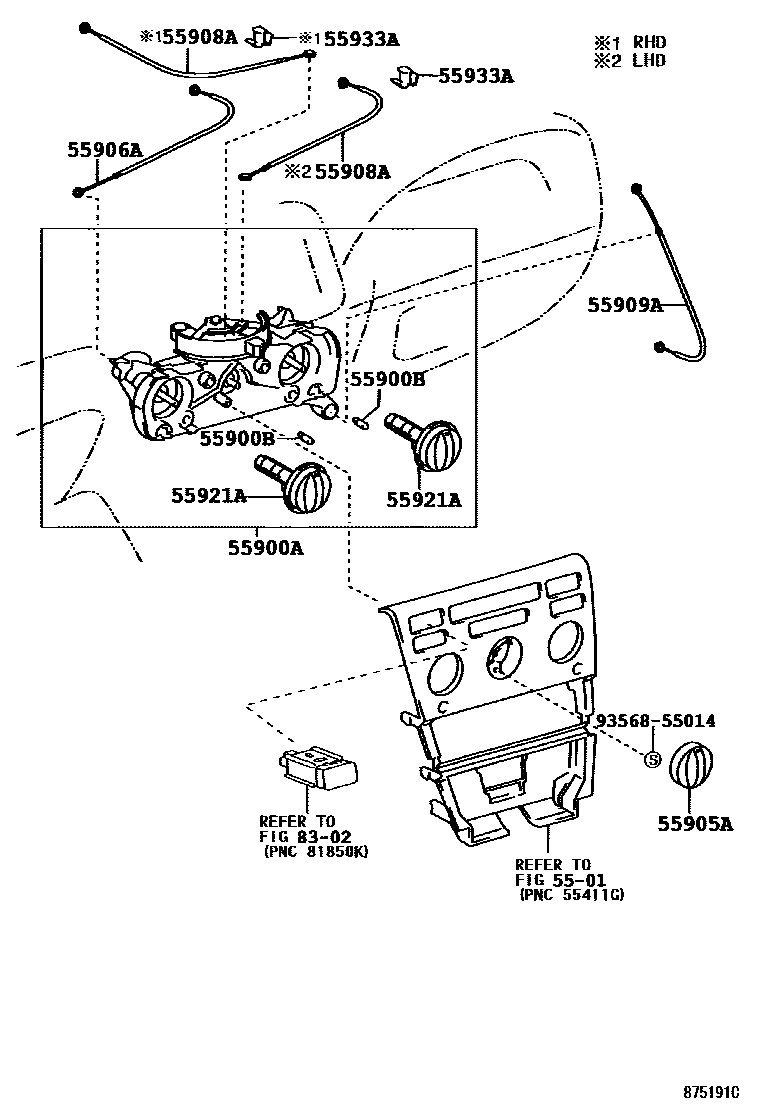

Toyota COROLLA SED/WG (JPP) — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1CONTROL PANEL 0003 1CONTROL PANEL--PUSH TYPE 0004 1AIR DUCT 0005 1AIR DUCT 0006 1SENSER

5501

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-02140iZZE12#..JPP..TERRA200405-200409

sub55900-02141

main55900-02141iNDE120,ZZE12#..JPP..TERRA200409

main55900-1A060iCDE120,ZZE12#..JPP200110-200210

main55900-1A100iCDE120,ZZE12#..JPP200210-200404

sub55900-1A101

55900BBULB, AIR CONDITIONER CONTROL

main90069-98005iNDE120,ZZE12#..JPP..TERRA200405-200409

sub90981-WB011

main90981-11040iZZE12#..JPP..SED200110-200405

12V 2W

main90981-WB011iNDE120,ZZE12#..JPP..TERRA200409

55905AKNOB, HEATER CONTROL

main55905-02270iNDE120,ZZE12#..JPP..TERRA200405

NO.2

main55905-0F030iNDE120,ZZE12#..JPP..TERRA200405

NO.1

main55905-12710iCDE120,ZZE12#..JPP200110-200210

main55905-12740iCDE120,ZZE12#..JPP200210-200404

sub55905-12741

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12400iNDE120,ZZE12#..JPP..LHD..TERRA200110-200405

sub55906-YK010

main55906-12410iCDE120,ZZE121..JPP..RHD200110-200405

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-12320iZZE12#..JPP..SED200110-200405

main55908-12330iCDE120,ZZE121..JPP..RHD200110-200405

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12320iCDE120,ZZE12#..JPP..WG200110-200405

55921ARETAINER, HEATER CONTROL

main55921-12150iCDE120,ZZE12#..JPP200110-200210

main55921-12160iCDE120,ZZE12#..JPP200210-200404

sub55921-12161

55933ACLAMP, HEATER CONTROL CABLE

main55933-52010iCDE120,ZZE121..JPP..RHD200110-200405

8302

9356855014

main93568-55014

11 parts on this diagram · 6 diagrams in section
