Toyota COROLLA SED/WG (JPP) — FRONT DRIVE SHAFT

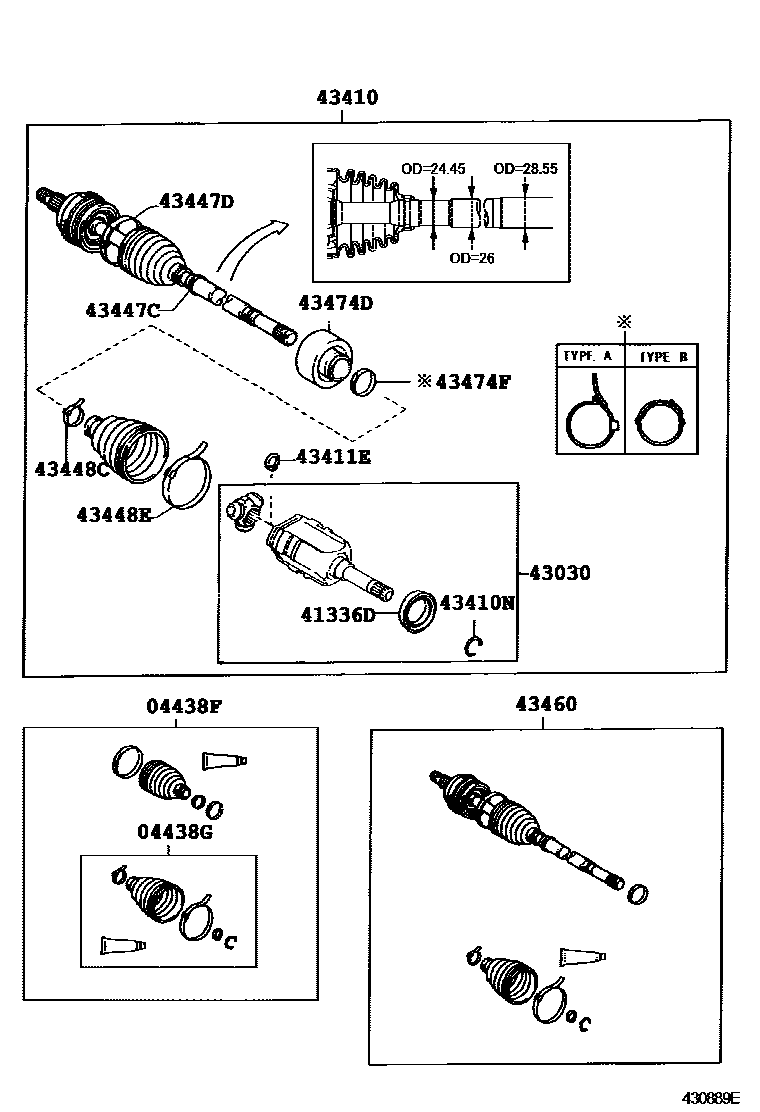

Parts diagram
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
main04427-05060i200501-200610
GKN
main04438-02091i200408-200610
main04438-12610i200110-200405
sub04428-12260
main04438-12610i200405-200610
TOYOTA
sub04428-12260
main04438-28051i200110-200207
sub04438-28052
main04438-28052i200207-200405
sub04428-42070
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
main04438-02111i200501-200610
GKN
main04438-02121i200408-200610
main04438-28040i200110-200207
sub04438-28041
main04438-28041i200207-200405
sub04438-42180
main04438-32231i200405-200610
TOYOTA
sub04438-32290
main04438-52230i200110-200405
sub04437-12400
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
main41336-02040i200408
main41336-05010i200501
GKN
main41336-12010i200501
TOYOTA
main41336-12010i200110-200501
main41336-12020i200110-200405
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
main43030-02050i200408
main43030-28010i200110-200207
sub43030-28011
main43030-28011i200208-200405
main43040-02030i200501
GKN
main43403-12040i200501
TOYOTA
main43403-12040i200110-200501
43410SHAFT ASSY, FRONT DRIVE, RH
main43410-02240i200501
GKN
main43410-02250i200408
sub43410-02251
main43410-12660i200110-200501
main43410-12660i200501
TOYOTA
main43410-13050i200110-200405
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
main90080-52054i200408
main90080-52056i200501
GKN
main90520-38015i200110-200405
main90521-26004i200110-200501
main90521-26004i200501
TOYOTA
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
main43425-02010i200408
main43425-28010i200110-200405
main90080-52093i200501
GKN
main90520-22005i200110-200501
main90520-22005i200501
TOYOTA
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
main42345-02110i200408
main42345-05070i200501
GKN
main42345-12150i200110-200405
sub42345-12190
main42345-12150i200501
TOYOTA
sub42345-12190
main42345-20040i200110-200405
sub42345-42100
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
main42345-02100i200408
main42345-05080i200501
GKN
main42345-12140i200110-200405
sub42345-12180
main42345-12140i200501
TOYOTA
sub42345-12180
main42345-28020i200110-200405
sub42345-42090
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
main42345-02040i200408
main42345-05040i200501
GKN
main42345-42010i200204-200405
TYPE B:REFER TO ILLUSTRATION
main90949-01078i200110-200501
main90949-01078i200501
TOYOTA
main90949-01559i200110-200405
TYPE A:REFER TO ILLUSTRATION
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
main42345-05030i200501
GKN
main42345-05100i200408
main42345-12160i200110-200501
main42345-12160i200501
TOYOTA
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
main43460-09611i200408-200610
main43460-09G40i200501-200610
GKN
main43460-49125i200110-200207
sub43460-49126
main43460-49126i200207-200405
main43460-80001i200405-200610
TOYOTA
main43460-80001i200110-200405
43474DDAMPER, FRONT DRIVE SHAFT, RH
main43474-02080i200501
GKN
main43474-02110i200408
main43474-12120i200501
TOYOTA
sub43474-12210
main43474-12120i200110-200501
sub43474-12210
main43474-44010i200110-200405
sub43474-44020
43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
main42345-05220i200501
GKN
main42345-14010i200110-200405
TYPE B:REFER TO ILLUSTRATION
main42345-14010i200405-200501
TYPE B:REFER ILLUST.
main42345-14010i200501
TYPE B, TOYOTA
main90949-01947i200110-200405
TYPE A:REFER TO ILLUSTRATION
main90949-01947i200405-200501
TYPE A:REFER ILLUST.
main90949-01947i200501
TYPE A, TOYOTA
