Toyota COROLLA SED/WG (JPP) — CLUTCH & RELEASE FORK

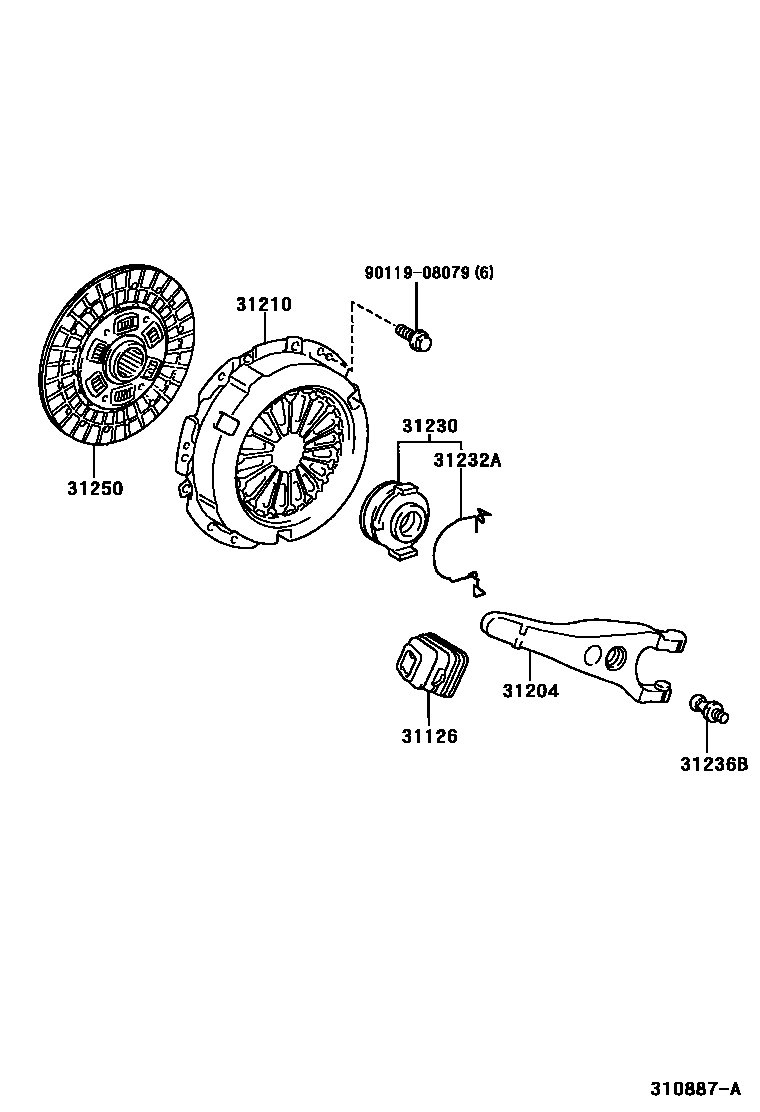

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-12051i200110-200405
main31126-20080i200110-200405
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-12050i200110-200405
main31204-17010i200110-200405
main31204-20130i200110-200301
sub31204-20131
main31204-20131i200301-200405
main31204-52010i200408
31210COVER ASSY, CLUTCH
main31210-12201i200110-200506
sub31210-52050
main31210-12210i200110-200607
sub31210-12280
main31210-12240i200110-200405
sub31210-12241
main31210-12250i200408-200601
sub31210-12251
main31210-12251i200602-200609
sub31210-12290
main31210-12280i200608
sub31210-12281
main31210-12290i200610
sub31210-12291
main31210-52050i200507-200602
sub31210-52051
main31210-52051i200603
sub31210-52052
31230BEARING ASSY, CLUTCH RELEASE
main31230-12180i200408
sub31230-12181
main31230-12191i200110-200405
main31230-20191i200110-200405
main31230-52010i200110-200505
sub31230-52011
main31230-52011i200505
31232ACLIP, RELEASE BEARING HUB
main31232-12070i200110-200405
main31232-12080i200408
main31232-16031i200405
TYPE A:REFER ILLUST.
main31232-16031i200110-200405
TYPE A:REFER TO ILLUSTRATION
main31232-20031i200110-200405
main31232-52010i200110-200405
TYPE B:REFER TO ILLUSTRATION
main31232-52010i200405
TYPE B:REFER ILLUST.
31236BSUPPORT, RELEASE FORK
main31236-12011i200110-200405
main31236-12020i200110-200405
main31236-20080i200110-200405
31250DISC ASSY, CLUTCH
main31250-0D060i200310-200405
main31250-12391i200110-200206
sub31250-12392
main31250-12392i200206-200511
sub31250-12393
main31250-12410i200110-200405
sub31250-12411
main31250-12460i200408
sub31250-52110
main31250-12530i200512
sub31250-52090
main31250-12550i200512
main31250-20280i200110-200511
sub31250-12570
9011908079
main90119-08079

8 parts on this diagram · 4 diagrams in section
